Door window lifting mechanism front for BMW 3 Series E46 M3 (2002)

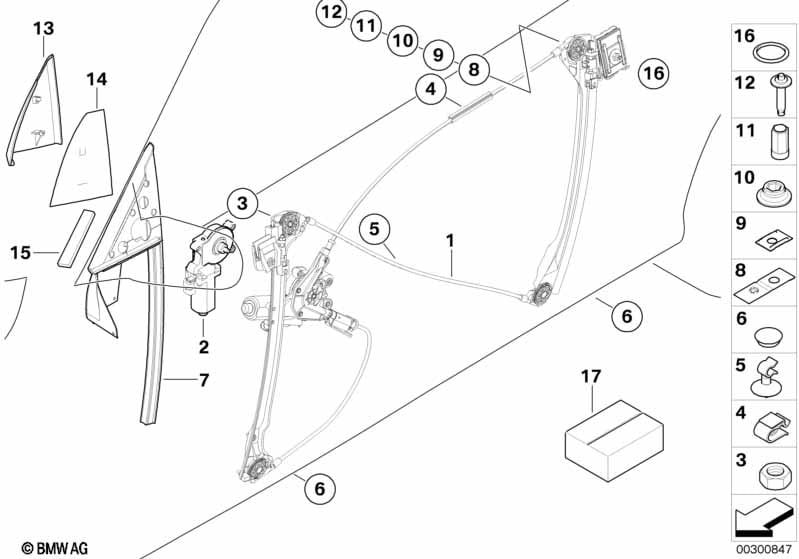

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.window lifter front left | 1 | 51338229105 | $140.30 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sound insulating door front left | 1 | 51488204283 | $35.43 | Shop at ECS Tuning | |||||

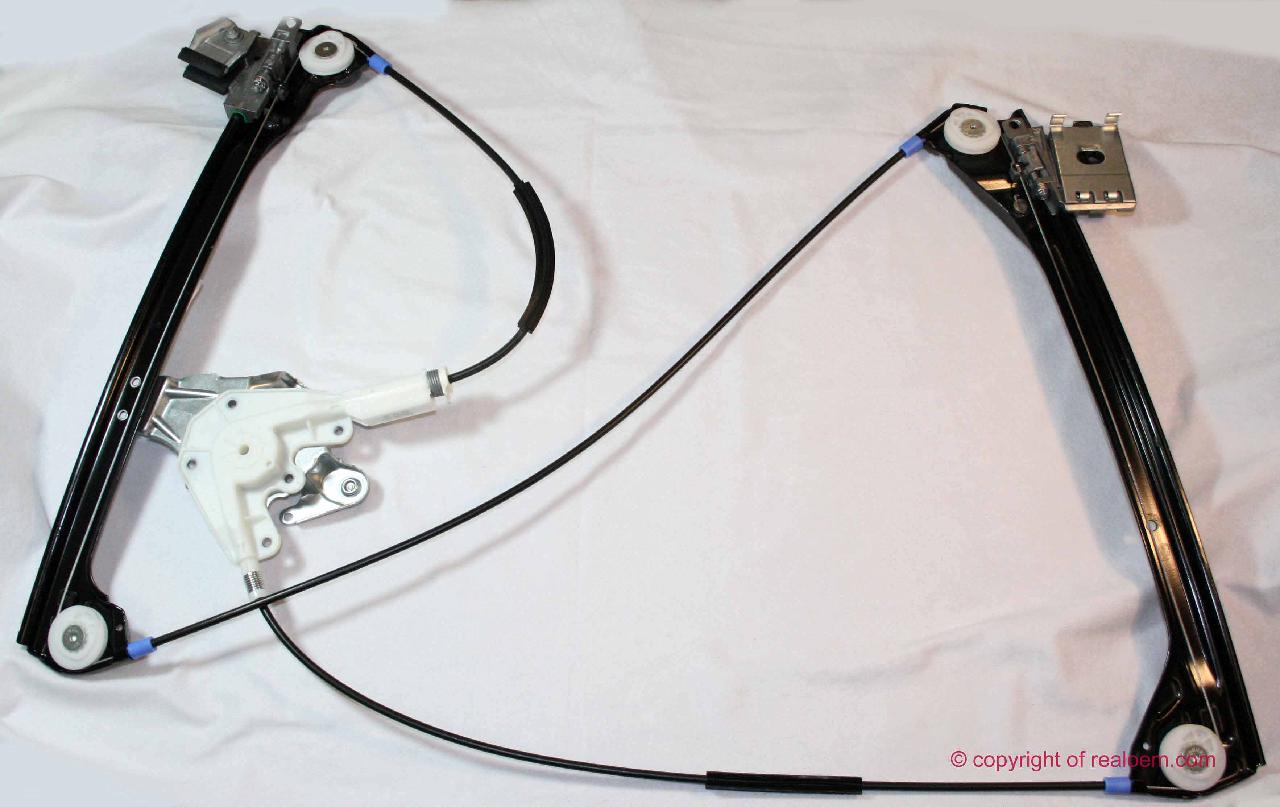

| 01 | Electr.window lifter front right | 1 | 51338229106 | $140.30 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Sound insulating door front right | 1 | 51488204284 | $35.43 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 02 | Drive for window lifter | 2-POLIG | 1 | 67628362063 | $147.05 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 02 | Drive for window lifter | 2-POLIG | 1 | 67628362064 | $147.05 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M6 | 10 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||

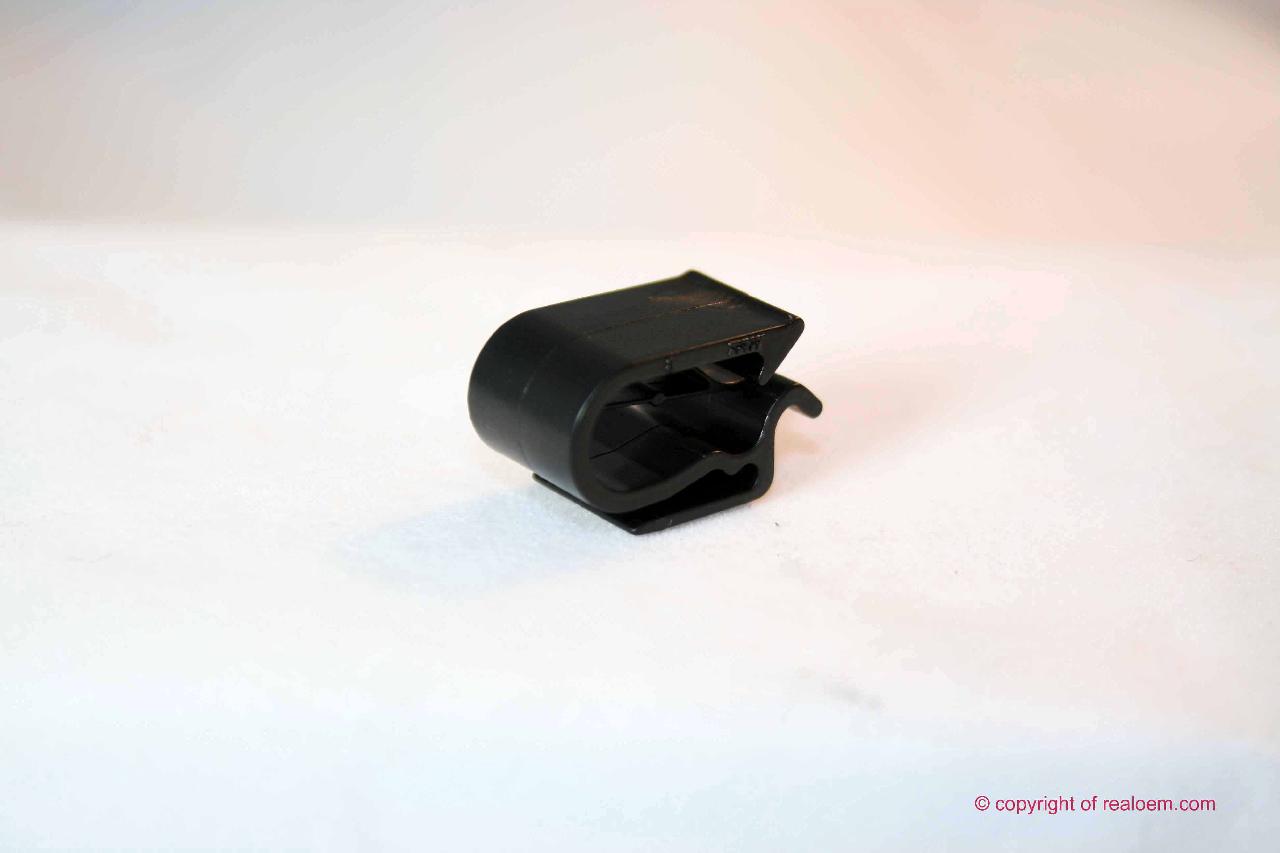

| 04 | Cable holder | D=5MM | 2 | 12/2002 | 61131379079 | $0.48 | Shop at ECS Tuning | |||
| 05 | Cable holder | 2 | 07147075057 | $1.28 | Shop at ECS Tuning | |||||
| 06 | Blind plug | D=15MM | 4 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Plug | D=4,00 MM | 4 | 51718195651 | $0.26 | Shop at ECS Tuning | ||||
| 07 | Window guide, left front door | 1 | 51328194735 | $55.88 | Shop at ECS Tuning | |||||
| 07 | Window guide, right front door | 1 | 51328194736 | $55.88 | Shop at ECS Tuning | |||||
| 08 | Base | 2 | 51338238587 | $1.80 | Shop at ECS Tuning | |||||
| 09 | Clamp plate | 2 | 51338254128 | $1.83 | Shop at ECS Tuning | |||||
| 10 | Bush | 2 | 51338254135 | $3.00 | Shop at ECS Tuning | |||||
| 11 | Bush | 2 | 51338254625 | $0.80 | Shop at ECS Tuning | |||||
| 12 | ASA-Bolt | 2 | 51338238411 | $1.20 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cover, inner mirror triangle, left | 1 | 51328204175 | $9.07 | Shop at ECS Tuning | |||||
| 13 | Cover, mirror triangle, right | 1 | 51328204176 | $9.07 | Shop at ECS Tuning | |||||
| 14 | sealing | 2 | 51337044755 | $0.38 | Shop at ECS Tuning | |||||
| 15 | Sealing tape | 130MM | 2 | 05232155101 | $2.98 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | D=15,54 MM | 2 | 64508369241 | $1.25 | Shop at ECS Tuning | ||||
| 17 | Set, mounted parts, power window, front | VALUE PARTS | 2 | 51102311935 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
