Exterior trim / grill for BMW 3 Series E46 M3 (2002)

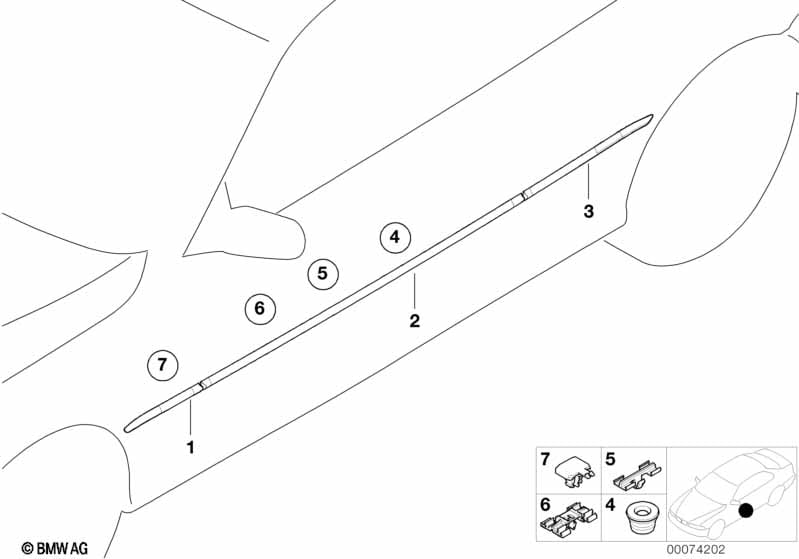

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Molding, fender, primed front left | M3 | 1 | 51137893677 | $22.78 | Shop at ECS Tuning | ||||
| 01 | Molding, fender, primed front right | M3 | 1 | 51137893678 | $22.78 | Shop at ECS Tuning | ||||
| 02 | Molding, door, primed left | M3 | 1 | 51137893681 | $45.55 | Shop at ECS Tuning | ||||
| 02 | Molding, door, primed right | M3 | 1 | 51137893682 | $45.55 | Shop at ECS Tuning | ||||
| 03 | Molding, fender, primed rear left | M3 | 1 | 51137893679 | $27.33 | Shop at ECS Tuning | ||||
| 03 | Molding, fender, primed rear right | M3 | 1 | 51137893680 | $27.33 | Shop at ECS Tuning | ||||

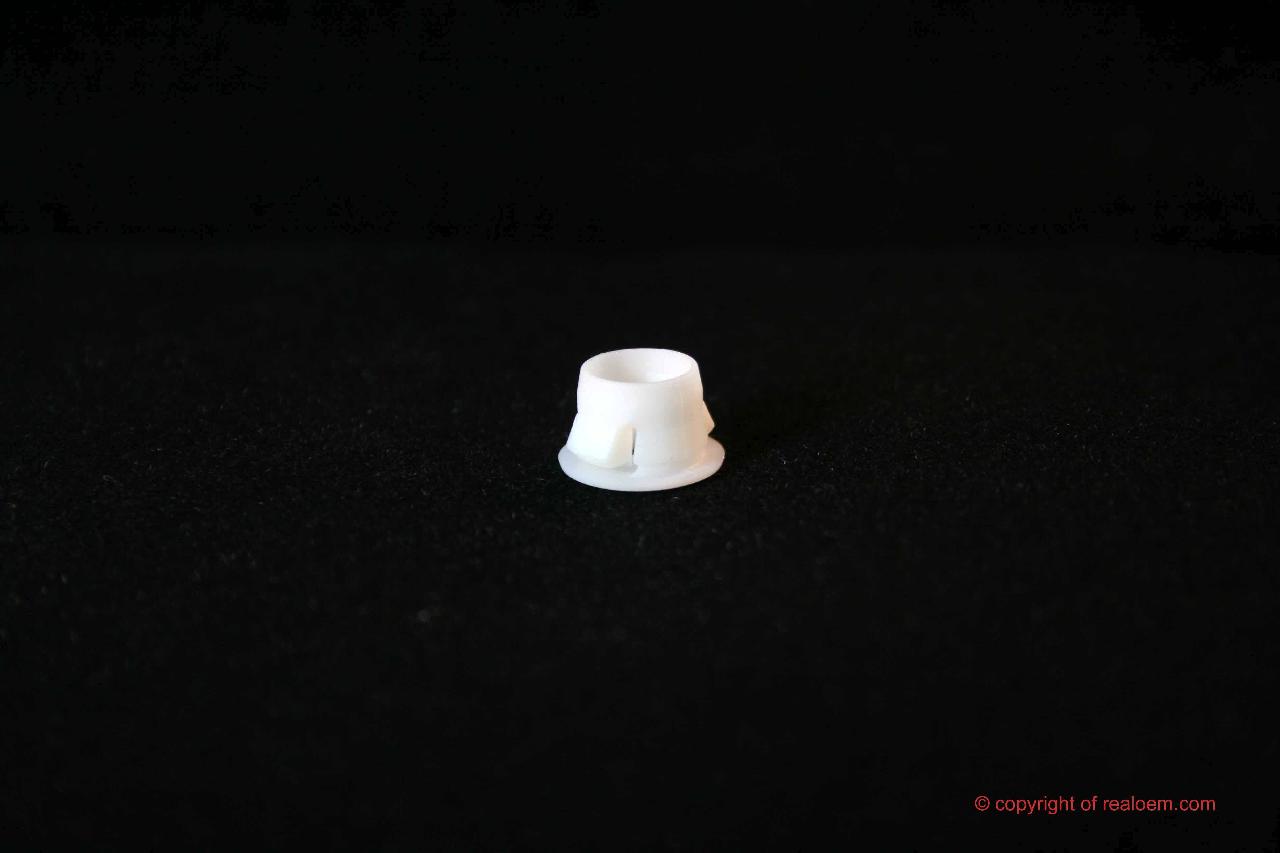

| 04 | Grommet | X | 51138250586 | $0.50 | Shop at ECS Tuning | |||||

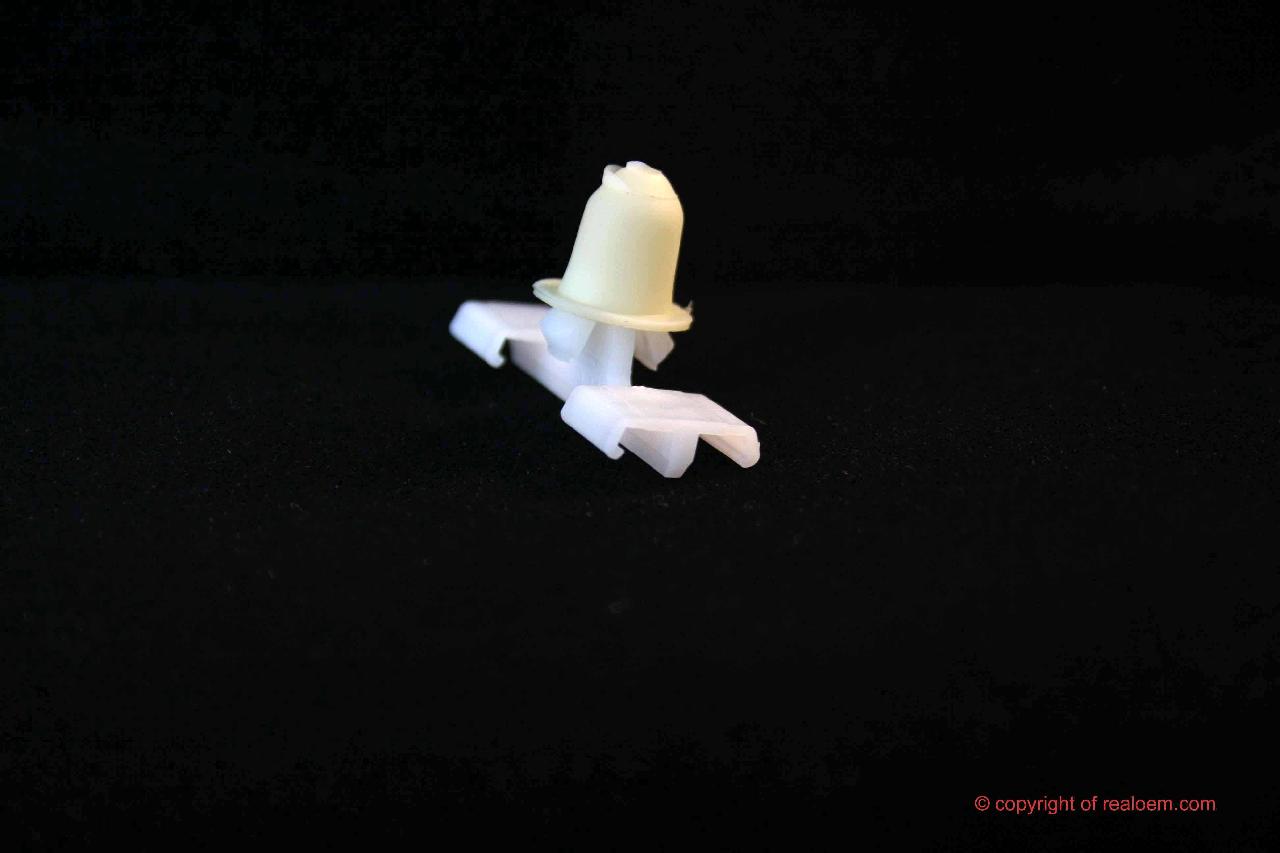

| 05 | Clamp | X | 51138250585 | $0.61 | Shop at ECS Tuning | |||||

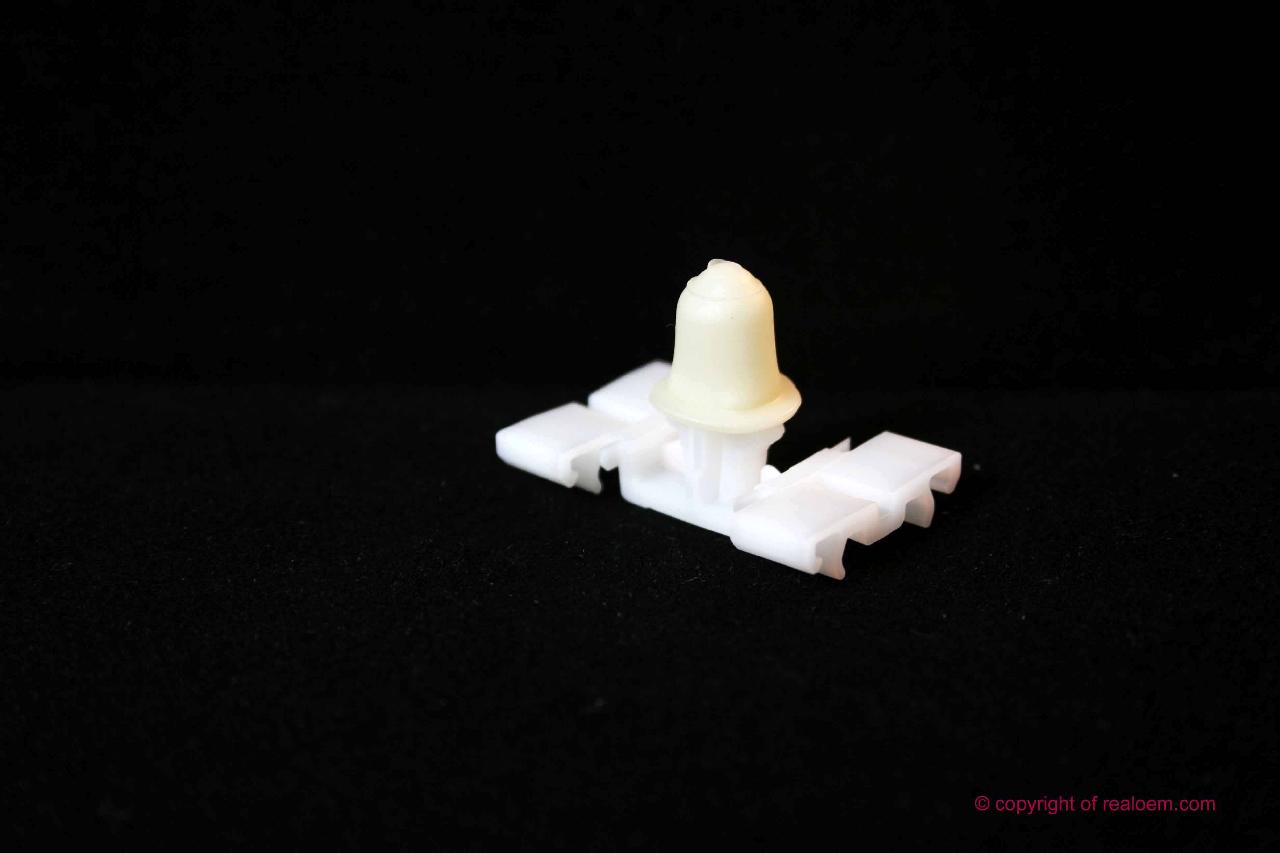

| 06 | Clamp | X | 51131960054 | $0.82 | Shop at ECS Tuning | |||||
| 07 | Clamp | M3 | 4 | 51137893437 | $0.69 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Exterior trim / grill?
- This technical diagram illustrates the Exterior trim / grill within the Vehicle trim group for the 3 Series E46 M3 produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Molding, fender, primed front left (Part #51137893677).
- Which models use the hardware listed in this Exterior trim / grill?
- The hardware and components featured in the Exterior trim / grill are specific to the 3 Series E46 M3 produced during 2002. These technical specifications ensure that parts like the Molding, fender, primed front left (51137893677) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exterior trim / grill assembly?
- Each item in the Exterior trim / grill corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Molding, fender, primed front left by locating its position on the schematic, which then links to the official BMW part number 51137893677 for the Vehicle trim section.
