Exterior trim / grill for BMW 3 Series E46 M3 (2002)
This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ETA/Liefertermin nicht vor 01. Aug. 2025 |
||||||||||

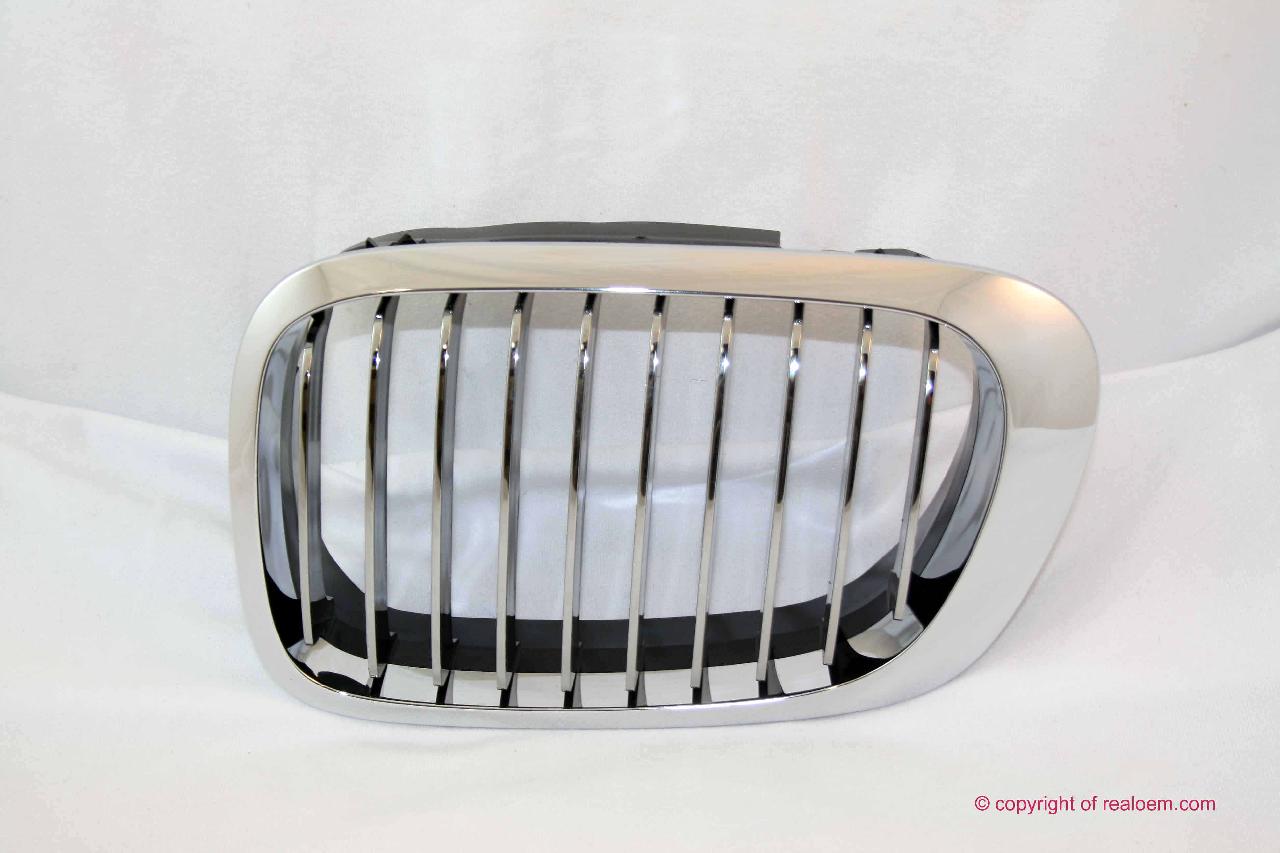

| 01 | Grille left | CHROM | 1 | 51138208685 | $64.00 | Shop at ECS Tuning | ||||

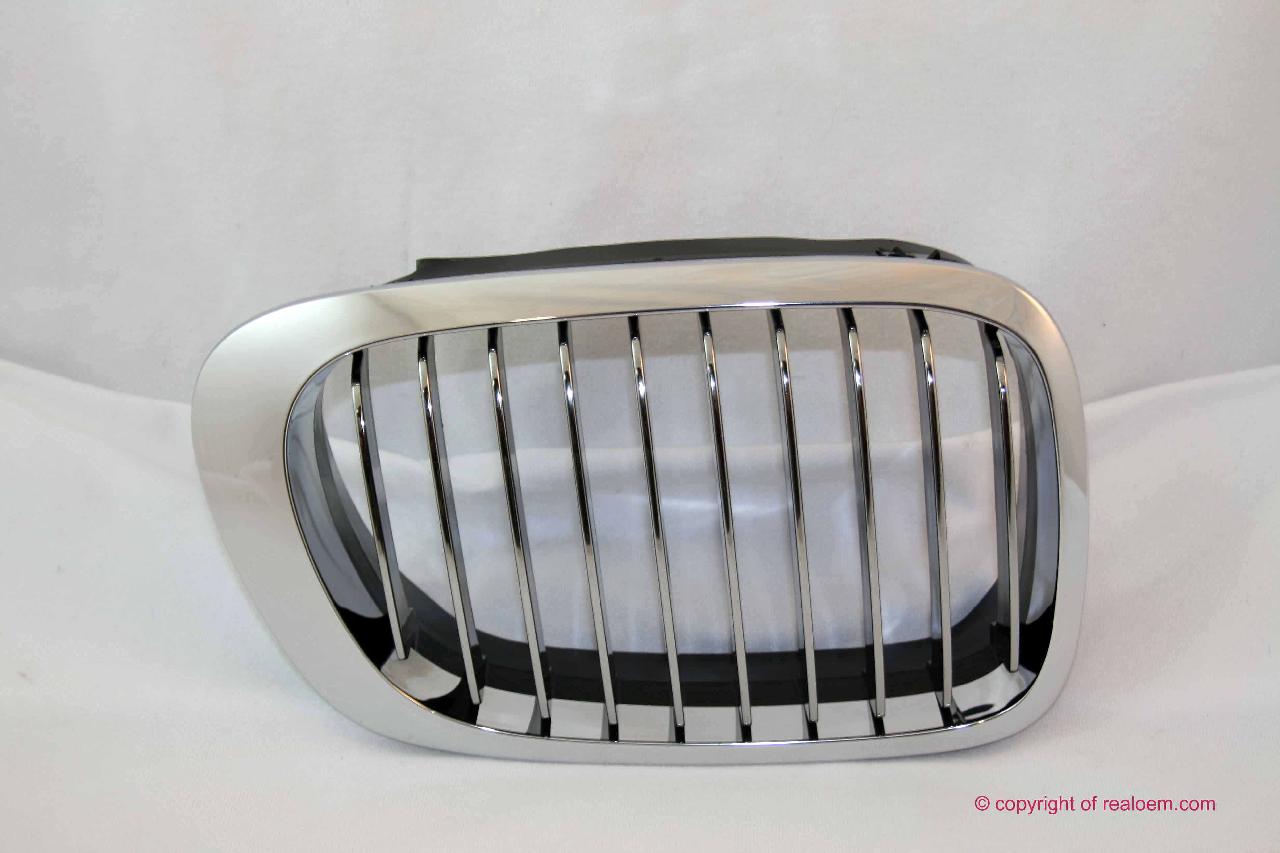

| 02 | Grille right | CHROM | 1 | 51138208686 | $64.00 | Shop at ECS Tuning | ||||

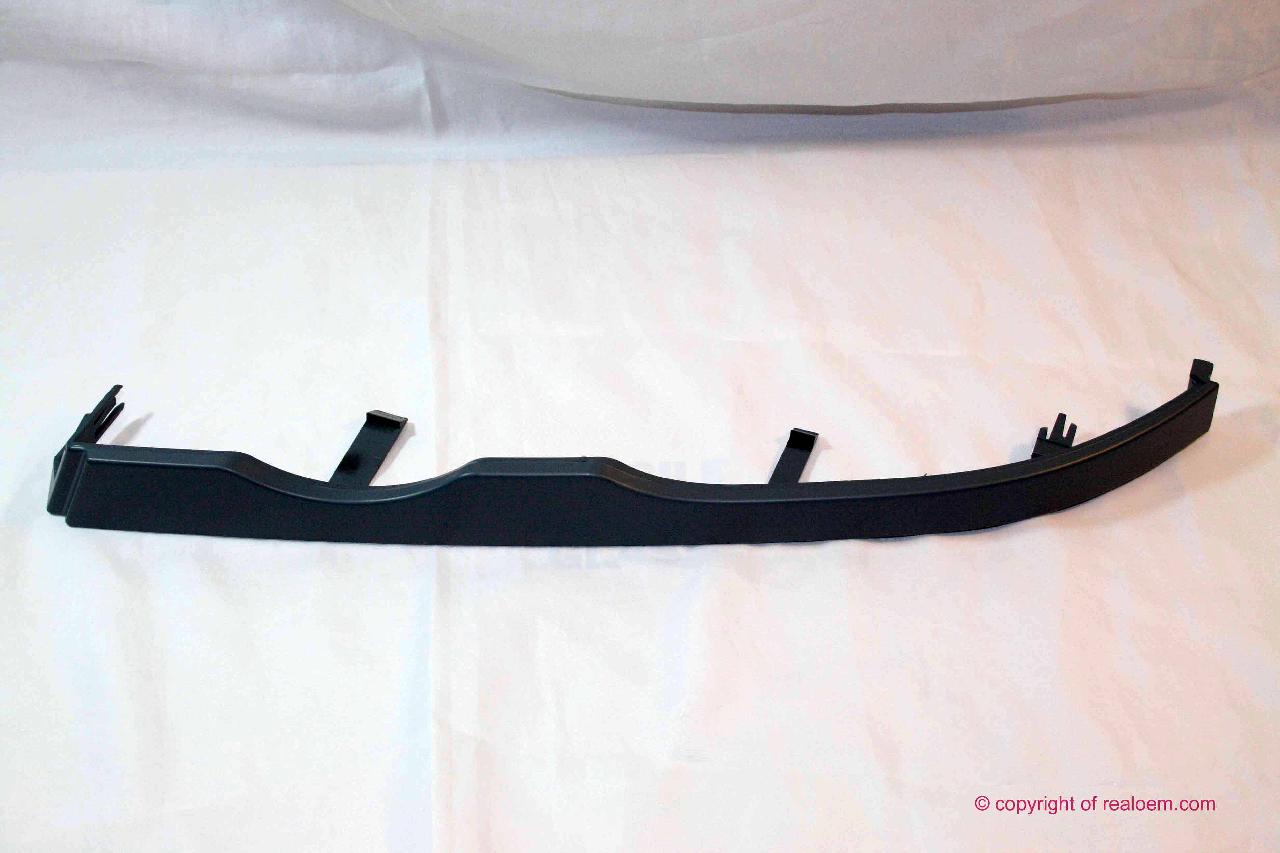

| 03 | Cover, primed, left | 1 | 51138208679 | $35.45 | Shop at ECS Tuning | |||||

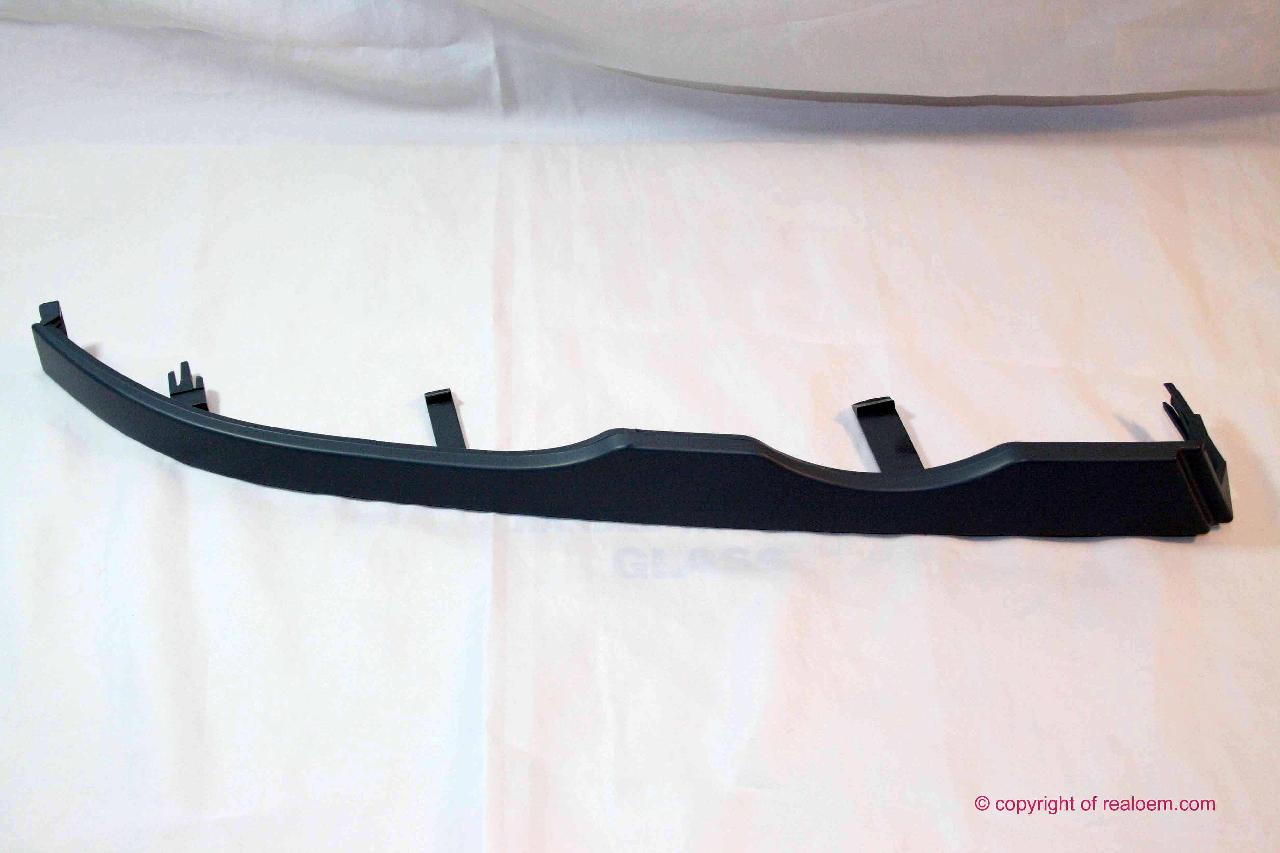

| 03 | Cover, primed, right | 1 | 51138208680 | $35.45 | Shop at ECS Tuning | |||||
| 03 | trim panel left, painted | CODE - UNI/MET. | 1 | 51130001067 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 03 | trim panel right, painted | CODE - UNI/MET. | 1 | 51130001068 | $96.81 | ENDED, +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| For vehicles with Headlight cleaning system |
S502A=Yes |
|||||||||
| 03 | Cover, primed, left | 1 | 51138231049 | $35.45 | Shop at ECS Tuning | |||||
| 03 | Cover, primed, right | 1 | 51138231050 | $35.45 | Shop at ECS Tuning | |||||
| 03 | trim panel left, painted | CODE - UNI/MET. | 1 | 51130001069 | $116.53 | ENDED, +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 03 | trim panel right, painted | CODE - UNI/MET. | 1 | 51130001070 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 04 | Synthetic strip | 2 | 51138229138 | $2.89 | Shop at ECS Tuning | |||||
| 05 | Cover, windshield | 1 | 51718232894 | $57.86 | Shop at ECS Tuning | |||||

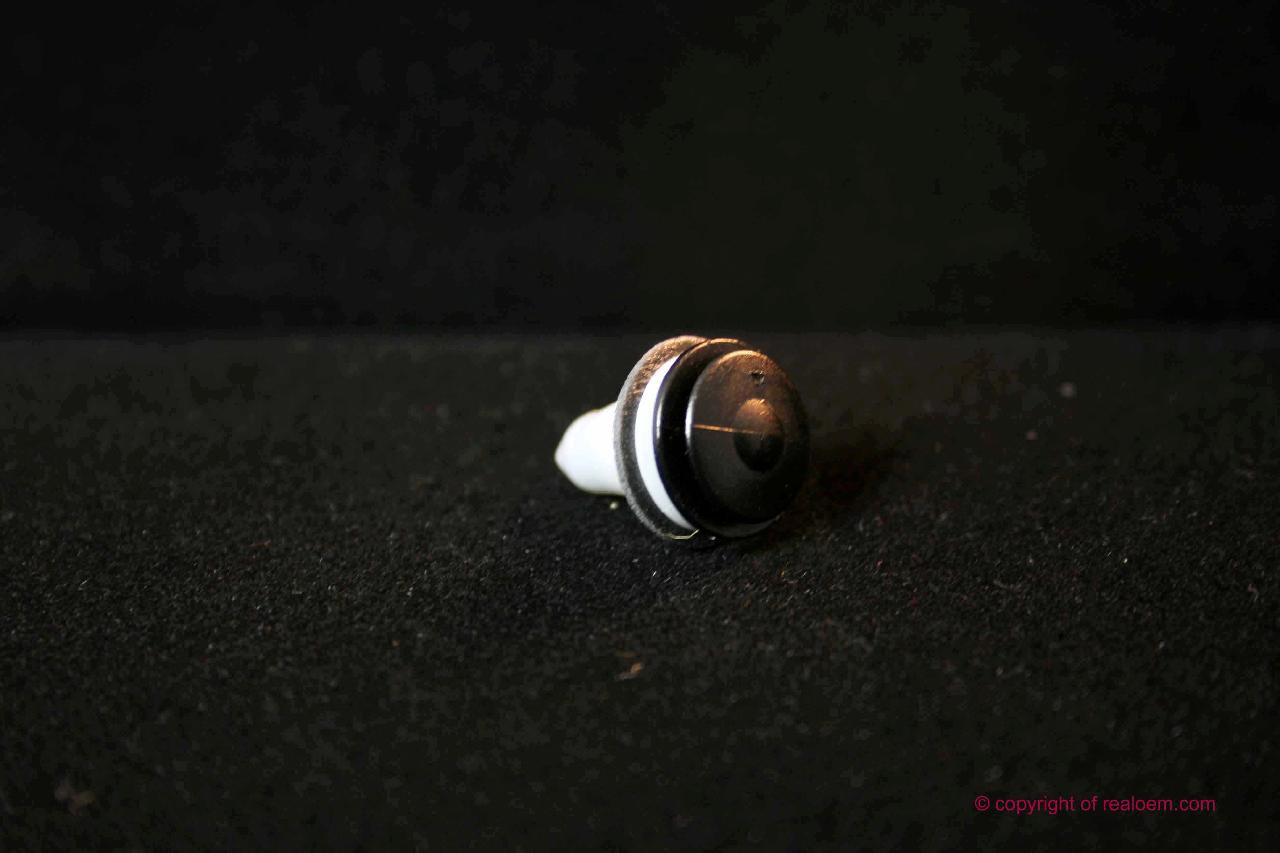

| 06 | Clip | 7 | 51718234698 | $0.92 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 07 | Gasket ring | 1 | 51718204864 | $1.72 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 08 | Gasket | 1 | 51718233437 | $1.72 | Shop at ECS Tuning | |||||
| 09 | Covering left | 1 | 51718208479 | $6.00 | Shop at ECS Tuning | |||||
| 09 | Covering right | 1 | 51718208480 | $6.00 | Shop at ECS Tuning | |||||
| 10 | Dual clip | 4 | 51718177846 | $0.63 | Shop at ECS Tuning | |||||
| 11 | Left apron cover | 1 | 51718232635 | $6.00 | Shop at ECS Tuning | |||||
| 11 | Right apron cover | 1 | 51718232636 | $6.00 | Shop at ECS Tuning | |||||
| 12 | Roof molding prime-coated left | 1 | 51138208689 | $65.53 | Shop at ECS Tuning | |||||
| 12 | Roof molding prime-coated right | 1 | 51138208690 | $65.53 | Shop at ECS Tuning | |||||

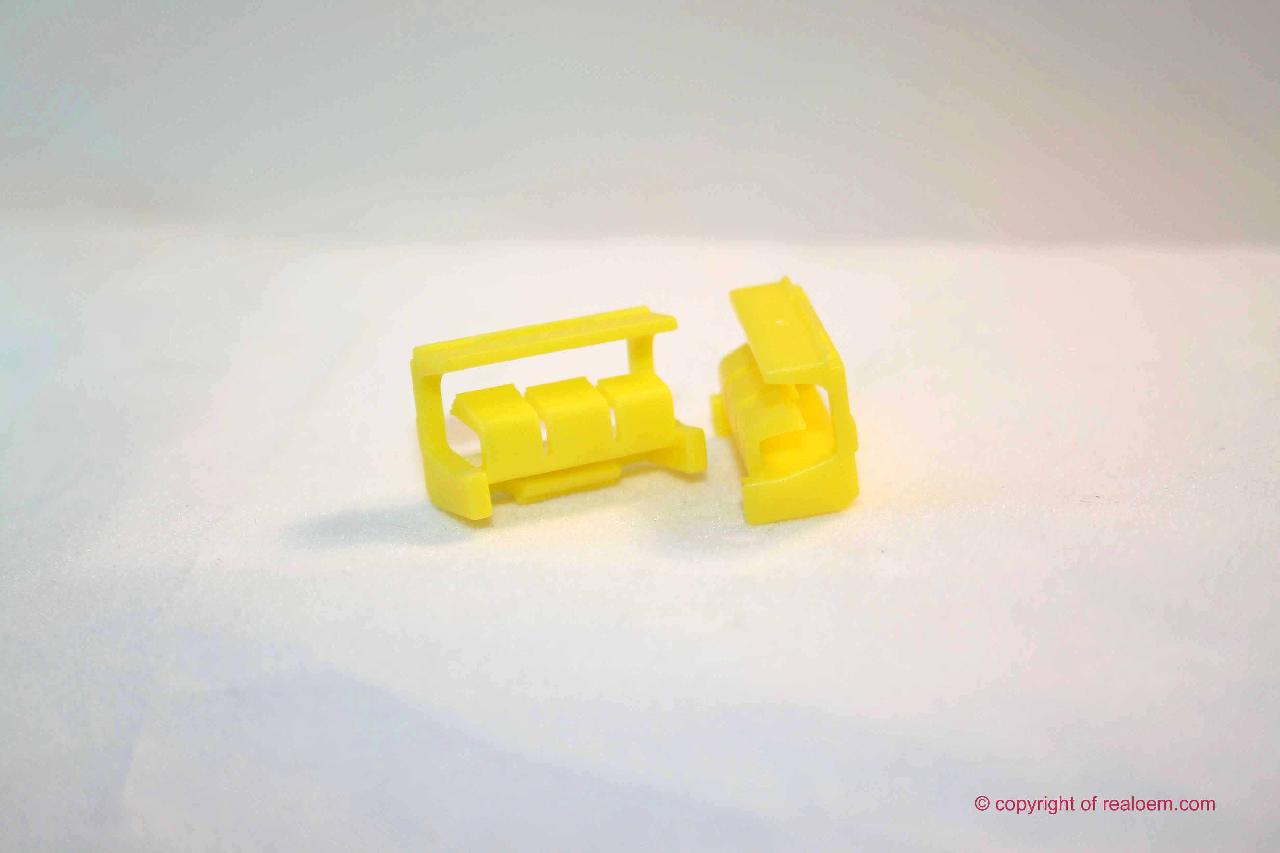

| 13 | Fixing clamp left | HELLGELB | 7 | 51138238951 | $0.85 | Shop at ECS Tuning | ||||
| 13 | Fixing clamp right | HELLGRUEN | 7 | 51138238952 | $0.85 | Shop at ECS Tuning | ||||
| 14 | Grille,air inlet | M3 | 1 | 51132694723 | $21.69 | Shop at ECS Tuning | ||||
| 15 | Finisher, side frame left | SCHWARZ | 1 | 12/1999 | 51717003935 | $290.44 | Shop at ECS Tuning | |||
| 15 | Finisher, side frame right | SCHWARZ | 1 | 12/1999 | 51717003936 | $290.78 | Shop at ECS Tuning | |||
| 15 | Finisher, side frame left | CHROM | 1 | 12/1999 | 51717003937 | $290.44 | Shop at ECS Tuning | |||
| 15 | Finisher, side frame right | CHROM | 1 | 12/1999 | 51717003938 | $290.78 | Shop at ECS Tuning | |||
| 15 | Finisher, side frame left | GLANZSCHWARZ | 1 | 12/1999 | 51717030845 | $524.85 | Shop at ECS Tuning | |||
| 15 | Finisher, side frame right | GLANZSCHWARZ | 1 | 12/1999 | 51717030846 | $524.85 | Shop at ECS Tuning | |||
| 16 | Fillister head self-tapping screw | L=13 MM | X | 41009175577 | $0.19 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw | X | 51717013307 | $0.33 | Shop at ECS Tuning | |||||
| 17 | Prestol-cage | ST3,9-ZNS3 | X | 07129904213 | $0.26 | Shop at ECS Tuning | ||||
| 17 | Expanding nut | X | 51717013308 | $0.26 | Shop at ECS Tuning | |||||
| 19 | Grille, side panel, front, left | M3 | 1 | 51132694607 | $70.11 | Shop at ECS Tuning | ||||
| 19 | Grille, side panel, front, right | M3 | 1 | 51132694608 | $70.11 | Shop at ECS Tuning | ||||

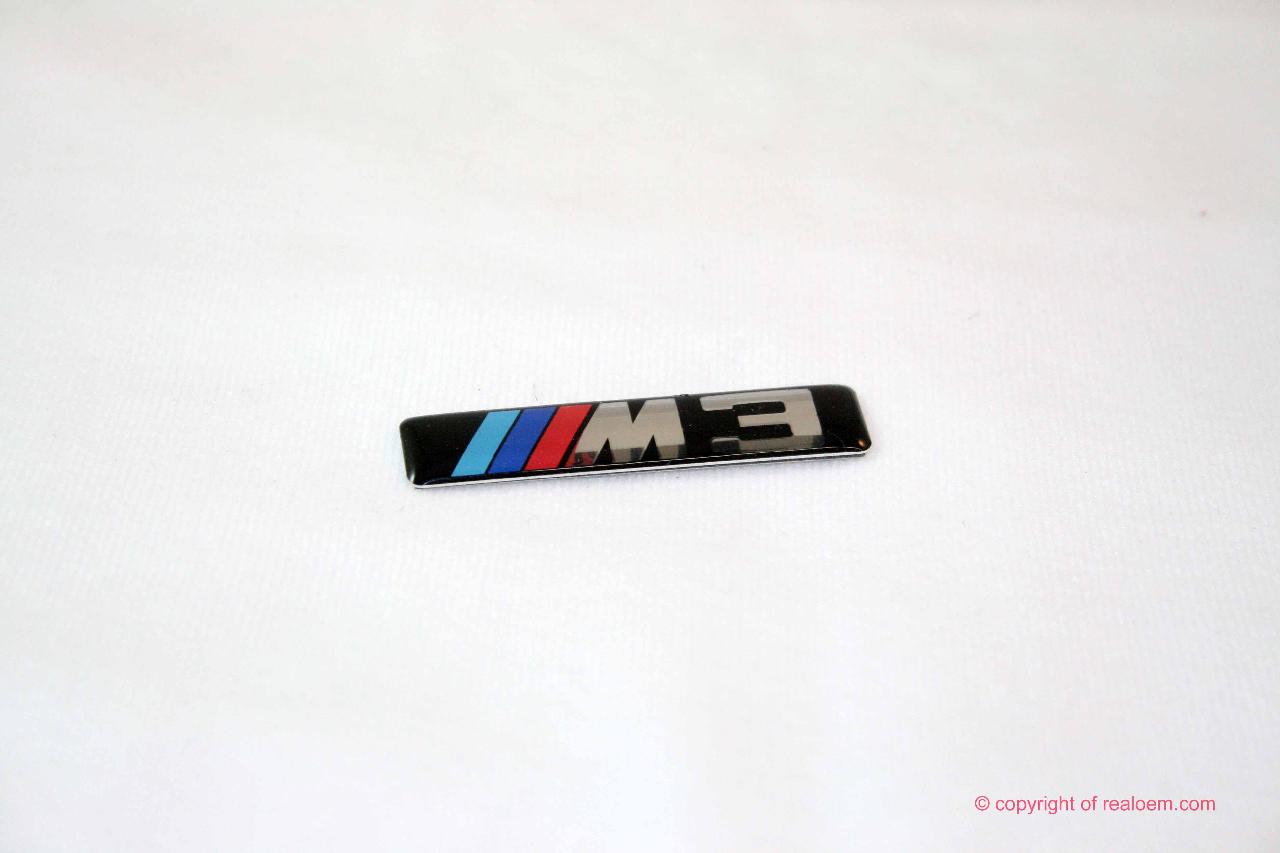

| 20 | Emblem | -M3- | 2 | 51137893023 | $28.82 | Shop at ECS Tuning | ||||

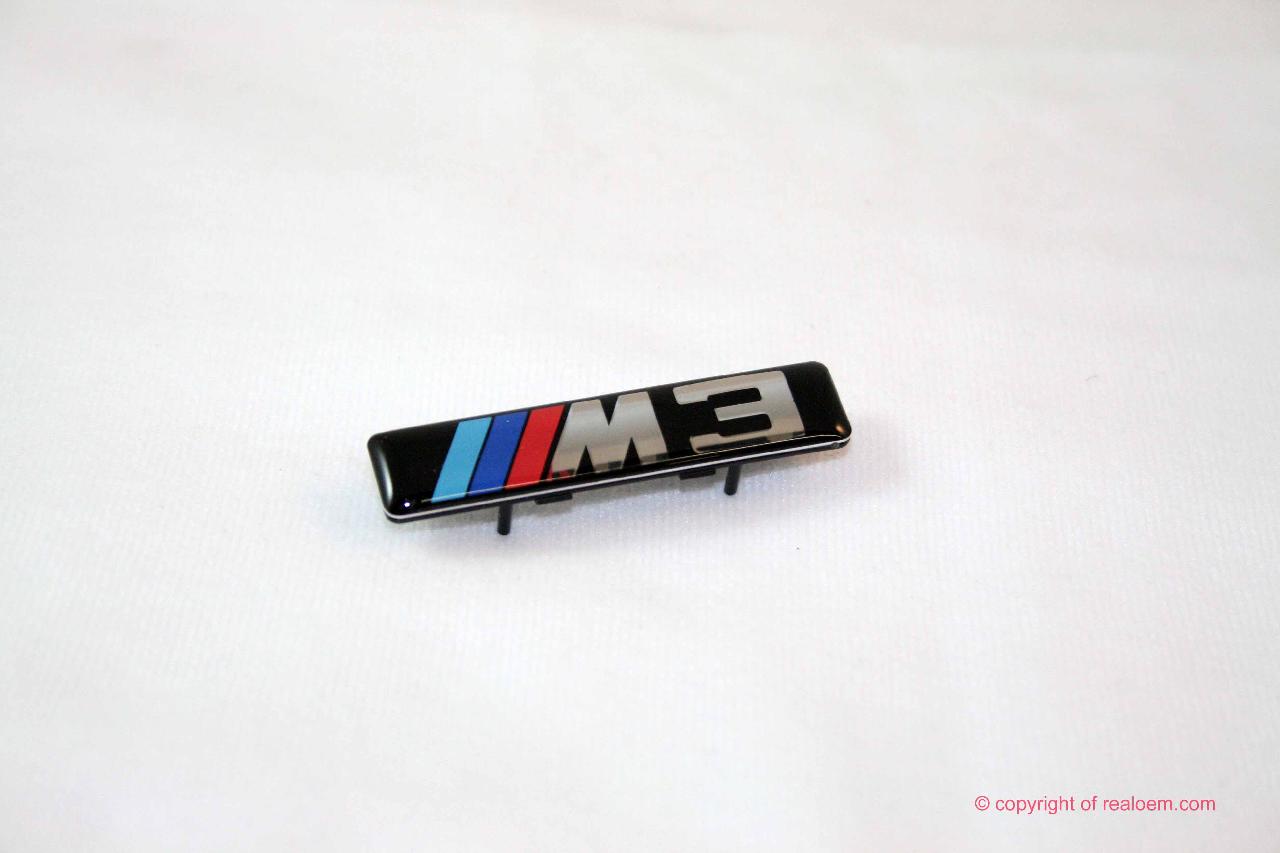

| 22 | Emblem with supporting plate | M3 | 2 | 72127900605 | $28.82 | Shop at ECS Tuning | ||||
