Door trim, rear for BMW 7 Series E38 740i (1998)

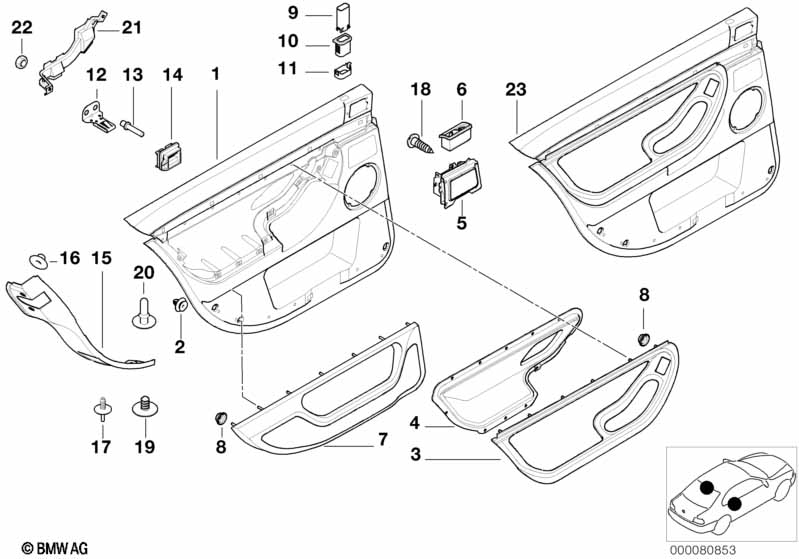

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE Refer to "Help - abbreviations" in EPC FOR LOUDSPEAKER COVER REFER TO HG 65 |
|||||||||
| For vehicles with Roller sun shield The cloth version only applies to cloth- leather version or only to leather version: grey (B6TT/ B7TT/ B9TT/ N9TT/ P4TT/ N6TT), black (B6AT/ B7AT/ B9AT/ P2AT), black (N9SW/ P4SW/ N6SW), marine-blau (B6DL/ B7DL/ N9DL/ N6DL), sand-beige (B6SN/ B7SN/ N9SN/ N6SN), lavendel-grey (B7MK/ N9MK/ N6MK), dark green (B9EG/ P4EG) and to pastel- green (B9SK/ P4SK) All leather Club schwarz R9SW, grau R9TT, sandbeige R9SN, ozeanblau R9OZ All leather Ambiente anthrazitgrau V1AG, morello V1MO, sandbeige V1SN |
=Yes |
|||||||||
| 01 | Door trim panel, rear, left | GRAU | 1 | 51428182071 | $1015.03 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | GRAU | 1 | 51428182072 | $1015.03 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, left | SCHWARZ | 1 | 51428182073 | $770.04 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | SCHWARZ | 1 | 51428182074 | $1015.03 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 51428182075 | $770.04 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 51428182076 | $770.04 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, left | LAVENDELGRAU | 1 | 51428182079 | $770.04 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | LAVENDELGRAU | 1 | 51428182080 | $770.04 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, left | DUNKELGRUEN | 1 | 51428182081 | $770.04 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | DUNKELGRUEN | 1 | 51428182082 | $770.04 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, left | PASTELLGRUEN | 1 | 51428182083 | $770.04 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | PASTELLGRUEN | 1 | 51428182084 | $770.04 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Roller sun shield and Door railing sandbeige/dunkel The cloth version only applies to cloth- leather version or only to leather version: grey (B6TT/ B7TT/ B9TT/ N9TT/ P4TT/ N6TT), black (B6AT/ B7AT/ B9AT/ P2AT), black (N9SW/ P4SW/ N6SW), marine-blau (B6DL/ B7DL/ N9DL/ N6DL), sand-beige (B6SN/ B7SN/ N9SN/ N6SN), lavendel-grey (B7MK/ N9MK/ N6MK), dark green (B9EG/ P4EG) and to pastel- green (B9SK/ P4SK) All leather Club schwarz R9SW, grau R9TT, sandbeige R9SN, ozeanblau R9OZ All leather Ambiente sandbeige V2SN |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | SANDBEIGE | 1 | 51428182077 | $1015.03 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | SANDBEIGE | 1 | 51428182078 | $1015.03 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Roller sun vizor, rear lateral and Standard leather, Montana/oyster |
S416A=No O7OY=Yes |
|||||||||
| 01 | Door trim panel, rear, left | PEARLBEI/MAR.BL | 1 | 51428246435 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | PEARLBEI/MAR.BL | 1 | 51428246436 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Montana/basic equip/sandbeige or 100% Leather, Nappa/sand-beige or Leather Natur/sand-beige |
N6SN=Yes N9SN=Yes V2SN=Yes |
|||||||||
| 01 | Door trim panel, rear, left | SANDBEIGE | 1 | 51428179253 | $902.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | SANDBEIGE | 1 | 51428179254 | $902.73 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version or Cloth / Leather version or Leather trim All leather Club schwarz R9SW, grau R9TT, sandbeige R9SN, ozeanblau R9OZ All leather Ambiente anthrazitgrau V1AG, morello V1MO, sandbeige V1SN grau B6TT/B7TT/B9TT/N9TT/P4TT/N6TT schwarz B6AT/B7AT/B9AT/P2AT schwarz N9SW/P4SW/N6SW marine-blau B6DL/B7DL/N9DL/N6DL sand-beige B6SN/B7SN/N9SN/N6SN lavendel-grau B7MK/N9MK/N6MK dunkel-grün B9EG/P4EG pastell-grün B9SK/P4SK |
=Yes =Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | GRAU | 1 | 51428179247 | $902.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | GRAU | 1 | 51428179248 | $902.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, left | SCHWARZ | 1 | 51428179249 | $902.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | SCHWARZ | 1 | 51428179250 | $902.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 51428179251 | $902.73 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 51428179252 | $902.73 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, left | LAVENDELGRAU | 1 | 51428179255 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | LAVENDELGRAU | 1 | 51428179256 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, left | PASTELLGRUEN | 1 | 51428179259 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | PASTELLGRUEN | 1 | 51428179260 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fab./ltherEpingle/Vavona/englisch-grün or Leather Montana/basic equip/englischgrün or 100% Leather, Nappa/englisch-grün and Cloth version or Cloth / Leather version or Leather trim All leather Club schwarz R9SW, grau R9TT, sandbeige R9SN, ozeanblau R9OZ All leather Ambiente anthrazitgrau V1AG, morello V1MO, sandbeige V1SN grau B6TT/B7TT/B9TT/N9TT/P4TT/N6TT schwarz B6AT/B7AT/B9AT/P2AT schwarz N9SW/P4SW/N6SW marine-blau B6DL/B7DL/N9DL/N6DL sand-beige B6SN/B7SN/N9SN/N6SN lavendel-grau B7MK/N9MK/N6MK dunkel-grün B9EG/P4EG pastell-grün B9SK/P4SK |
B9EG=Yes N6EG=Yes P4EG=Yes =Yes =Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | DUNKELGRUEN | 1 | 51428179257 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | DUNKELGRUEN | 1 | 51428179258 | $856.53 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Clip Natur | X | 51411973500 | $0.24 | Shop at ECS Tuning | |||||
| 02 | Clip | GRUN | X | 51418101204 | $0.55 | Shop at ECS Tuning | ||||
| LEATHER VERSION BUFFALO anthrazit P2AT/P3AT |
||||||||||
| 03 | Left centre door trim panel insert | ANTHRAZIT | 1 | 51428178899 | $354.89 | ENDED | Shop at ECS Tuning | |||
| 03 | Right center door trim panel insert | ANTHRAZIT | 1 | 51428178900 | $354.89 | ENDED | Shop at ECS Tuning | |||
| NAPPA LEATHER | ||||||||||
| 03 | Left centre door trim panel insert | MARINEBLAU | 1 | 09/1998 | 51428178885 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Right center door trim panel insert | MARINEBLAU | 1 | 09/1998 | 51428178886 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Left centre door trim panel insert | LAVENDELGRAU | 1 | 09/1998 | 51428178889 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Right center door trim panel insert | LAVENDELGRAU | 1 | 09/1998 | 51428178890 | $442.73 | ENDED | Shop at ECS Tuning | ||
| 03 | Left centre door trim panel insert | SCHWARZ | 1 | 03/2000 | 51428178883 | $462.16 | ENDED | Shop at ECS Tuning | ||
| 03 | Right center door trim panel insert | SCHWARZ | 1 | 03/2000 | 51428178884 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Left centre door trim panel insert | SANDBEIGE | 1 | 03/2000 | 51428178887 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Right center door trim panel insert | SANDBEIGE | 1 | 03/2000 | 51428178888 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Left centre door trim panel insert | DUNKELGRUEN | 1 | 03/2000 | 51428178893 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Right center door trim panel insert | DUNKELGRUEN | 1 | 03/2000 | 51428178894 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Left centre door trim panel insert | PASTELLGRUEN | 1 | 03/2000 | 51428178895 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Right center door trim panel insert | PASTELLGRUEN | 1 | 03/2000 | 51428178896 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Left centre door trim panel insert | GRAU | 1 | 03/2000 | 51428179547 | $354.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Right center door trim panel insert | GRAU | 1 | 03/2000 | 51428179548 | $447.05 | ENDED | Shop at ECS Tuning | ||
| grau B6TT/B7TT/B9TT/N6TT marine-blau B6DL/B7DL/N6DL sand-beige B6SN/B7SN/N6SN lavendel-grau B7MK/N6MK dunkel-grün B9EG pastell-grün B9SK schwarz B6AT/B7AT/B9AT/N6SW |
||||||||||
| 03 | Left centre door trim panel insert | GRAU | 1 | 51428179529 | $192.49 | ENDED | Shop at ECS Tuning | |||
| 03 | Right center door trim panel insert | GRAU | 1 | 51428179530 | $192.49 | ENDED | Shop at ECS Tuning | |||
| 03 | Left centre door trim panel insert | ANTHRAZIT | 1 | 51428179531 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right center door trim panel insert | ANTHRAZIT | 1 | 51428179532 | ENDED | Shop at ECS Tuning | ||||
| 03 | Left centre door trim panel insert | MARINEBLAU | 1 | 51428179533 | $140.62 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Right center door trim panel insert | MARINEBLAU | 1 | 51428179534 | $140.62 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Left centre door trim panel insert | SANDBEIGE | 1 | 51428179535 | $192.49 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Right center door trim panel insert | SANDBEIGE | 1 | 51428179536 | $192.49 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Left centre door trim panel insert | LAVENDELGRAU | 1 | 51428179537 | $140.62 | ENDED | Shop at ECS Tuning | |||
| 03 | Right center door trim panel insert | LAVENDELGRAU | 1 | 51428179538 | $140.62 | ENDED | Shop at ECS Tuning | |||
| 03 | Left centre door trim panel insert | DUNKELGRUEN | 1 | 51428179539 | $140.62 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Right center door trim panel insert | DUNKELGRUEN | 1 | 51428179540 | $140.62 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Left centre door trim panel insert | PASTELLGRUEN | 1 | 51428179541 | $140.62 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Right center door trim panel insert | PASTELLGRUEN | 1 | 51428179542 | $140.62 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Left centre door trim panel insert | SCHWARZ | 1 | 51428179543 | $192.49 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Right center door trim panel insert | SCHWARZ | 1 | 51428179544 | $192.49 | ENDED, +core | Shop at ECS Tuning | |||
| CLOTH VERSION "VELOURS" grau B7TT anthrazit B7AT,B8AT marine-blau B7DL,B8DL lavendel-grau B7MK,B8MK |
||||||||||
| 04 | Left center covering | GRAU | 1 | 51428179435 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Right center covering | GRAU | 1 | 51428179436 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Left center covering | ANTHRAZIT | 1 | 51428179437 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Right center covering | ANTHRAZIT | 1 | 51428179438 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Left center covering | MARINEBLAU | 1 | 51428179439 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Right center covering | MARINEBLAU | 1 | 51428179440 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Left center covering | LAVENDELGRAU | 1 | 51428179443 | $68.25 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Right center covering | LAVENDELGRAU | 1 | 51428179444 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| CLOTH VERSION FLOCK "VELOURS" grau B6TT anthrazit B6AT marine-blau B6DL |
||||||||||
| 04 | Left center covering | GRAU | 1 | 51428179427 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Right center covering | GRAU | 1 | 51428179428 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Left center covering | ANTHRAZIT | 1 | 51428179429 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Right center covering | ANTHRAZIT | 1 | 51428179430 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Left center covering | MARINEBLAU | 1 | 51428179431 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Right center covering | MARINEBLAU | 1 | 51428179432 | $60.82 | ENDED, +core | Shop at ECS Tuning | |||
| LEATHER VERSION BUFFALO anthrazit P2AT/P3AT |
||||||||||
| 04 | Left center covering | ANTHRAZIT | 1 | 51428179475 | $170.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Right center covering | ANTHRAZIT | 1 | 51428179476 | $170.75 | ENDED | Shop at ECS Tuning | |||
| CASUAL NAPPA LEATHER SOFT NAPPA LEATHER |
||||||||||
| 04 | Left center covering | MARINEBLAU | 1 | 09/1998 | 51428179455 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Right center covering | MARINEBLAU | 1 | 09/1998 | 51428179456 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Left center covering | LAVENDELGRAU | 1 | 09/1998 | 51428179459 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Right center covering | LAVENDELGRAU | 1 | 09/1998 | 51428179460 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Left center covering | GRAU | 1 | 03/2000 | 51428179445 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Right center covering | GRAU | 1 | 03/2000 | 51428179446 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Left center covering | DUNKELGRUEN | 1 | 03/2000 | 51428179449 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Right center covering | DUNKELGRUEN | 1 | 03/2000 | 51428179450 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Left center covering | PASTELLGRUEN | 1 | 03/2000 | 51428179451 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Right center covering | PASTELLGRUEN | 1 | 03/2000 | 51428179452 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Left center covering | SCHWARZ | 1 | 03/2000 | 51428179453 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Right center covering | SCHWARZ | 1 | 03/2000 | 51428179454 | $170.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Left center covering | SANDBEIGE | 1 | 03/2000 | 51428179457 | $170.52 | ENDED | Shop at ECS Tuning | ||
| 04 | Right center covering | SANDBEIGE | 1 | 03/2000 | 51428179458 | $170.75 | ENDED | Shop at ECS Tuning | ||
| LEATHER VERSION MONTANA grau B9TT/N6TT/N8TT schwarz B9AT/N6SW/N8SW marine-blau N6DL/N8DL sand-beige N6SN/N8SN lavendel-grau N6MK/N8MK dunkel-grün B9EG pastell-grün B9SK |
||||||||||
| 04 | Left center covering | GRAU | 1 | 51428179463 | $170.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Right center covering | GRAU | 1 | 51428179464 | $170.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Left center covering | SCHWARZ | 1 | 51428179465 | $170.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Right center covering | SCHWARZ | 1 | 51428179466 | $170.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Left center covering | MARINEBLAU | 1 | 51428179467 | $170.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Right center covering | MARINEBLAU | 1 | 51428179468 | $170.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Left center covering | SANDBEIGE | 1 | 51428179469 | $170.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Right center covering | SANDBEIGE | 1 | 51428179470 | $170.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Left center covering | LAVENDELGRAU | 1 | 51428179471 | $170.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Right center covering | LAVENDELGRAU | 1 | 51428179472 | $170.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Left center covering | DUNKELGRUEN | 1 | 51428193513 | $170.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Right center covering | DUNKELGRUEN | 1 | 51428193514 | $170.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Left center covering | PASTELLGRUEN | 1 | 51428193515 | $170.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Right center covering | PASTELLGRUEN | 1 | 51428193516 | $170.75 | ENDED | Shop at ECS Tuning | |||
| 05 | Left rear door ashtray | GRAU | 1 | 51428179339 | $137.28 | ENDED | Shop at ECS Tuning | |||
| 05 | Right rear door ashtray | GRAU | 1 | 51428179340 | $137.28 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Left rear door ashtray | ANTHRAZIT | 1 | 51428179341 | $137.28 | Shop at ECS Tuning | ||||
| 05 | Right rear door ashtray | ANTHRAZIT | 1 | 51428179342 | $137.28 | Shop at ECS Tuning | ||||
| 05 | Left rear door ashtray | MARINEBLAU | 1 | 51428179343 | $105.74 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Right rear door ashtray | MARINEBLAU | 1 | 51428179344 | $137.28 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Left rear door ashtray | SANDBEIGE | 1 | 51428179345 | $137.28 | +core | Shop at ECS Tuning | |||
| 05 | Right rear door ashtray | SANDBEIGE | 1 | 51428179346 | $137.28 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Left rear door ashtray | LAVENDELGRAU | 1 | 51428179347 | $137.28 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Right rear door ashtray | LAVENDELGRAU | 1 | 51428179348 | $137.28 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Left rear door ashtray | DUNKELGRUEN | 1 | 51428179349 | $105.74 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Right rear door ashtray | DUNKELGRUEN | 1 | 51428179350 | $105.74 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Left rear door ashtray | PASTELLGRUEN | 1 | 51428179351 | $67.52 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Right rear door ashtray | PASTELLGRUEN | 1 | 51428179352 | $105.74 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 05 | Left rear door ashtray | NUSSBAUM | 1 | 51168165261 | $255.88 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Right rear door ashtray | NUSSBAUM | 1 | 51168165262 | $255.88 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Left ashtray insert | 1 | 51168175111 | $10.95 | Shop at ECS Tuning | |||||
| 06 | Right ashtray insert | 1 | 51168175112 | $11.05 | Shop at ECS Tuning | |||||
| 07 | Left rear door trim panel insert | GRAU | 1 | 51428179269 | $143.84 | ENDED | Shop at ECS Tuning | |||
| 07 | Right rear door trim panel insert | GRAU | 1 | 51428179270 | $143.84 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Left rear door trim panel insert | ANTHRAZIT | 1 | 51428179271 | $220.97 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Right rear door trim panel insert | ANTHRAZIT | 1 | 51428179272 | $143.84 | +core | Shop at ECS Tuning | |||
| 07 | Left rear door trim panel insert | MARINEBLAU | 1 | 51428179273 | $220.97 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Right rear door trim panel insert | MARINEBLAU | 1 | 51428179274 | $220.97 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Left rear door trim panel insert | SANDBEIGE | 1 | 51428179275 | $143.84 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Right rear door trim panel insert | SANDBEIGE | 1 | 51428179276 | $143.84 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Left rear door trim panel insert | LAVENDELGRAU | 1 | 51428179277 | $220.97 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Right rear door trim panel insert | LAVENDELGRAU | 1 | 51428179278 | $220.97 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Left rear door trim panel insert | DUNKELGRUEN | 1 | 51428179279 | $220.97 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Right rear door trim panel insert | DUNKELGRUEN | 1 | 51428179280 | $220.97 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Left rear door trim panel insert | PASTELLGRUEN | 1 | 51428179281 | $220.97 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Right rear door trim panel insert | PASTELLGRUEN | 1 | 51428179282 | $220.97 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Nut | X | 51418176418 | $0.23 | Shop at ECS Tuning | |||||
| 09 | Lock button | SCHWARZ | 2 | 51218186633 | $4.58 | Shop at ECS Tuning | ||||
| 09 | Lock button | CHROM | 2 | 51218216905 | $8.03 | Shop at ECS Tuning | ||||
| 10 | Left lock securing bush | CHROM | 1 | 51218216903 | $3.87 | Shop at ECS Tuning | ||||
| 10 | Right lock securing bush | CHROM | 1 | 51218216904 | $3.87 | Shop at ECS Tuning | ||||
| 10 | Left lock securing bush | 1 | 51228188683 | $3.48 | Shop at ECS Tuning | |||||
| 10 | Right lock securing bush | 1 | 51228188684 | $3.48 | Shop at ECS Tuning | |||||
| 11 | Lock bolt | 2 | 51218169737 | $4.70 | Shop at ECS Tuning | |||||
| 12 | Grip bracket | 2 | 51218156538 | $0.92 | Shop at ECS Tuning | |||||
| 13 | Blind rivet | 4 | 51218199602 | $0.52 | Shop at ECS Tuning | |||||
| 14 | Grip support | 2 | 51418156532 | $0.77 | Shop at ECS Tuning | |||||
| 15 | Left rear door catch cover | SCHWARZ | 1 | 51428150859 | $14.13 | Shop at ECS Tuning | ||||
| 15 | Right rear door catch cover | SCHWARZ | 1 | 51428150860 | $14.13 | ENDED | Shop at ECS Tuning | |||
| 16 | Insert | 4 | 51418195400 | $0.50 | Shop at ECS Tuning | |||||
| 17 | Expanding rivet, black | L=15MM | 2 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 18 | Fillister head screw | 3X10 | 4 | 64116940162 | $0.70 | Shop at ECS Tuning | ||||
| 19 | Plug, black | D=5MM | 2 | 52208133466 | $0.50 | Shop at ECS Tuning | ||||
| 20 | Insert | 2 | 51418209901 | $0.55 | Shop at ECS Tuning | |||||
| 21 | Bar left | 1 | 51428150605 | $4.63 | ENDED | Shop at ECS Tuning | ||||
| 21 | Bar right | 1 | 51428150606 | $4.67 | ENDED | Shop at ECS Tuning | ||||
| 22 | Hex nut | AM5-8-ZNNIV SI | 4 | 07129904319 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Door trim, rear?
- This technical diagram illustrates the Door trim, rear within the Vehicle trim group for the 7 Series E38 740i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel, rear, left (Part #51428182071).
- Which models use the hardware listed in this Door trim, rear?
- The hardware and components featured in the Door trim, rear are specific to the 7 Series E38 740i produced during 1998. These technical specifications ensure that parts like the Door trim panel, rear, left (51428182071) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim, rear assembly?
- Each item in the Door trim, rear corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Door trim panel, rear, left by locating its position on the schematic, which then links to the official BMW part number 51428182071 for the Vehicle trim section.
