Rr door trim,cloth/leatherette,side airb for BMW 5 Series E39 530i (2003)

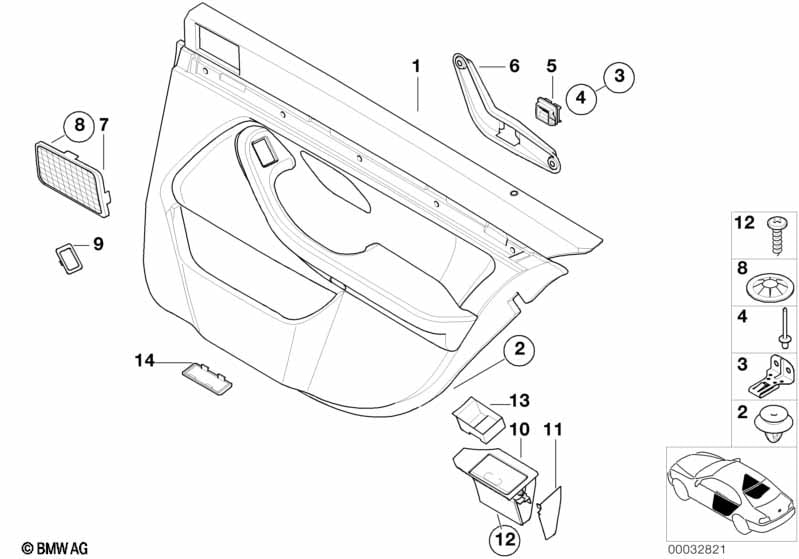

This Rr door trim,cloth/leatherette,side airb technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Basic trim panel of leatherette Center cover of cloth or leatherette |
|||||||||
| CLOTH VERSION, FLAT TEXTILE anthrazit D4AT grau D4TT dunkel-grün D4EG königs-blau D4KU |
||||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1997 | 51428237809 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1997 | 51428237810 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1997 | 51428237811 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1997 | 51428237812 | $807.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | DUNKELGRUEN | 1 | 09/1997 | 51428237813 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | DUNKELGRUEN | 1 | 09/1997 | 51428237814 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | KOENIGSBLAU | 1 | 09/1997 | 51428237815 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | KOENIGSBLAU | 1 | 09/1997 | 51428237816 | $588.69 | ENDED | Shop at ECS Tuning | ||
| Cloth, Flock Anthrazit F6AT Grau F6TT Marineblau F6DL Dunkelgrün F6EG |
||||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1998 | 51428258539 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1998 | 51428258540 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1998 | 51428258541 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1998 | 51428258542 | $588.69 | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1998 | 51428258543 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1998 | 51428258544 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | DUNKELGRÜN | 1 | 09/1998 | 51428258545 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | DUNKELGRÜN | 1 | 09/1998 | 51428258546 | $588.69 | ENDED | Shop at ECS Tuning | ||
| CLOTH VERSION WOLLVELOURS anthrazit B7AT grau B7TT marine-blau B7DL meer-grün B7SX |
||||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1997 | 51428237817 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1997 | 51428237818 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1997 | 51428237819 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1997 | 51428237820 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1997 | 51428237821 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1997 | 51428237822 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MEERGRUEN | 1 | 09/1997 | 51428237823 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MEERGRUEN | 1 | 09/1997 | 51428237824 | $588.69 | ENDED | Shop at ECS Tuning | ||
| CLOTH VERSION FLOCK anthrazit D3AT/D9AT grau D3TT/D9TT marine-blau D3DL/D9DL |
||||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1997 | 51428237803 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1997 | 51428237804 | $807.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1997 | 51428237805 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1997 | 51428237806 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1997 | 51428237807 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1997 | 51428237808 | $588.69 | ENDED | Shop at ECS Tuning | ||
| Cloth version diagonal rep Grau F4TT, Anthrazit F4AT, Biarritzblau F4BR, Sienarot F4SR. |
||||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 03/1998 | 51427140041 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 03/1998 | 51427140042 | $807.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 03/1998 | 51427140043 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 03/1998 | 51427140044 | $807.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | BIARRITZBLAU | 1 | 09/1998 | 51428252903 | $560.79 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | BIARRITZBLAU | 1 | 09/1998 | 51428252904 | $560.79 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | SIENAROT | 1 | 09/1998 | 51428252907 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | SIENAROT | 1 | 09/1998 | 51428252908 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun vizor, rear door and Fabric/leather "Sportline"/anthracite |
S417A=Yes J3AT=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/2001 | 51427140147 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/2001 | 51427140148 | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear door and Cloth/leather "Sportline/grey-blue" |
S417A=Yes J3GC=Yes |
|||||||||
| 01 | Door trim panel, rear, left | GRAUBLAU | 1 | 09/2001 | 51427140151 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | GRAUBLAU | 1 | 09/2001 | 51427140152 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Roller sun vizor, rear door and Cloth/leather "Sportline/flanell-grey" |
S417A=Yes J3FA=Yes |
|||||||||
| 01 | Door trim panel, rear, left | FLANELLGRAU | 1 | 09/2001 | 51427140149 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | FLANELLGRAU | 1 | 09/2001 | 51427140150 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Roller sun shield and Chrome-Line/SA345 Cloth version flock Anthrazit F6AT Grau F6TT Marineblau F6DL Dunkelgrün F6EG |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1998 | 51428258549 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1998 | 51428258550 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1998 | 51428258551 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1998 | 51428258552 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1998 | 51428258553 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1998 | 51428258554 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | DUNKELGRÜN | 1 | 09/1998 | 51428258555 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | DUNKELGRÜN | 1 | 09/1998 | 51428258556 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield and Chrome-Line/SA345 CLOTH VERSION WOOL VELOURS anthrazit B7AT grau B7TT marine-blau B7DL meer-grün B7SX |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1997 | 51428237889 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1997 | 51428237890 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1997 | 51428237891 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1997 | 51428237892 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1997 | 51428237893 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1997 | 51428237894 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MEERGRUEN | 1 | 09/1997 | 51428237895 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MEERGRUEN | 1 | 09/1997 | 51428237896 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield and Chrome-Line/SA345 CLOTH VERSION, FLAT TEXTILE anthrazit D4AT grau D4TT dunkel-grün D4EG königs-blau D4KU |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1997 | 51428237881 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1997 | 51428237882 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1997 | 51428237883 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1997 | 51428237884 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | DUNKELGRUEN | 1 | 09/1997 | 51428237885 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | DUNKELGRUEN | 1 | 09/1997 | 51428237886 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | KOENIGSBLAU | 1 | 09/1997 | 51428237887 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | KOENIGSBLAU | 1 | 09/1997 | 51428237888 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield and Chrome-Line/SA345 Cloth version Diagonal rep Grau F4TT, Anthrazit F4AT, Biarritzblau F4BR, Sienarot F4SR |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 03/1998 | 51427140093 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 03/1998 | 51427140094 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 03/1998 | 51427140095 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 03/1998 | 51427140096 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | BIARRITZBLAU | 1 | 09/1998 | 51428252923 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | BIARRITZBLAU | 1 | 09/1998 | 51428252924 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | SIENAROT | 1 | 09/1998 | 51428252927 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | SIENAROT | 1 | 09/1998 | 51428252928 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield and Chrome-Line/SA345 Cloth version flock anthrazit D3AT/D9AT grau D3TT/D9TT marine-blau D3DL/D9DL |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1997 | 51428237875 | $807.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1997 | 51428237876 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1997 | 51428237877 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1997 | 51428237878 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1997 | 51428237879 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1997 | 51428237880 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield and Shadow-Line Cloth version flock Anthrazit F6AT Grau F6TT Marineblau F6DL Dunkelgrün F6EG |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1998 | 51428258559 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1998 | 51428258560 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1998 | 51428258561 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1998 | 51428258562 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1998 | 51428258563 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1998 | 51428258564 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | DUNKELGRÜN | 1 | 09/1998 | 51428258565 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | DUNKELGRÜN | 1 | 09/1998 | 51428258566 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield and Shadow-Line CLOTH VERSION WOOL VELOURS anthrazit B7AT grau B7TT marine-blau B7DL meer-grün B7SX |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1997 | 51428237867 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1997 | 51428237868 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1997 | 51428237869 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1997 | 51428237870 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1997 | 51428237871 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1997 | 51428237872 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MEERGRUEN | 1 | 09/1997 | 51428237873 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MEERGRUEN | 1 | 09/1997 | 51428237874 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield and Shadow-Line CLOTH VERSION, FLAT TEXTILE anthrazit D4AT grau D4TT dunkel-grün D4EG königs-blau D4KU |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1997 | 51428237859 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1997 | 51428237860 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1997 | 51428237861 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1997 | 51428237862 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | DUNKELGRUEN | 1 | 09/1997 | 51428237863 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | DUNKELGRUEN | 1 | 09/1997 | 51428237864 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | KOENIGSBLAU | 1 | 09/1997 | 51428237865 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | KOENIGSBLAU | 1 | 09/1997 | 51428237866 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield and Shadow-Line Cloth version Diagonal rep Grau F4TT, Anthrazit F4AT, Biarritzblau F4BR, Sienarot F4SR |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 03/1998 | 51427140141 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 03/1998 | 51427140142 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 03/1998 | 51427140143 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 03/1998 | 51427140144 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | BIARRITZBLAU | 1 | 09/1998 | 51428252943 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | BIARRITZBLAU | 1 | 09/1998 | 51428252944 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | SIENAROT | 1 | 09/1998 | 51428252947 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | SIENAROT | 1 | 09/1998 | 51428252948 | $588.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield and Shadow-Line Cloth version flock anthrazit D3AT/D9AT grau D3TT/D9TT marine-blau D3DL/D9DL |
=Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1997 | 51428237853 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1997 | 51428237854 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1997 | 51428237855 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1997 | 51428237856 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1997 | 51428237857 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1997 | 51428237858 | $588.69 | ENDED | Shop at ECS Tuning | ||
| 03 | Grip bracket | 2 | 09/1997 | 51218156538 | $0.92 | Shop at ECS Tuning | ||||
| 04 | Blind rivet | 4 | 09/1997 | 51218199602 | $0.52 | Shop at ECS Tuning | ||||
| 05 | Grip support | 2 | 09/1997 | 51418156532 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Bar left | 1 | 09/1997 | 51428172211 | $7.87 | Shop at ECS Tuning | ||||
| 06 | Bar right | 1 | 09/1997 | 51428172212 | $7.87 | Shop at ECS Tuning | ||||
| 07 | Left rear loudspeaker cover | SCHWARZ | 1 | 09/1997 | 51428196573 | $7.48 | Shop at ECS Tuning | |||
| 07 | Rear right loudspeaker cover | SCHWARZ | 1 | 09/1997 | 51428196574 | $7.48 | Shop at ECS Tuning | |||
| 07 | Left rear loudspeaker cover | MARINEBLAU | 1 | 09/1997 | 51428196575 | $7.53 | ENDED | Shop at ECS Tuning | ||
| 07 | Rear right loudspeaker cover | MARINEBLAU | 1 | 09/1997 | 51428196576 | $7.53 | ENDED | Shop at ECS Tuning | ||
| 07 | Left rear loudspeaker cover | SANDBEIGE | 1 | 09/1997 | 51428196577 | $7.37 | Shop at ECS Tuning | |||
| 07 | Rear right loudspeaker cover | SANDBEIGE | 1 | 09/1997 | 51428196578 | $7.48 | ENDED | Shop at ECS Tuning | ||
| 07 | Left rear loudspeaker cover | DUNKELGRUEN | 1 | 09/1997 | 51428196579 | $7.53 | ENDED | Shop at ECS Tuning | ||
| 07 | Rear right loudspeaker cover | DUNKELGRUEN | 1 | 09/1997 | 51428196580 | $7.48 | ENDED | Shop at ECS Tuning | ||
| 08 | Spring nut | 6 | 09/1997 | 64111364257 | $0.62 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 530i Rr door trim,cloth/leatherette,side airb?
- This technical diagram illustrates the Rr door trim,cloth/leatherette,side airb within the Vehicle trim group for the 5 Series E39 530i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel, rear, left (Part #51428237809).
- Which models use the hardware listed in this Rr door trim,cloth/leatherette,side airb?
- The hardware and components featured in the Rr door trim,cloth/leatherette,side airb are specific to the 5 Series E39 530i produced during 2003. These technical specifications ensure that parts like the Door trim panel, rear, left (51428237809) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rr door trim,cloth/leatherette,side airb assembly?
- Each item in the Rr door trim,cloth/leatherette,side airb corresponds to the numbered list below the illustration. For the 5 Series E39 530i, you can identify the Door trim panel, rear, left by locating its position on the schematic, which then links to the official BMW part number 51428237809 for the Vehicle trim section.
