M Trim, rear for BMW 3 Series E46 320i (2005)
This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | M | 1 | 51122492223 | $489.40 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122293990 | +core | Shop at ECS Tuning | ||||
| 01 | Bumper trim panel, painted, rear | CODE - UNI/MET. | 1 | 51120002105 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122293990 | +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||

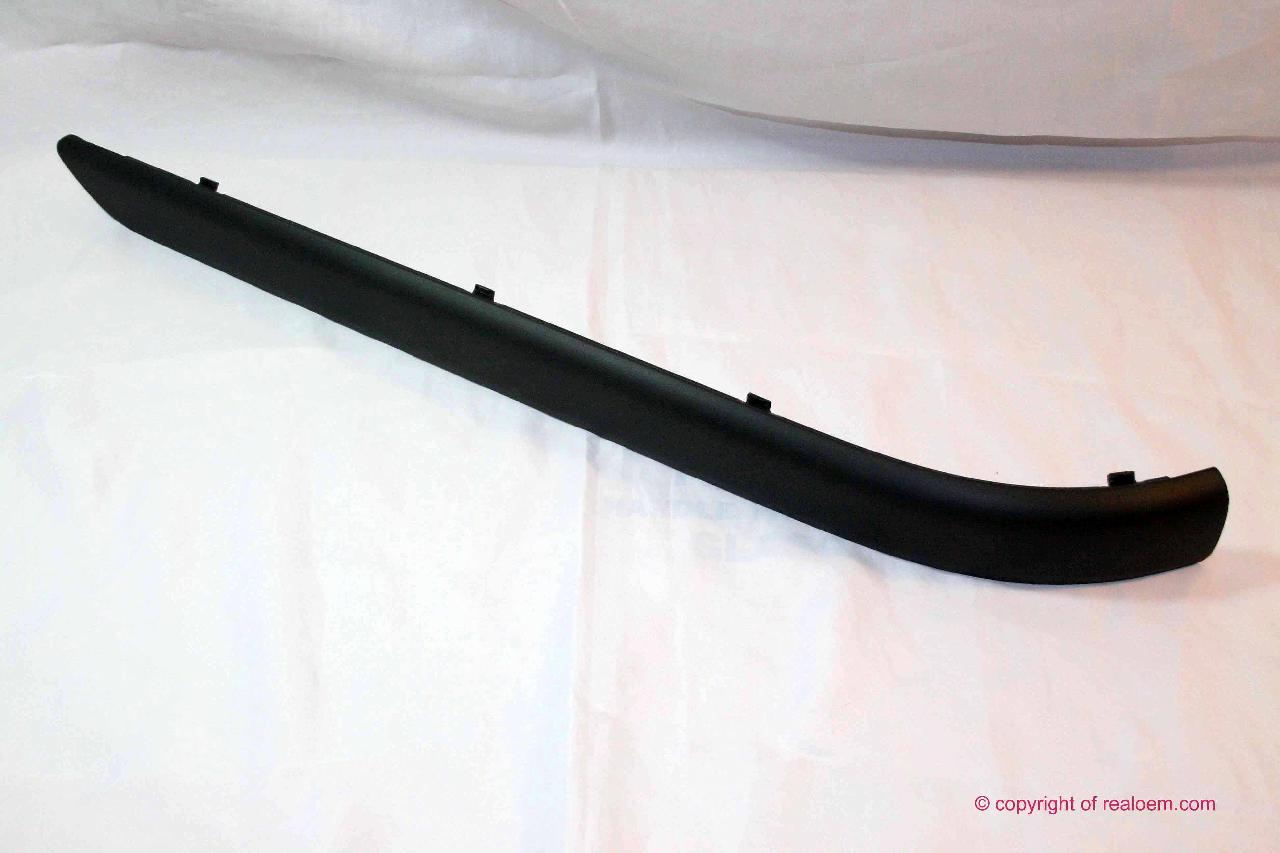

| 02 | Protective rubber strip, lft rear bumper | 1 | 51128195315 | $26.03 | Shop at ECS Tuning | |||||
| 02 | Protective rubber strip,rght rear bumper | 1 | 51128195316 | $26.03 | Shop at ECS Tuning | |||||
| 03 | Protect.rubber strip,centre rear bumper | 1 | 51128195317 | $27.80 | Shop at ECS Tuning | |||||
| 04 | Flap, towing eye, primed | M | 1 | 51122493939 | $10.36 | Shop at ECS Tuning | ||||
| 04 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 51120002106 | $55.89 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 05 | Cover, lower part center | M | 1 | 51122492225 | $35.95 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) and M Aerodynamics package |
S508A=Yes S715A=Yes |
|||||||||
| 06 | Cover, lower part center | M | 1 | 51122492229 | $33.70 | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable and M Aerodynamics package |
S235A=Yes S715A=Yes |
|||||||||
| 07 | Frame | M | 1 | 51122251375 | $10.05 | Shop at ECS Tuning | ||||
| 08 | Clamp | 2 | 51121946136 | $0.79 | Shop at ECS Tuning | |||||
| 09 | Trailer hitch flap | M | 1 | 51122694948 | $41.39 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 10 | Support fender left | 1 | 51128195321 | $3.45 | Shop at ECS Tuning | |||||
| 10 | Support fender right | 1 | 51128195322 | $3.45 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M6 | 4 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 12 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Expanding rivet | X | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 15 | Left bracket | 1 | 01/1999 | 51127000347 | $1.02 | Shop at ECS Tuning | ||||
| 15 | Right bracket | 1 | 01/1999 | 51127000348 | $1.02 | Shop at ECS Tuning | ||||
| 16 | Self-locking hex nut | M6 | 2 | 01/1999 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 17 | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122293990 | +core | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
