M cover for rocker panel / wheel arch for BMW 3 Series E46 330xd (2005)

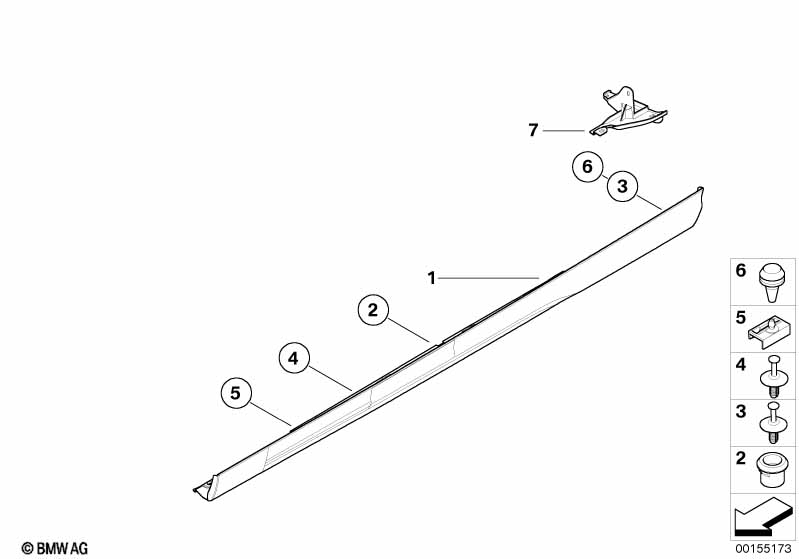

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports package or M Sports package II or M Aerodynamics package or Aerodynamics package |
P337A=Yes S338A=Yes S715A=Yes S716A=Yes |
|||||||||
| 01 | Primed left outer kick panel | M | 1 | 51712693225 | $148.00 | Shop at ECS Tuning | ||||
| 01 | Primed right door sill trim panel | M | 1 | 51712693226 | $148.00 | Shop at ECS Tuning | ||||
| 01 | Painted left outer kick panel | CODE - UNI/MET. | 1 | 51710002126 | $111.60 | ENDED, +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | Painted right door sill trim panel | CODE - UNI/MET. | 1 | 51710002127 | $95.98 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 02 | Grommet, green | D=9,1MM | X | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | GRAU | 2 | 51118174184 | $0.43 | Shop at ECS Tuning | ||||
| 04 | Expanding rivet | X | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 05 | Clamp | NATUR | 12 | 51718184574 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Plug | 4 | 51711927439 | $0.58 | Shop at ECS Tuning | |||||
| 07 | Covering left | 1 | 51718219167 | $7.22 | Shop at ECS Tuning | |||||
| 07 | Covering right | 1 | 51718219168 | $7.22 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
