Lateral trunk floor trim panel for BMW 7 Series G12 740Le (2019)

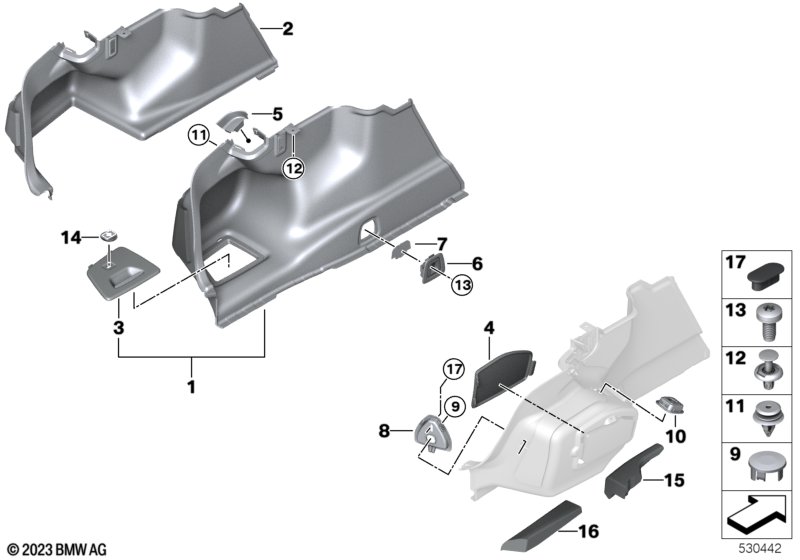

This Lateral trunk floor trim panel technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Le. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Panel wheel housing part.trunk left | PHEV | 1 | 51477345609 | NoS | Shop at ECS Tuning | ||||
| 02 | Panel wheel housing part.trunk right | PHEV | 1 | 51477465444 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover emergency unlocking | 1 | 51477381926 | Shop at ECS Tuning | ||||||
| -- | Trim cover for button | 1 | 51477396474 | Shop at ECS Tuning | ||||||
| Without cutout for S5DSA. A cutout is created in th. |
||||||||||
| 02 | Panel wheel housing part.trunk right | PHEV | 1 | 51477345610 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 02 | Panel wheel housing part.trunk right | PHEV | 1 | 51477465444 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover emergency unlocking | 1 | 51477381926 | Shop at ECS Tuning | ||||||
| -- | Trim cover for button | 1 | 51477396474 | Shop at ECS Tuning | ||||||
| For vehicles with Executive Drive Pro |
S2VSA=No |
|||||||||
| 04 | Cover, power distribution box | 1 | 51477410732 | Shop at ECS Tuning | ||||||
| 05 | Covering right | 1 | 51477344688 | Shop at ECS Tuning | ||||||
| 05 | Covering left | 1 | 51477344687 | Shop at ECS Tuning | ||||||
| 06 | Tie-down ring | 2 | 51477348517 | Shop at ECS Tuning | ||||||
| 07 | Fastening loop cap | 2 | 51477361448 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling or Emergency release, luggage compartment |
S3ACA=Yes S5DSA=Yes |
|||||||||
| 08 | Cover emergency unlocking | 1 | 51477381926 | Shop at ECS Tuning | ||||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 09 | Trim cover for button | 1 | 51477396474 | Shop at ECS Tuning | ||||||
| 10 | Socket mount | SCHWARZ | 1 | 51476964057 | $4.30 | Shop at ECS Tuning | ||||
| 11 | Clip Natur | 2 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 12 | Expanding rivet | 4 | 07147401727 | Shop at ECS Tuning | ||||||
| 13 | Screw | V-M8GFX18-SP-10 | 2 | 07129908674 | Shop at ECS Tuning | |||||
| 14 | Symbol first-aid kit | 1 | 51477433566 | Shop at ECS Tuning | ||||||
| 15 | Pad, side member, left | 1 | 51477344689 | Shop at ECS Tuning | ||||||
| 15 | Pad, side member, front right | 1 | 51477350998 | Shop at ECS Tuning | ||||||
| 16 | Pad, side member, rear right | 1 | 51477351000 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
