Emblems / letterings for BMW 3 Series E46 M3 (2002)

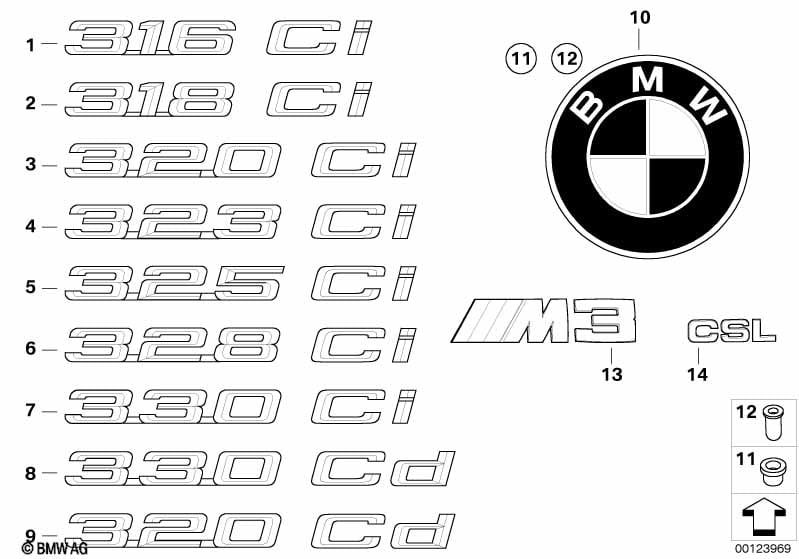

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only applies to trunk lid | ||||||||||

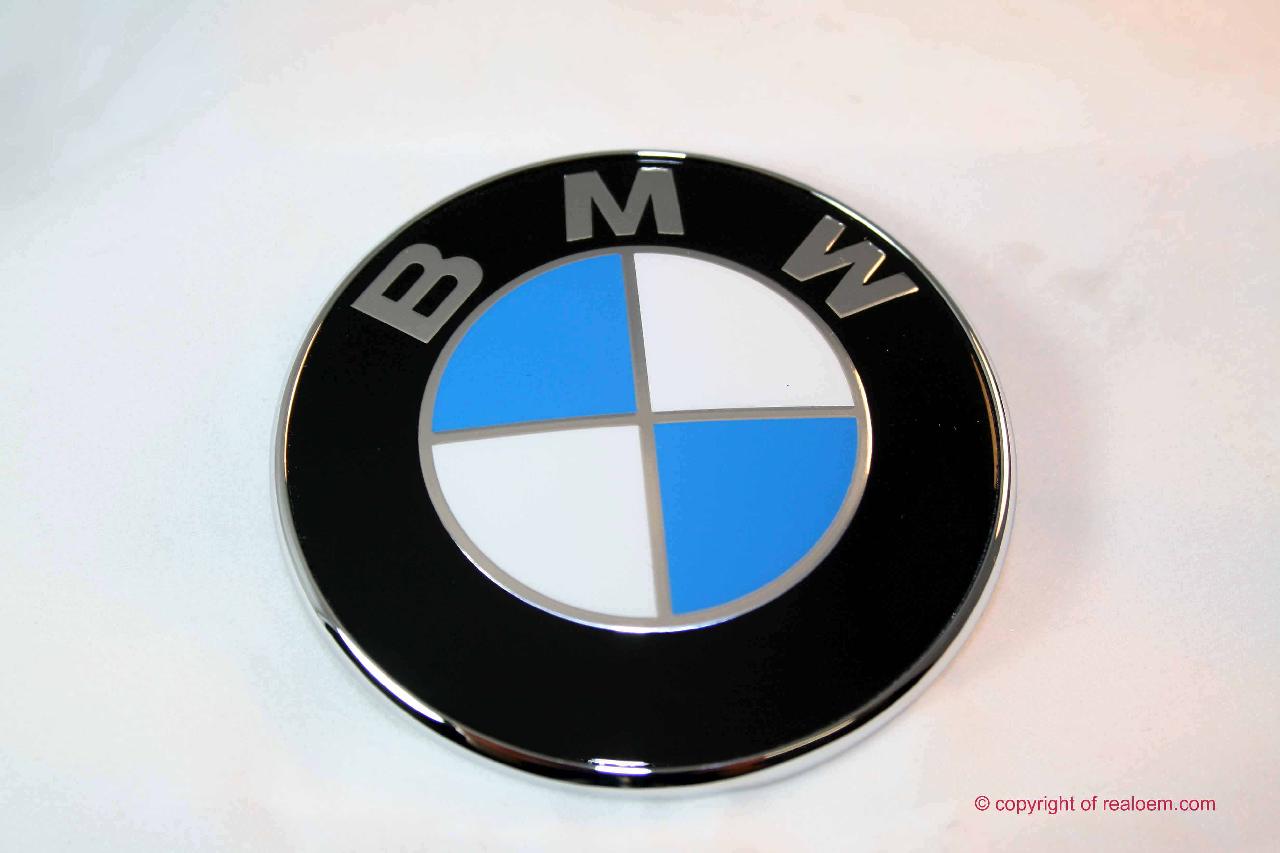

| 10 | Badge | BMW Ø 74MM | 1 | 51148219237 | $30.43 | Shop at ECS Tuning | ||||
| only applies to hood | ||||||||||
| 10 | Badge | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 11 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| only applies to trunk lid | ||||||||||

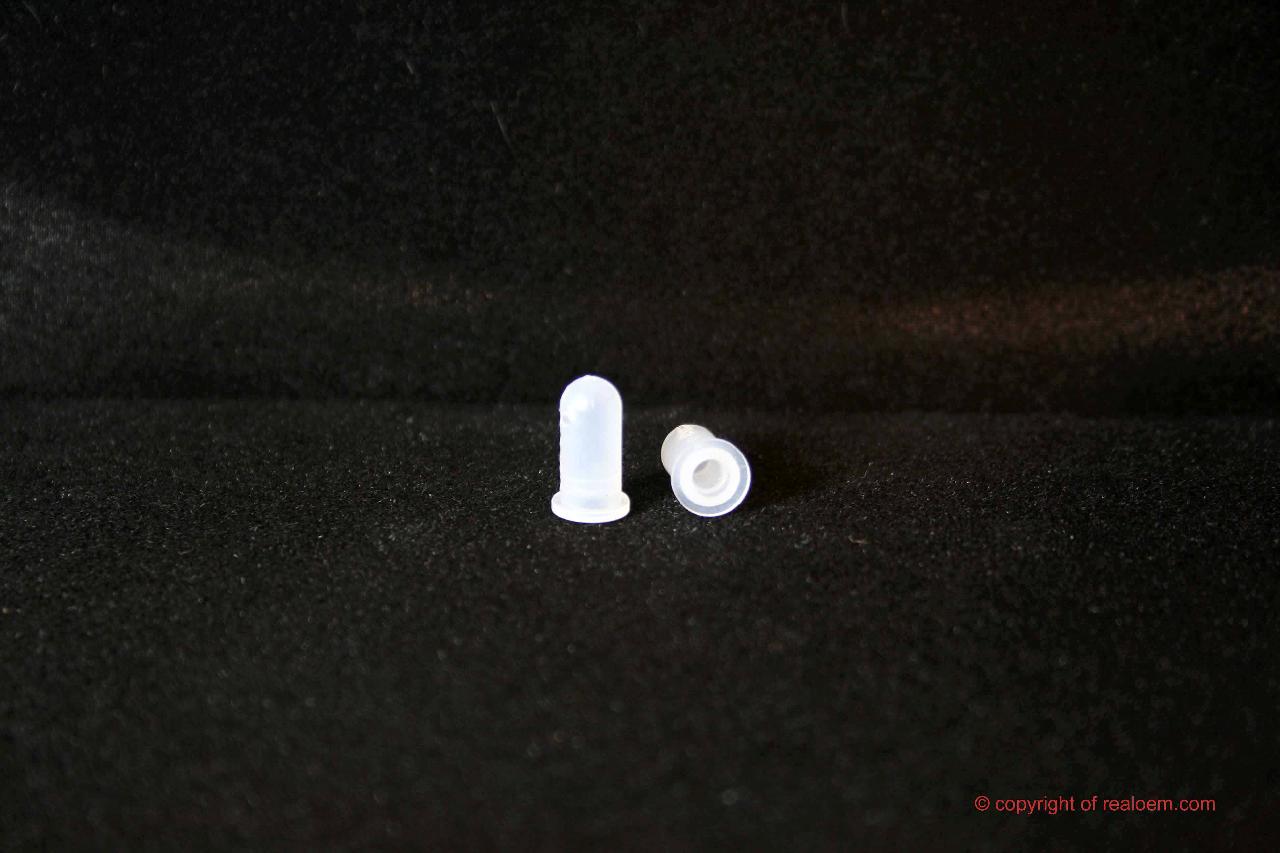

| 12 | Grommet | 2 | 51148209932 | $0.22 | Shop at ECS Tuning | |||||
| 13 | Emblem adhered rear | - M3 - | 1 | 51147893655 | $28.82 | Shop at ECS Tuning | ||||
