Interior trim finishers for BMW 3 Series E46 M3 (2002)

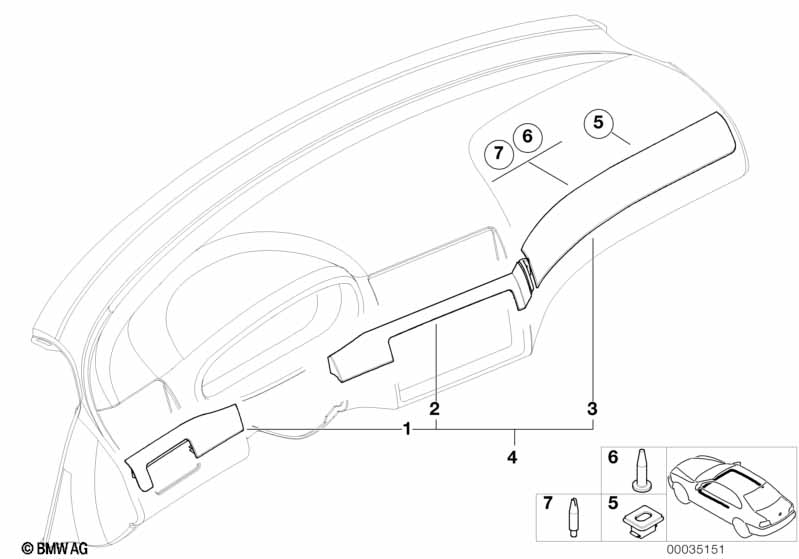

This Interior trim finishers technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Fine wood trim and Fine wood trim |
S435A=No S438A=No |
||||||||
| 01 | Decor strip,paint.tita.,instr. panel lft | 1 | 03/2001 | 51457904347 | $19.00 | Shop at ECS Tuning | ||||
| For vehicles with Interior mouldings, Alu Shadow, brushed |
S737A=Yes |
|||||||||
| 01 | Decorative strip, alum., I-panel, left | ALU SHADOW | 1 | 03/2002 | 51457895813 | $65.00 | +core | Shop at ECS Tuning | ||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 01 | Decorative strip, alum., I-panel, left | SILVER CUBE | 1 | 03/2002 | 51457895407 | $67.50 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Interior mouldings, Alu Shadow, brushed |
S737A=Yes |
|||||||||
| 02 | Decorative strip, alum., I-panel, center | ALU SHADOW | 1 | 03/2002 | 51457895817 | $76.50 | +core | Shop at ECS Tuning | ||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 02 | Decorative strip, alum., I-panel, center | SILVER CUBE | 1 | 03/2002 | 51457895411 | $76.50 | Shop at ECS Tuning | |||
| For vehicles with Interior trim strip in Titan Shadow |
S771A=Yes |
|||||||||
| 02 | Decor strip,paint. tita.,instr.pan. cntr | 1 | 03/2001 | 51457904351 | $23.75 | Shop at ECS Tuning | ||||
| 03 | Decor strip,paint.tita.,instr. panel ri. | 1 | 03/2001 | 51457904348 | $29.00 | Shop at ECS Tuning | ||||
| For vehicles with Interior mouldings, Alu Shadow, brushed |
S737A=Yes |
|||||||||
| 03 | Decorative strip, alum., I-panel, right | ALU SHADOW | 1 | 03/2002 | 51457895815 | $101.95 | Shop at ECS Tuning | |||
| For vehicles with Interior moldings Alu Silver Cube |
S770A=Yes |
|||||||||
| 03 | Decorative strip, alum., I-panel, right | SILVER CUBE | 1 | 03/2002 | 51457895408 | $102.95 | ENDED | Shop at ECS Tuning | ||
| 04 | Set of decorative strips, aluminium | SILVER CUBE | 1 | 03/2002 | 51457895405 | $263.95 | ENDED | Shop at ECS Tuning | ||
| 05 | Insert | ROT | 7 | 51458266814 | $0.85 | Shop at ECS Tuning | ||||
| 06 | Pin | D=6X25 | X | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Threaded bolt | D=6X30 | X | 51458266813 | $1.02 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
