Door trim panel for BMW 3 Series E46 M3 (2002)

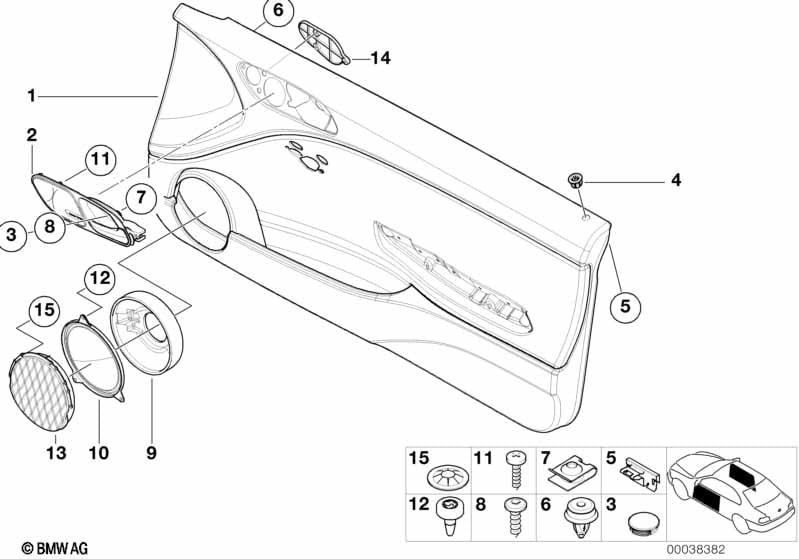

This Door trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Deleted, side airbag and Leather High/black |
S259A=Yes V5SW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 09/2001 | 51417048893 | $1457.75 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather right | SCHWARZ | 1 | 09/2001 | 51417048894 | $892.80 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Deleted, side airbag and Leather High/light gelb |
S259A=Yes V5LT=Yes |
|||||||||
| 01 | Door lining leather left | LIGHTGELB | 1 | 09/2001 | 51417048897 | $892.80 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather right | LIGHTGELB | 1 | 09/2001 | 51417048898 | $892.80 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Deleted, side airbag and Fabric/leather "Gran Turismo/traum-rot" |
S259A=Yes E4TL=Yes |
|||||||||
| 01 | Door trim panel left | TRAUMROT | 1 | 09/2001 | 51417048775 | $371.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel right | TRAUMROT | 1 | 09/2001 | 51417048776 | $371.63 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Deleted, side airbag and Leather Montana/basic equip/mahagoni |
S259A=Yes N6NG=Yes |
|||||||||
| 01 | Door trim panel left | NATURBRAUN | 1 | 09/2001 | 51417048783 | $961.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel right | NATURBRAUN | 1 | 09/2001 | 51417048784 | $961.02 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Deleted, side airbag and Leather High/brombeer |
S259A=Yes V5BB=Yes |
|||||||||
| 01 | Door lining leather left | BROMBEER | 1 | 09/2001 | 51417048895 | $892.80 | ENDED, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather right | BROMBEER | 1 | 09/2001 | 51417048896 | $892.80 | ENDED, NoS | Shop at ECS Tuning | ||
| For vehicles with Deleted, side airbag and Fabric Tex 2000/brombeer |
S259A=Yes J1BB=Yes |
|||||||||
| 01 | Door trim panel left | BROMBEER | 1 | 09/2001 | 51417048835 | $371.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel right | BROMBEER | 1 | 09/2001 | 51417048836 | $371.63 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Deleted, side airbag and Fabric Tex 2000/anthracite |
S259A=Yes J1AT=Yes |
|||||||||
| 01 | Door trim panel left | ANTHRAZIT | 1 | 09/2001 | 51417048819 | $371.63 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel right | ANTHRAZIT | 1 | 09/2001 | 51417048820 | $597.19 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Deleted, side airbag and Fabric Tex 2000/techno-grau |
S259A=Yes J1TF=Yes |
|||||||||
| 01 | Door trim panel left | TECHNOGRAU | 1 | 09/2001 | 51417048821 | $597.19 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel right | TECHNOGRAU | 1 | 09/2001 | 51417048822 | $371.63 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
