Lateral trim panel rear for BMW 3 Series E46 323Ci (2000)

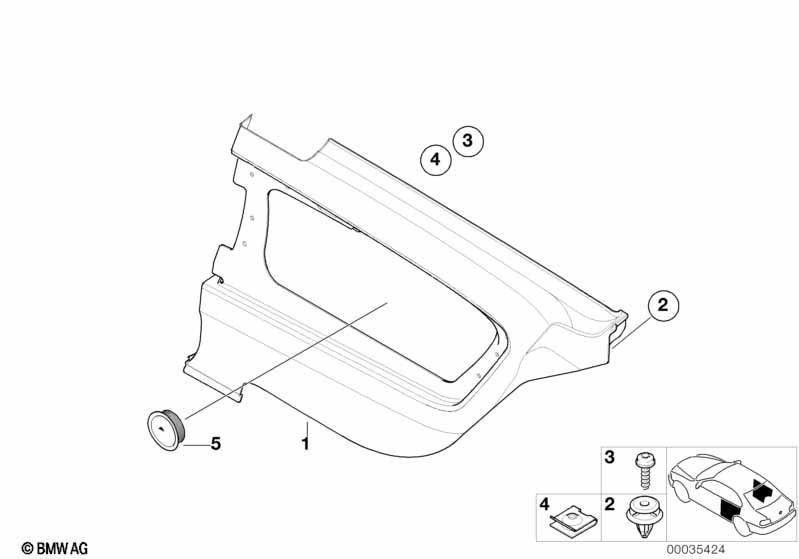

This Lateral trim panel rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth "Laser"/anthracite |
G7AT=Yes |
|||||||||
| 01 | Lateral trim panel rear left | ANTHRAZIT | 1 | 51437891761 | $271.37 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | ANTHRAZIT | 1 | 51437891762 | $271.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/anthracite |
E3AT=Yes |
|||||||||
| 01 | Lateral trim panel rear left | SCHWARZ | 1 | 51438224095 | $272.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | SCHWARZ | 1 | 51438224096 | $272.30 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb |
Q9LT=Yes |
|||||||||
| 01 | Lateral trim panel rear left | LIGHTGELB | 1 | 51438241347 | $465.37 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | LIGHTGELB | 1 | 51438241348 | $465.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,open rhombus/peach |
E8PP=Yes |
|||||||||
| 01 | Lateral trim panel rear left | SCHWARZ/PEACH | 1 | 51438244583 | $272.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | SCHWARZ/PEACH | 1 | 51438244584 | $272.30 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/grey |
E3TT=Yes |
|||||||||
| 01 | Lateral trim panel rear left | GRAU | 1 | 51438224097 | $272.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | GRAU | 1 | 51438224098 | $272.30 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 01 | Lateral trim panel rear left | TANINROT | 1 | 51438237753 | $488.27 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | TANINROT | 1 | 51438237754 | $469.84 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 01 | Lateral trim panel rear left | MINTGRUEN | 1 | 51438224101 | $272.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | MINTGRUEN | 1 | 51438224102 | $272.30 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/light beige |
Q9HC=Yes |
|||||||||
| 01 | Lateral trim panel rear left | HELLBEIGE | 1 | 51438241345 | $465.37 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | HELLBEIGE | 1 | 51438241346 | $465.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather "Gran Turismo/tief-grün" |
E4GG=Yes |
|||||||||
| 01 | Lateral trim panel rear left | TIEFGRUEN | 1 | 51438224117 | $272.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | TIEFGRUEN | 1 | 51438224118 | $272.30 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/grau |
N6TT=Yes |
|||||||||
| 01 | Lateral trim panel rear left | GRAU | 1 | 51438237749 | $488.27 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | GRAU | 1 | 51438237750 | $488.27 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/black |
Q9SW=Yes |
|||||||||
| 01 | Lateral trim panel rear left | SCHWARZ | 1 | 51438241343 | $465.37 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | SCHWARZ | 1 | 51438241344 | $465.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite |
E4AT=Yes |
|||||||||
| 01 | Lateral trim panel rear left | SCHWARZ | 1 | 51438224115 | $271.37 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | SCHWARZ | 1 | 51438224116 | $271.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Vinyl light beige 2 |
K4HC=Yes |
|||||||||
| 01 | Lateral trim panel rear left | HELLBEIGE | 1 | 51438241181 | $271.37 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | HELLBEIGE | 1 | 51438241182 | $271.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard bicolor Moda/lavendel |
E5LA=Yes |
|||||||||
| 01 | Lateral trim panel rear left | LAVENDEL | 1 | 51438241317 | $272.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | LAVENDEL | 1 | 51438241318 | $272.30 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/hell-beige 2 |
N6HC=Yes |
|||||||||
| 01 | Lateral trim panel rear left | HELLBEIGE | 1 | 51438237751 | $488.27 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | HELLBEIGE | 1 | 51438237752 | $488.27 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 01 | Lateral trim panel rear left | BIANCO NERO | 1 | 51437026085 | $417.38 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | BIANCO NERO | 1 | 51437026086 | $417.38 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia"/hell-beige 2 |
E9HC=Yes |
|||||||||
| 01 | Lateral trim panel rear left | HELLBEIGE | 1 | 51438238011 | $277.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | HELLBEIGE | 1 | 51438238012 | $277.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Imitation leather/black |
K4SW=Yes |
|||||||||
| 01 | Lateral trim panel rear left | SCHWARZ | 1 | 51438244533 | $271.37 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | SCHWARZ | 1 | 51438244534 | $271.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 01 | Lateral trim panel rear left | MARINEBLAU | 1 | 51438224099 | $272.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | MARINEBLAU | 1 | 51438224100 | $272.30 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/schwarz or Leather M-texture/Alcantara/anthrazit |
N6SW=Yes X1AT=Yes |
|||||||||
| 01 | Lateral trim panel rear left | SCHWARZ/SCHWARZ | 1 | 51438237747 | $488.27 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel rear right | SCHWARZ/SCHWARZ | 1 | 51438237748 | $488.27 | ENDED | Shop at ECS Tuning | |||
| 02 | Clip Natur | 8 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 02 | Clip | GRAU | 6 | 51437001492 | $0.42 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST4,8X20MM | 4 | 07149144231 | $0.32 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,8-11-ZN | 4 | 07129904217 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Cover Loudspeaker | SCHWARZ | 2 | 65138376198 | $7.73 | Shop at ECS Tuning | ||||
| 05 | Cover Loudspeaker | GRAU | 2 | 65138376199 | $7.73 | Shop at ECS Tuning | ||||
| 05 | Cover Loudspeaker | HELLBEIGE | 2 | 65138376201 | $7.73 | Shop at ECS Tuning | ||||
| For vehicles with Leather, Walknappa/laguna seca blau |
N5LS=Yes |
|||||||||
| 05 | Cover Loudspeaker | LAGUNA SECA | 2 | 65137892655 | $7.48 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Montana/basic equip/taninrot |
N6TD=Yes |
|||||||||
| 05 | Cover Loudspeaker | TANINROT | 2 | 65138376202 | $7.73 | Shop at ECS Tuning | ||||
| For vehicles with Cloth flock "Raute"/mint-green |
E3AP=Yes |
|||||||||
| 05 | Cover Loudspeaker | MINT | 2 | 65138376203 | $7.48 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Walknappa kiwi |
N5OV=Yes |
|||||||||
| 05 | Cover Loudspeaker | KIWI | 2 | 65137892656 | $7.48 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather, Walknappa/zimt |
N5ZM=Yes |
|||||||||
| 05 | Cover Loudspeaker | ZIMT | 2 | 65137892657 | $7.73 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Bianco-Nero"/anthracite/w |
H7BC=Yes |
|||||||||
| 05 | Cover Loudspeaker | PERLGRAU | 2 | 65136911463 | $7.48 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute"/navy blue |
E3DL=Yes |
|||||||||
| 05 | Cover Loudspeaker | MARINEBLAU | 2 | 65138376200 | $7.48 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Mosaico expanded/lightgelb or Leather High/light gelb |
Q9LT=Yes V5LT=Yes |
|||||||||
| 05 | Cover Loudspeaker | LIGHTGELB | 2 | 65138376204 | $7.73 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323Ci Lateral trim panel rear?
- This technical diagram illustrates the Lateral trim panel rear within the Vehicle trim group for the 3 Series E46 323Ci produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Lateral trim panel rear left (Part #51437891761).
- Which models use the hardware listed in this Lateral trim panel rear?
- The hardware and components featured in the Lateral trim panel rear are specific to the 3 Series E46 323Ci produced during 2000. These technical specifications ensure that parts like the Lateral trim panel rear left (51437891761) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lateral trim panel rear assembly?
- Each item in the Lateral trim panel rear corresponds to the numbered list below the illustration. For the 3 Series E46 323Ci, you can identify the Lateral trim panel rear left by locating its position on the schematic, which then links to the official BMW part number 51437891761 for the Vehicle trim section.
