Edge protector / Trim for entry for BMW 3 Series E46 M3 (2002)

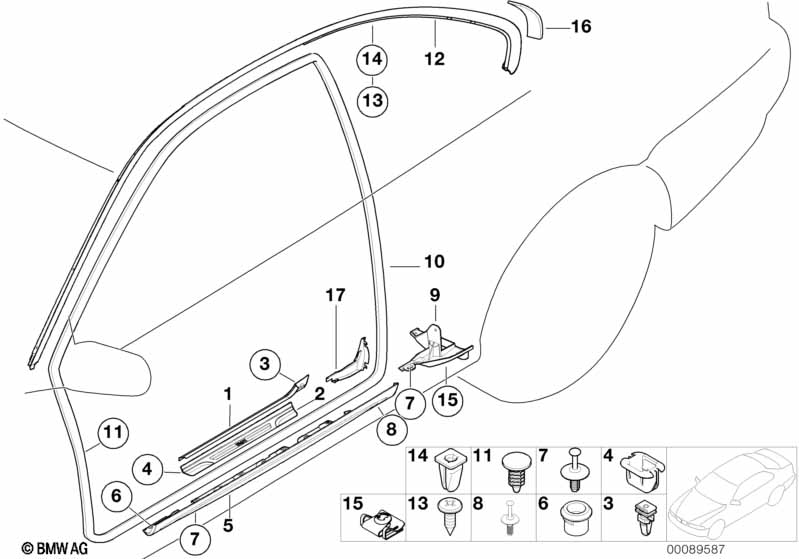

This Edge protector / Trim for entry technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover strip, entrance, interior, left | SCHWARZ | 1 | 51478239959 | $21.40 | Shop at ECS Tuning | ||||
| 01 | Cover strip, entrance, interior, right | SCHWARZ | 1 | 51478239960 | $21.40 | Shop at ECS Tuning | ||||
| 01 | Cover strip, entrance, interior, left | HELLBEIGE | 1 | 51478239961 | $21.40 | Shop at ECS Tuning | ||||
| 01 | Cover strip, entrance, interior, right | HELLBEIGE | 1 | 51478239962 | $21.40 | Shop at ECS Tuning | ||||
| 01 | Cover strip, entrance, interior, left | HELLGRAU | 1 | 51478239963 | $21.40 | Shop at ECS Tuning | ||||
| 01 | Cover strip, entrance, interior, right | HELLGRAU | 1 | 51478239964 | $21.40 | Shop at ECS Tuning | ||||
| 02 | Cover, entrance, left | M3 | 1 | 51477891927 | $85.00 | Shop at ECS Tuning | ||||
| 02 | Cover, entrance, right | M3 | 1 | 51477891928 | $85.00 | Shop at ECS Tuning | ||||
| 02 | Cover, entrance, left | M | 1 | 51477891929 | $67.22 | Shop at ECS Tuning | ||||
| 02 | Cover, entrance, right | M | 1 | 51477891930 | $67.22 | Shop at ECS Tuning | ||||
| For vehicles with Individual BMW identification |
S778A=Yes |
|||||||||
| 02 | Cover, entrance, left | BMW INDIVIDUAL | 1 | 51477893601 | $106.41 | Shop at ECS Tuning | ||||
| 02 | Cover, entrance, right | BMW INDIVIDUAL | 1 | 51477893602 | $106.41 | Shop at ECS Tuning | ||||
| 03 | Sill strip clip | 16 | 51478234047 | $0.44 | Shop at ECS Tuning | |||||
| 04 | Clip | 10 | 51478229316 | $0.55 | Shop at ECS Tuning | |||||
| 05 | Primed left outer kick panel | M | 1 | 51717890011 | $144.34 | +core | Shop at ECS Tuning | |||
| 05 | Primed right door sill trim panel | M | 1 | 51717890012 | $144.34 | Shop at ECS Tuning | ||||
| For vehicles with Aerodynamics package |
S716A=Yes |
|||||||||
| 05 | Primed left outer kick panel | - M - | 1 | 51717893119 | $144.34 | Shop at ECS Tuning | ||||
| 05 | Primed right door sill trim panel | - M - | 1 | 51717893120 | $144.34 | +core | Shop at ECS Tuning | |||
| 06 | Grommet, green | D=9,1MM | 24 | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | 20 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | GRAU | 2 | 51118174184 | $0.43 | Shop at ECS Tuning | ||||
| 09 | Covering left | 1 | 51718244045 | $7.03 | Shop at ECS Tuning | |||||
| 09 | Covering right | 1 | 51718244046 | $7.03 | Shop at ECS Tuning | |||||
| 10 | Edge protection left | SCHWARZ | 1 | 51717161687 | $377.19 | Shop at ECS Tuning | ||||
| 10 | Edge protection right | SCHWARZ | 1 | 51717161688 | $377.19 | Shop at ECS Tuning | ||||
| 11 | Plug | D=4,00 MM | 2 | 51718195651 | $0.26 | Shop at ECS Tuning | ||||
| 12 | Finisher, side frame left | SCHWARZ | 1 | 12/1999 | 51717003935 | $290.44 | Shop at ECS Tuning | |||
| 12 | Finisher, side frame right | SCHWARZ | 1 | 12/1999 | 51717003936 | $290.78 | Shop at ECS Tuning | |||
| 12 | Finisher, side frame left | CHROM | 1 | 12/1999 | 51717003937 | $290.44 | Shop at ECS Tuning | |||
| 12 | Finisher, side frame right | CHROM | 1 | 12/1999 | 51717003938 | $290.78 | Shop at ECS Tuning | |||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 12 | Finisher, side frame left | GLANZSCHWARZ | 1 | 12/1999 | 51717030845 | $524.85 | Shop at ECS Tuning | |||
| 12 | Finisher, side frame right | GLANZSCHWARZ | 1 | 12/1999 | 51717030846 | $524.85 | Shop at ECS Tuning | |||
| 13 | Hex bolt | M5X14 | 24 | 07119904337 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | L=13 MM | 24 | 41009175577 | $0.19 | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | 32 | 51717013307 | $0.33 | Shop at ECS Tuning | |||||
| 14 | Expanding nut | 32 | 51717013308 | $0.26 | Shop at ECS Tuning | |||||
| 14 | Expanding nut | ST 4.8 WEISS | 24 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 14 | Expanding nut | L=15MM, DMAX=12 | 24 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Prestol-cage | ST3,9-ZNS3 | 24 | 07129904213 | $0.26 | Shop at ECS Tuning | ||||
| 16 | Sealing strip | 2 | 51717037260 | $0.67 | Shop at ECS Tuning | |||||
| 17 | Intermediate piece, left | M | 1 | 51717890511 | $4.70 | Shop at ECS Tuning | ||||
| 17 | Intermediate piece, right | M | 1 | 51717890512 | $4.70 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
