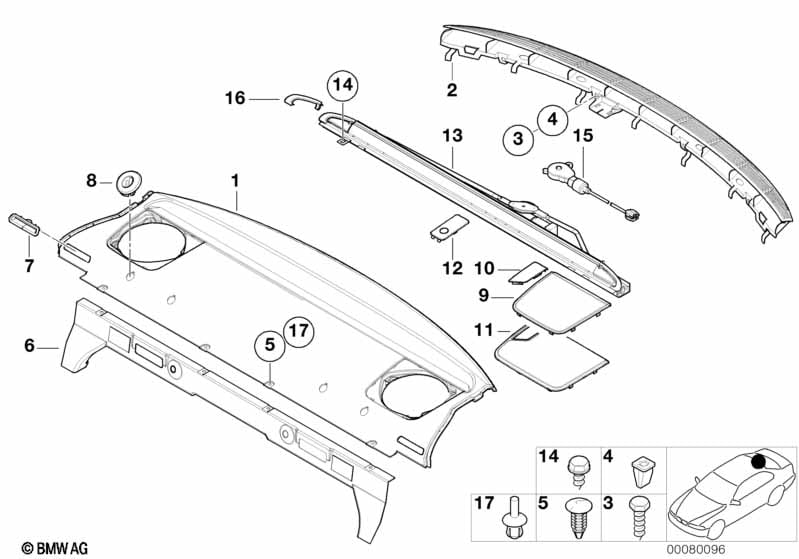

Rear window shelf / sun blind electr. for BMW 3 Series E46 M3 (2002)
This Rear window shelf / sun blind electr. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51466955325 | $229.48 | +core | Shop at ECS Tuning | |||
| 01 | Rear window shelf | GRAU | 1 | 51466955326 | $229.48 | +core | Shop at ECS Tuning | |||
| 01 | Rear window shelf | MINT | 1 | 51466955327 | $229.48 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | HELLBEIGE | 1 | 51466955328 | $229.48 | +core | Shop at ECS Tuning | |||
| 02 | Grid | ANTHRAZIT | 1 | 51468231127 | $24.90 | Shop at ECS Tuning | ||||
| 02 | Grid | GRAU | 1 | 51468231128 | $24.90 | Shop at ECS Tuning | ||||
| 02 | Grid | MINT | 1 | 51468231409 | $26.51 | ENDED | Shop at ECS Tuning | |||
| 02 | Grid | HELLBEIGE | 1 | 51468231410 | $24.90 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,2X16-Z2 | 4 | 07119901279 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,2X16 | 4 | 07119900753 | $0.24 | Shop at ECS Tuning | ||||
| 04 | Prestol-cage | ST4,2 | 4 | 07129901744 | Shop at ECS Tuning | |||||

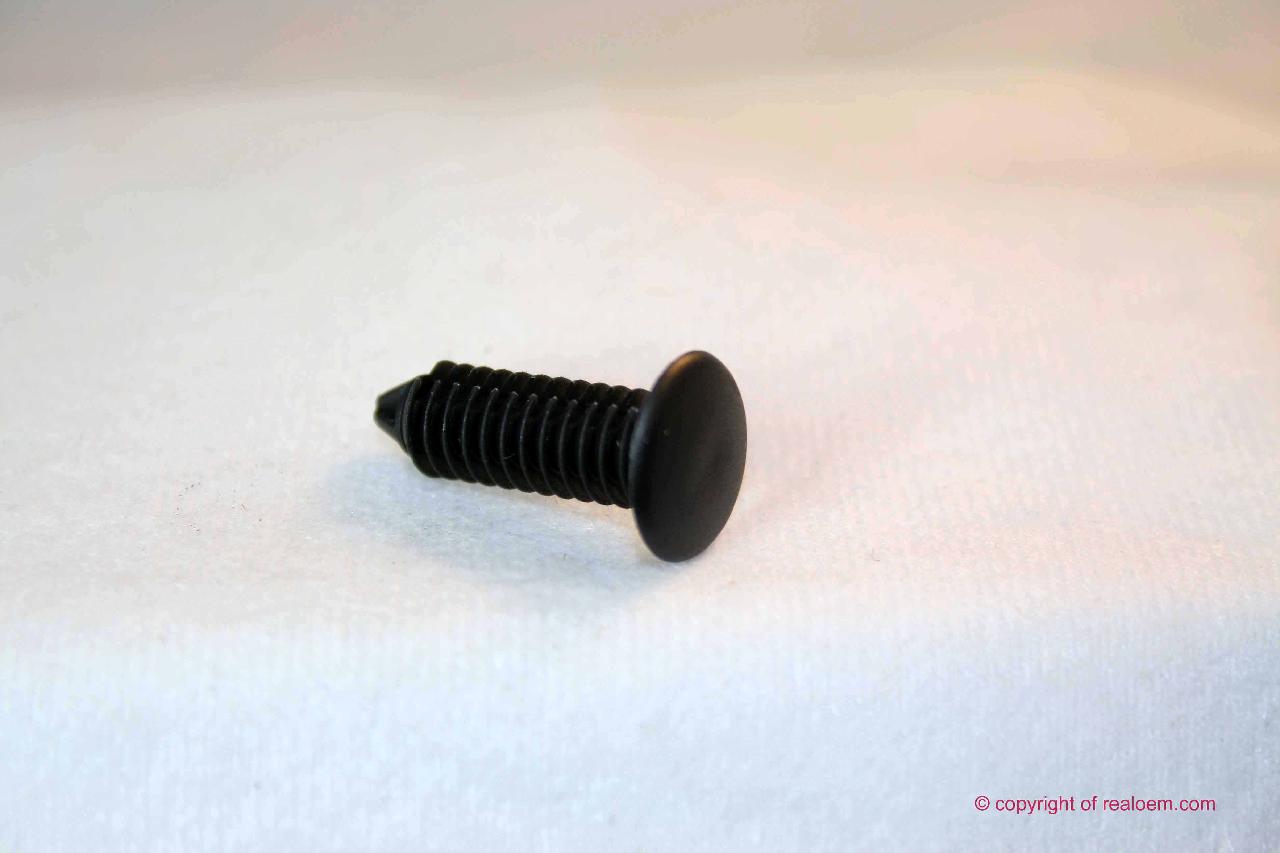

| 05 | Clip, black | 4 | 52201964201 | $0.38 | Shop at ECS Tuning | |||||
| 06 | Through-loading cross member trim | 1 | 51468204266 | $22.64 | Shop at ECS Tuning | |||||
| 07 | Cover, belt outlet | SCHWARZ | 2 | 51468213970 | $2.64 | Shop at ECS Tuning | ||||
| 07 | Cover, belt outlet | GRAU | 2 | 51468226502 | $2.64 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover, belt outlet | MINTGRUEN | 2 | 51468226504 | $2.40 | Shop at ECS Tuning | ||||
| 07 | Cover, belt outlet | HELLBEIGE | 2 | 51468226505 | $2.64 | Shop at ECS Tuning | ||||
| 08 | Head rest cover | SCHWARZ | 4 | 51468196403 | $0.88 | Shop at ECS Tuning | ||||
| 08 | Head rest cover | GRAU | 4 | 51468226506 | $0.88 | Shop at ECS Tuning | ||||
| 08 | Head rest cover | MINTGRUEN | 4 | 51468226508 | $0.80 | Shop at ECS Tuning | ||||
| 08 | Head rest cover | HELLBEIGE | 4 | 51468226509 | $0.88 | Shop at ECS Tuning | ||||
| 09 | Cover,loudspeaker top-hifi Harman Kardon | SCHWARZ | 2 | 51248222944 | $22.56 | Shop at ECS Tuning | ||||
| 09 | Cover,loudspeaker stereo/hifi system | SCHWARZ | 2 | 51468222943 | $16.25 | Shop at ECS Tuning | ||||
| 09 | Cover,loudspeaker stereo/hifi system | GRAU | 2 | 51468231129 | $16.25 | Shop at ECS Tuning | ||||
| 09 | Cover,loudspeaker stereo/hifi system | MINT | 2 | 51468231394 | $16.74 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover,loudspeaker stereo/hifi system | HELLBEIGE | 2 | 51468231395 | $16.25 | Shop at ECS Tuning | ||||
| 09 | Cover,loudspeaker top-hifi Harman Kardon | GRAU | 2 | 51468231411 | $22.56 | Shop at ECS Tuning | ||||
| 09 | Cover,loudspeaker top-hifi Harman Kardon | MINT | 2 | 51468231413 | $22.56 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover,loudspeaker top-hifi Harman Kardon | HELLBEIGE | 2 | 51468231414 | $22.56 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia or National version Canada |
L810A=Yes L838A=Yes |
|||||||||
| 10 | Cover, child protection left | ANTHRAZIT | 1 | 51468243667 | $9.18 | Shop at ECS Tuning | ||||
| 10 | Cover, child protection right | ANTHRAZIT | 1 | 51468243668 | $9.18 | Shop at ECS Tuning | ||||
| 10 | Cover, child protection left | GRAU | 1 | 51468243669 | $9.18 | Shop at ECS Tuning | ||||
| 10 | Cover, child protection right | GRAU | 1 | 51468243670 | $9.18 | Shop at ECS Tuning | ||||
| 10 | Cover, child protection left | MINTGRUEN | 1 | 51468243673 | $9.26 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover, child protection right | MINTGRUEN | 1 | 51468243674 | $9.26 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover, child protection left | HELLBEIGE | 1 | 51468243675 | $9.18 | Shop at ECS Tuning | ||||
| 10 | Cover, child protection right | HELLBEIGE | 1 | 51468243676 | $9.18 | Shop at ECS Tuning | ||||
| 11 | Cover, loudspeaker left | ANTHRAZIT | 1 | 51468243679 | $29.04 | Shop at ECS Tuning | ||||
| 11 | Cover, loudspeaker right | ANTHRAZIT | 1 | 51468243680 | $29.04 | Shop at ECS Tuning | ||||
| 11 | Cover, loudspeaker left | GRAU | 1 | 51468243681 | $29.04 | Shop at ECS Tuning | ||||
| 11 | Cover, loudspeaker right | GRAU | 1 | 51468243682 | $29.04 | Shop at ECS Tuning | ||||
| 11 | Cover, loudspeaker left | MINT | 1 | 51468243685 | $25.67 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover, loudspeaker right | MINT | 1 | 51468243686 | $25.67 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover, loudspeaker left | HELLBEIGE | 1 | 51468243687 | $29.04 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover, loudspeaker right | HELLBEIGE | 1 | 51468243688 | $29.04 | ENDED | Shop at ECS Tuning | |||
| 12 | Cover | SCHWARZ | 3 | 51467016803 | $9.18 | Shop at ECS Tuning | ||||
| 12 | Cover | GRAU | 3 | 51467016804 | $9.18 | Shop at ECS Tuning | ||||
| 12 | Cover | MINTGRUEN | 3 | 51467016805 | $8.50 | ENDED | Shop at ECS Tuning | |||
| 12 | Cover | HELLBEIGE 2 | 3 | 51467016806 | $9.18 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia or National version Canada |
L810A=Yes L838A=Yes |
|||||||||
| 12 | Cover | SCHWARZ | 1 | 51218213603 | $9.27 | Shop at ECS Tuning | ||||
| 12 | Cover | GRAU | 1 | 51468226510 | $9.18 | Shop at ECS Tuning | ||||
| 12 | Cover | MINTGRUEN | 1 | 51468226512 | $9.26 | ENDED | Shop at ECS Tuning | |||
| 12 | Cover | HELLBEIGE | 1 | 51468226513 | $9.18 | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear |
S415A=Yes |
|||||||||
| 13 | Roller sun shield | 1 | 51468223046 | $481.19 | Shop at ECS Tuning | |||||
| 14 | Fillister head screw | M5X10 | 3 | 07149149399 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear |
S415A=Yes |
|||||||||
| 15 | Drive sun blind | 1 | 67656916270 | $201.22 | Shop at ECS Tuning | |||||
| 16 | Covering left | 1 | 51468231417 | $0.66 | Shop at ECS Tuning | |||||
| 16 | Covering right | 1 | 51468231418 | $0.66 | Shop at ECS Tuning | |||||

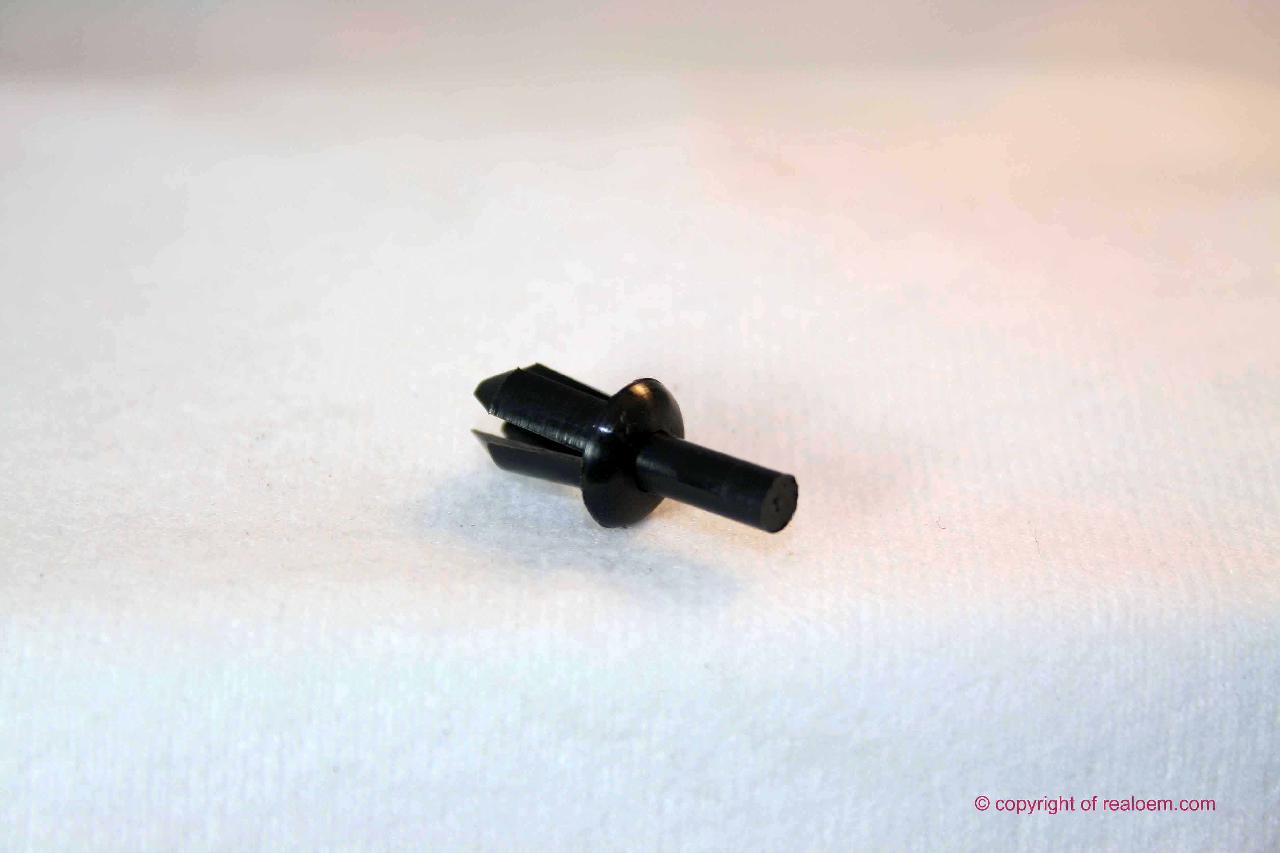

| 17 | Expanding rivet | 4 | 51467002606 | $0.45 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
