Lateral trunk floor trim panel for BMW 3 Series E46 M3 (2002)

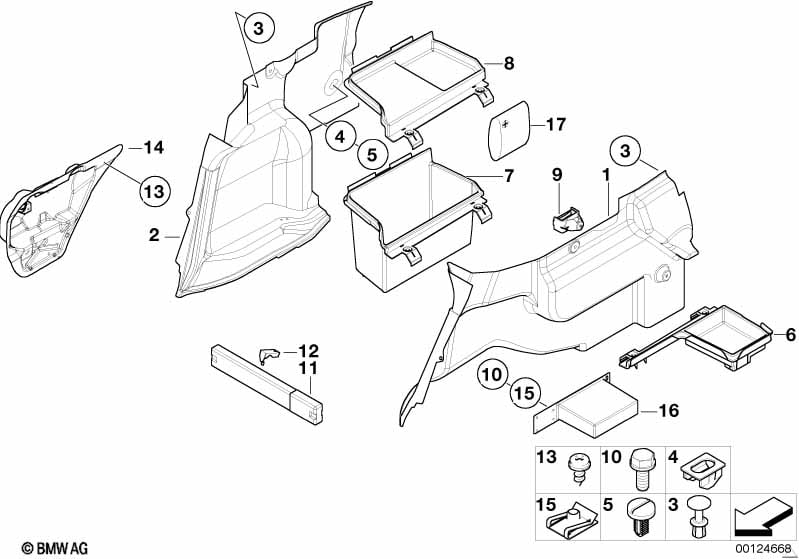

This Lateral trunk floor trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel left | 1 | 51478266567 | $54.75 | Shop at ECS Tuning | |||||
| For vehicles with On-board monitor with TV or Navigation system, radio or Navigation system Professional or CD changer for 6 CDs or Preparation, BMW 6-CD changer I-bus |
S602A=Yes S606A=Yes S609A=Yes S672A=Yes S692A=Yes |
|||||||||
| 01 | Trim panel left | 1 | 51478266569 | $87.79 | +core | Shop at ECS Tuning | ||||
| 02 | Trim panel right | 1 | 51478212400 | $54.75 | Shop at ECS Tuning | |||||
| 03 | Expanding rivet | SCHWARZ | 11 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 04 | Lock insert | 5 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 04 | Lock insert | 5 | 64111376327 | $0.80 | Shop at ECS Tuning | |||||
| 05 | Locking button | 5 | 51478248015 | $0.44 | Shop at ECS Tuning | |||||
| 06 | Trunk tray left | 1 | 51478193797 | $22.34 | Shop at ECS Tuning | |||||
| For vehicles with On-board monitor with TV or Navigation system, radio or Navigation system Professional or CD changer for 6 CDs or Preparation, BMW 6-CD changer I-bus |
S602A=Yes S606A=Yes S609A=Yes S672A=Yes S692A=Yes |
|||||||||
| 06 | Trunk tray left | 1 | 51478162577 | $22.34 | Shop at ECS Tuning | |||||
| 07 | luggage compartment liner right | 1 | 51478204078 | $28.25 | Shop at ECS Tuning | |||||
| For vehicles with Battery in luggage compartment |
S832A=Yes |
|||||||||
| 08 | cover, battery luggage compartment | 1 | 51478193803 | $28.75 | Shop at ECS Tuning | |||||
| 09 | Bracket for hazard warn. triangle | SCHWARZ | 1 | 51478265682 | $5.60 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M5X14 | 4 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X18 | 10 | 07119904058 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M5X14-8.8-ZNNIV | 4 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Warning triangle with container | ECE R27 | 1 | 71606770487 | Shop at ECS Tuning | |||||
| 12 | Locking bow | 1 | 51718215277 | $8.97 | Shop at ECS Tuning | |||||
| 13 | Fillister head self-tapping screw | ST4,8X13-Z1 | 8 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Inner left rear cover | 1 | 51488228987 | $22.75 | Shop at ECS Tuning | |||||
| 14 | Inner right rear cover | 1 | 51488228988 | $22.75 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 14 | Inner left rear cover | 1 | 51488244805 | $34.13 | +core | Shop at ECS Tuning | ||||
| 14 | Inner right rear cover | 1 | 51488244806 | $34.13 | +core | Shop at ECS Tuning | ||||
| 15 | Body nut | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor with TV or Navigation system, radio or Navigation system Professional or CD changer for 6 CDs or Preparation, BMW 6-CD changer I-bus |
S602A=Yes S606A=Yes S609A=Yes S672A=Yes S692A=Yes |
|||||||||
| 16 | Left oddments tray | 2 | 51478230573 | $11.20 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
