Trim panel, trunk floor for BMW 3 Series E46 M3 (2002)

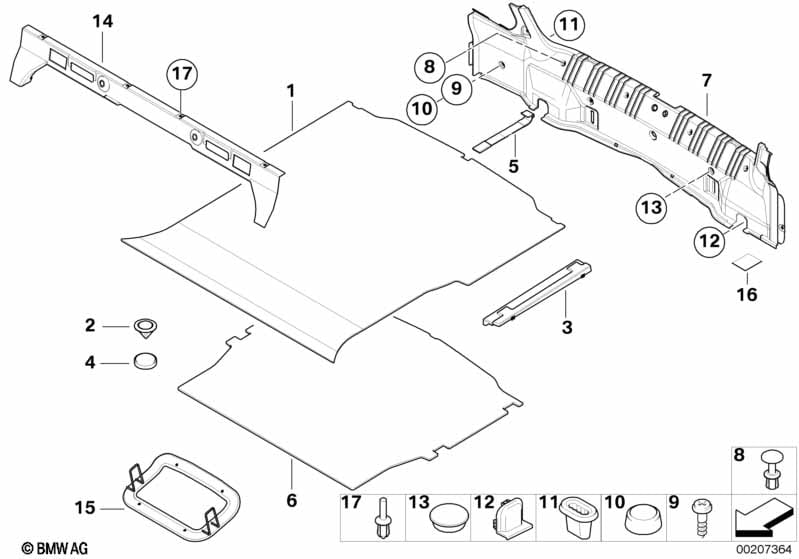

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk mat | 1 | 51478232347 | $77.05 | Shop at ECS Tuning | |||||
| 02 | Pad | H=50MM | 1 | 51471944899 | $3.37 | Shop at ECS Tuning | ||||
| 03 | Left base | 225ER RAD | 1 | 51478245099 | $14.68 | Shop at ECS Tuning | ||||
| 04 | Pad | 1 | 51478264043 | $2.27 | Shop at ECS Tuning | |||||
| 05 | Holding strap | 1 | 51478256162 | $5.60 | Shop at ECS Tuning | |||||
| 06 | removable panel for luggage compartment | 1 | 51478225327 | $77.05 | Shop at ECS Tuning | |||||
| 06 | Insulating mat | 1 | 51487894702 | $34.42 | Shop at ECS Tuning | |||||
| For vehicles with BMW light-alloy wheel star spokes 43 or BMW light alloy wheel, cross spoke 29 or BMW light-alloy wheel star spokes 44 or Spare wheel |
S273A=Yes S288A=Yes S290A=Yes S926A=Yes |
|||||||||
| 06 | removable panel for luggage compartment | 1 | 51478266559 | $87.79 | Shop at ECS Tuning | |||||
| 07 | Covering rear | 1 | 51478204070 | $54.75 | ENDED | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | SCHWARZ | 5 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 09 | Sheet metal screw | ST4,2X19 | 4 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Cap | SCHWARZ | 4 | 51161949793 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Grommet | 12X6,3 | 4 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Cover | 2 | 51478213602 | $1.67 | Shop at ECS Tuning | |||||
| 13 | Blind plug | D=15MM | 2 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 13 | Plug | SCHWARZ | 2 | 51718208355 | $0.26 | Shop at ECS Tuning | ||||
| 14 | Through-loading cross member trim | 1 | 51468204266 | $22.64 | Shop at ECS Tuning | |||||
| 15 | Reinforcement trunk floor front | 1 | 51717894229 | $186.52 | +core | Shop at ECS Tuning | ||||
| 16 | Set felt strip self-adhesive | 3 | 51452353024 | Shop at ECS Tuning | ||||||
| 17 | Expanding rivet | 4 | 51467002606 | $0.45 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
