Underhood shield for BMW MINI Cabrio F57 LCI JCW (2024)

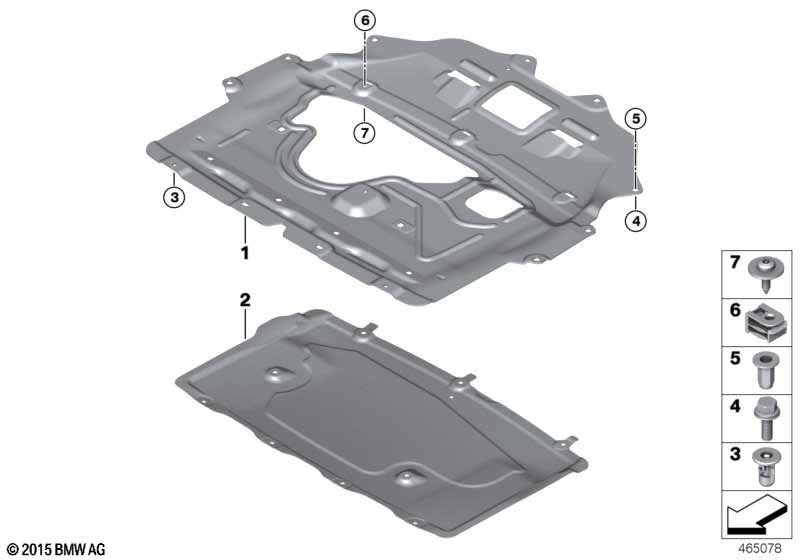

This Underhood shield technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Structural reinforcement panel | 1 | 51617391724 | Shop at ECS Tuning | ||||||
| 02 | Cover, stiffening plate front | 1 | 51717384760 | Shop at ECS Tuning | ||||||
| 03 | Expanding nut | L=18.4, DMAX=18 | 3 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M12X1,5-10.9 | 10 | 07147440172 | Shop at ECS Tuning | |||||
| 05 | Blind rivet nut, flat headed | M10 | 2 | 07147199279 | $1.78 | Shop at ECS Tuning | ||||
| 06 | C-clip for plastic nut | 9 | 07147417633 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | 9 | 07147367231 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 LCI JCW Underhood shield?
- This technical diagram illustrates the Underhood shield within the Vehicle trim group for the MINI Cabrio F57 LCI JCW produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Structural reinforcement panel (Part #51617391724).
- Which models use the hardware listed in this Underhood shield?
- The hardware and components featured in the Underhood shield are specific to the MINI Cabrio F57 LCI JCW produced during 2024. These technical specifications ensure that parts like the Structural reinforcement panel (51617391724) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Underhood shield assembly?
- Each item in the Underhood shield corresponds to the numbered list below the illustration. For the MINI Cabrio F57 LCI JCW, you can identify the Structural reinforcement panel by locating its position on the schematic, which then links to the official BMW part number 51617391724 for the Vehicle trim section.
