Sealing cap/plug for BMW MINI F55 Cooper (2015)

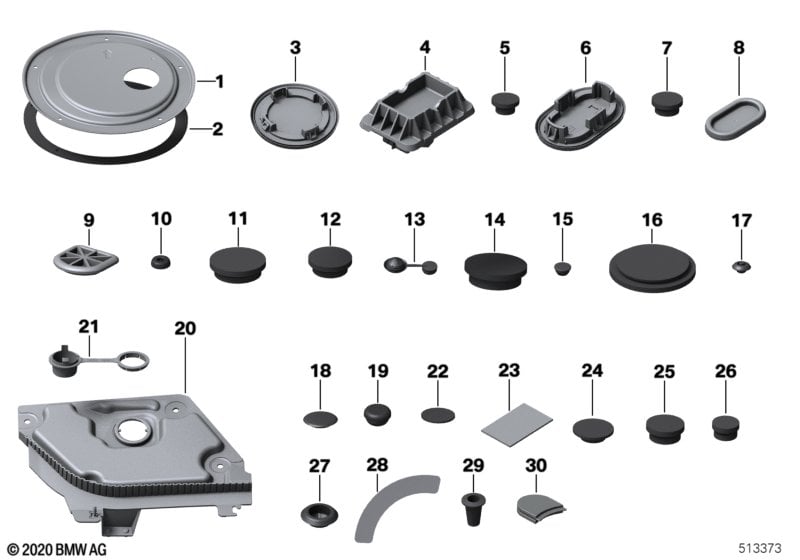

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the MINI F55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | cover, floor panel rear | 1 | 51717232053 | Shop at ECS Tuning | ||||||
| 02 | seal, cap | 1 | 51717232054 | Shop at ECS Tuning | ||||||
| 03 | Sealing cap for brake booster | 1 | 51717324344 | Shop at ECS Tuning | ||||||
| 04 | Support lifting platform | 4 | 51717169981 | $13.42 | Shop at ECS Tuning | |||||
| 05 | Blind plug | D=12MM | 35 | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 06 | Cover for steering column opening | 1 | 51477304362 | Shop at ECS Tuning | ||||||
| 07 | Blind plug | D=15MM | 15 | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| 08 | Plug | 26X52MM | 4 | 51713412220 | $1.03 | Shop at ECS Tuning | ||||
| 09 | Blind plug | 42X41,5MM | 1 | 51711507300 | $2.56 | Shop at ECS Tuning | ||||
| 10 | Blind plug | D=9.0MM | 6 | 07147133560 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Blind plug | D=25MM | X | 51717175886 | $0.63 | Shop at ECS Tuning | ||||
| 13 | Plug with slot | D=15MM | 4 | 51717180698 | $1.02 | Shop at ECS Tuning | ||||
| 14 | Blind plug | D=40MM | 2 | 51712258519 | $0.89 | Shop at ECS Tuning | ||||
| 15 | Blind plug | D=12MM | 6 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Blind plug | D=55MM | 2 | 61138353500 | $1.12 | Shop at ECS Tuning | ||||
| 17 | Blind plug | D=9MM | 24 | 07147324393 | Shop at ECS Tuning | |||||
| 18 | Blind plug | D=22MM | 3 | 51711855009 | $0.50 | Shop at ECS Tuning | ||||
| 19 | Blind plug | D=17MM | 4 | 51221924979 | $1.10 | Shop at ECS Tuning | ||||
| 20 | Battery cover | 1 | 51717317737 | Shop at ECS Tuning | ||||||
| 21 | Cap | 1 | 51717317817 | Shop at ECS Tuning | ||||||
| 22 | Base seal | D=30MM | 1 | 07147128618 | $0.87 | Shop at ECS Tuning | ||||
| 23 | Base seal | 55X35 | 5 | 07147266961 | Shop at ECS Tuning | |||||
| 24 | Paint plugs with hot-melt adhesive ring | D=20MM | 22 | 07/2023 | 41007140848 | $0.43 | Shop at ECS Tuning | |||
| 24 | Paint plug | D=20MM | 22 | 51915A0C2C2 | Shop at ECS Tuning | |||||
| 24 | Paint plugs with hot-melt adhesive ring | D=25MM | 3 | 07/2023 | 07147180506 | $0.41 | Shop at ECS Tuning | |||
| 24 | Paint plug | D=25MM | 3 | 51915A0C2C3 | Shop at ECS Tuning | |||||
| 25 | Blind plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 26 | Seal plug | D=12MM | 1 | 07147131129 | $0.49 | Shop at ECS Tuning | ||||
| 27 | Seal plug | D=15MM | 4 | 07147424260 | Shop at ECS Tuning | |||||
| 28 | Protective foil vehicle identif.number | 1 | 07147393747 | ENDED | Shop at ECS Tuning | |||||
| 30 | Dummy grommet | 2 | 61139309547 | NoS | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
