Trim panel, trunk floor for BMW MINI Clubman F54 Cooper (2019)

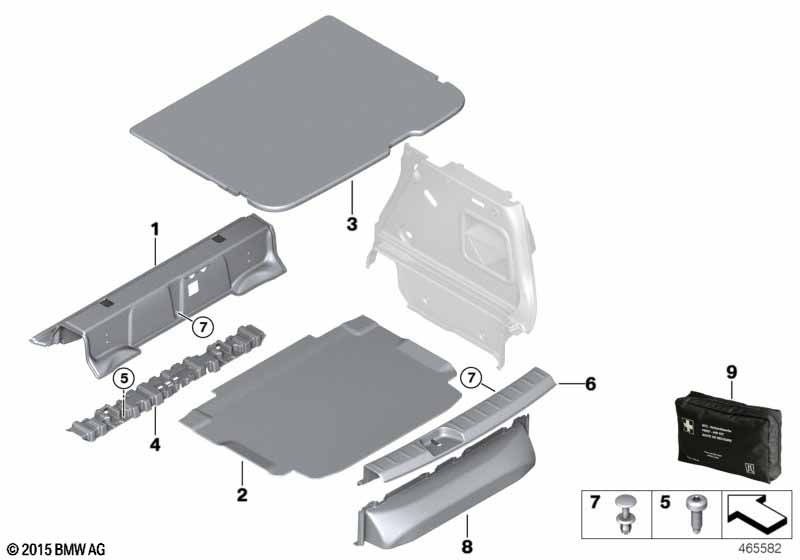

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Storage compartment package |
S493A=No |
|||||||||
| 01 | Trim panel, cross member, trunk | 1 | 51477360784 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Emergency spare wheel and Storage compartment package |
S235A=Yes S300A=Yes S493A=Yes |
|||||||||
| 01 | Trim panel, cross member, trunk | 1 | 51477427156 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Emergency spare wheel and Storage compartment package |
S235A=Yes S300A=No S493A=Yes |
|||||||||
| 01 | Trim panel, cross member, trunk | 1 | 51477427156 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Emergency spare wheel and Storage compartment package |
S235A=No S300A=Yes S493A=Yes |
|||||||||
| 01 | Trim panel, cross member, trunk | 1 | 51477427156 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Emergency spare wheel and Storage compartment package |
S235A=No S300A=No S493A=Yes |
|||||||||
| 01 | Trim panel, cross member, trunk | 1 | 51477360785 | Shop at ECS Tuning | ||||||
| 02 | Trim panel, trunk floor | 1 | 51477360758 | Shop at ECS Tuning | ||||||
| For vehicles with Emergency spare wheel |
S300A=Yes |
|||||||||
| 02 | Trim for trunk floor compact spare wheel | 1 | 51477420086 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 03 | Floor carpet, luggage compartment | 1 | 51477360761 | Shop at ECS Tuning | ||||||
| 04 | Mount for trunk floor panel | 1 | 51477360760 | Shop at ECS Tuning | ||||||
| 05 | Countersunk screw | M6X16 | 4 | 07119907139 | Shop at ECS Tuning | |||||
| 06 | Loading sill cover | 1 | 51477360757 | Shop at ECS Tuning | ||||||
| 07 | Expanding rivet | 7 | 07147136172 | $0.38 | Shop at ECS Tuning | |||||
| 08 | Rear trunk trim panel | 1 | 51477363347 | Shop at ECS Tuning | ||||||
| 09 | First-aid kit, case, black | DIN 13164 | 1 | 71107263439 | Shop at ECS Tuning | |||||
