Rear center console for BMW 5 Series E39 523i (2000)

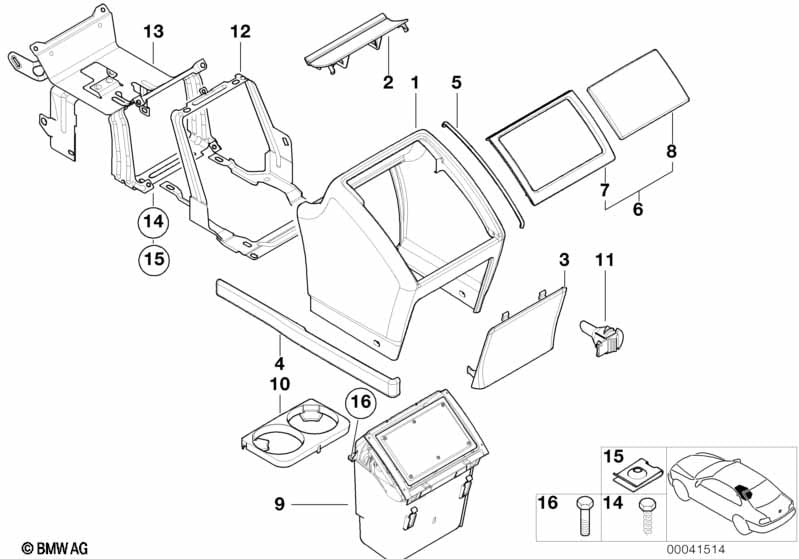

This Rear center console technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with All leather Nappa Heritage |
M1=Yes |
|||||||||
| 01 | Rear center console | SCHWARZ | 1 | 04/1999 | 51162699418 | $619.38 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear center console | CARAMEL | 1 | 04/1999 | 51162699419 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | ENGLISCHGRUEN | 1 | 04/1999 | 51162699420 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth or Imitation leather or Leather Mont./basic equipm. |
F4=Yes K4=Yes N6=Yes |
|||||||||
| 01 | Rear center console | SCHWARZ | 1 | 04/1999 | 51168230110 | $412.92 | Shop at ECS Tuning | |||
| 01 | Rear center console | GRAU | 1 | 04/1999 | 51168230111 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | MARINEBLAU | 1 | 04/1999 | 51168230112 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | SANDBEIGE | 1 | 04/1999 | 51168230113 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | ENGLISCHGRUEN | 1 | 04/1999 | 51168230114 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Alcantara M-Textur or Partial leather Nappa Heritage or Embossed leather, Strauss-Basis or Embossed leather, Strauss-Volleder |
F2=Yes M3=Yes O5=Yes O6=Yes |
|||||||||
| 01 | Rear center console | SCHWARZ | 1 | 04/1999 | 51162699416 | Shop at ECS Tuning | ||||
| 02 | Cover, rear console, front | SCHWARZ | 1 | 04/1999 | 51168230129 | $8.90 | Shop at ECS Tuning | |||
| 03 | Cover, rear console, rear | SCHWARZ | 1 | 04/1999 | 51168241555 | $16.60 | ENDED | Shop at ECS Tuning | ||
| For vehicles with All leather Nappa Heritage |
M1=Yes |
|||||||||
| 04 | Trim panel, rear console, bottom, rear | SCHWARZ | 2 | 04/1999 | 51162699478 | $54.90 | ENDED | Shop at ECS Tuning | ||
| 04 | Trim panel, rear console, bottom, rear | CARAMEL | 2 | 04/1999 | 51162699479 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim panel, rear console, bottom, rear | ENGLISHGRUEN | 2 | 04/1999 | 51162699480 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth or Imitation leather or Leather Mont./basic equipm. |
F4=Yes K4=Yes N6=Yes |
|||||||||
| 04 | Trim panel, rear console, bottom, rear | SCHWARZ | 2 | 04/1999 | 51168249883 | $27.34 | Shop at ECS Tuning | |||
| 04 | Trim panel, rear console, bottom, rear | GRAU | 2 | 04/1999 | 51168249885 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim panel, rear console, bottom, rear | MARINEBLAU | 2 | 04/1999 | 51168249887 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim panel, rear console, bottom, rear | SANDBEIGE | 2 | 04/1999 | 51168249889 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim panel, rear console, bottom, rear | ENGLISHGRUEN | 2 | 04/1999 | 51168249891 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather Alcantara M-Textur or Partial leather Nappa Heritage or Embossed leather, Strauss-Basis or Embossed leather, Strauss-Volleder |
F2=Yes M3=Yes O5=Yes O6=Yes |
|||||||||
| 04 | Trim panel, rear console, bottom, rear | SCHWARZ | 2 | 04/1999 | 51162699476 | ENDED | Shop at ECS Tuning | |||
| 05 | Curved reinforcement brace, rear console | 2 | 04/1999 | 51168230128 | $1.99 | Shop at ECS Tuning | ||||
| 06 | Set of decor finishers | BRUYERE | 1 | 04/1999 | 51167894516 | $279.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Set of decor finishers | VAVONA | 1 | 04/1999 | 51168249705 | $279.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Set of decor finishers | NUSSBAUM | 1 | 04/1999 | 51168249706 | ENDED | Shop at ECS Tuning | |||
| 09 | Container, rear console | 1 | 04/1999 | 51168241556 | $198.57 | ENDED | Shop at ECS Tuning | |||
| 10 | Rear CAN holder | 1 | 04/1999 | 51168249707 | $10.67 | Shop at ECS Tuning | ||||
| 11 | Adapter | 1 | 04/1999 | 51168241561 | $12.15 | ENDED | Shop at ECS Tuning | |||
| 12 | Rear console bracket | 1 | 04/1999 | 51168230131 | $20.76 | Shop at ECS Tuning | ||||
| 13 | Bracket, center console rear | 1 | 04/1999 | 51168236768 | $38.60 | ENDED | Shop at ECS Tuning | |||
| 14 | Sheet metal screw | ST4,2X13 SW | 4 | 04/1999 | 07119904186 | $0.18 | Shop at ECS Tuning | |||
| 15 | Body nut | ST4,2-1-ZNS3 | 4 | 04/1999 | 07129904220 | $0.09 | Shop at ECS Tuning | |||
| 16 | Screw for thermoplastic plastics | 4X16MM | 2 | 04/1999 | 07119900591 | $0.25 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
