Trim panels, rear doors for BMW MINI Clubman F54 Cooper (2019)

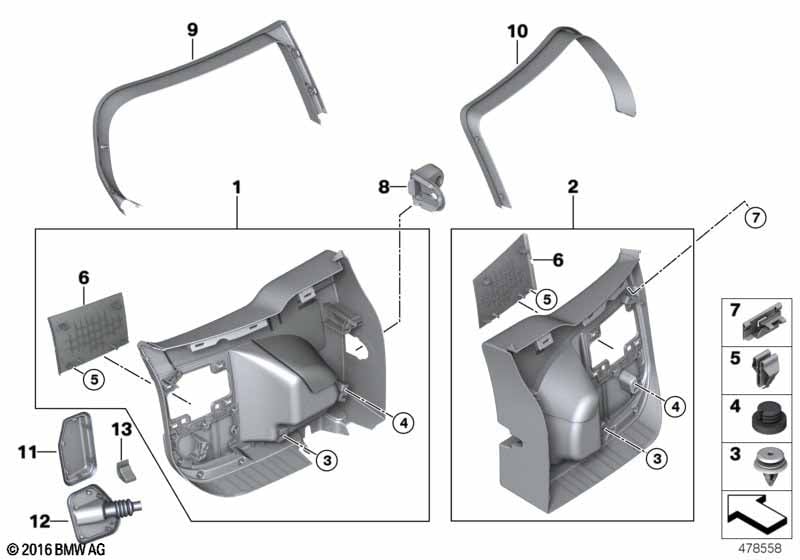

This Trim panels, rear doors technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim for rear door, left | 1 | 51427360889 | Shop at ECS Tuning | ||||||
| 02 | Trim for rear door, right | 1 | 51427360890 | Shop at ECS Tuning | ||||||
| 03 | Clip Natur | 10 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 04 | Rubber buffer | 3 | 51478144588 | $1.27 | Shop at ECS Tuning | |||||
| 05 | Clamp | 8 | 07147321144 | Shop at ECS Tuning | ||||||
| 06 | Service lid, left | 1 | 51427360891 | NoS | Shop at ECS Tuning | |||||
| 06 | Service lid, right | 1 | 51427360892 | Shop at ECS Tuning | ||||||
| 07 | Clamp | 0,8MM | 6 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 08 | Cover, tailgate lock | 1 | 51427363732 | Shop at ECS Tuning | ||||||
| 09 | Window frame cover, tailgate, left | 1 | 51497348829 | Shop at ECS Tuning | ||||||
| 10 | Window frame cover, tailgate, right | 1 | 51497348830 | Shop at ECS Tuning | ||||||
| 11 | Service cap for lamps left outer | 1 | 51417363849 | Shop at ECS Tuning | ||||||
| 11 | Service cap for lamps, right, outer | 1 | 51417363850 | Shop at ECS Tuning | ||||||
| 12 | Sealing, gas pressure spring left | 1 | 51247370325 | Shop at ECS Tuning | ||||||
| 12 | Sealing gas pressure spring right | 1 | 51247370326 | Shop at ECS Tuning | ||||||
| 13 | Cover | 3 | 51492757772 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
