Door trim panel, front for BMW MINI Clubman F54 Cooper (2019)

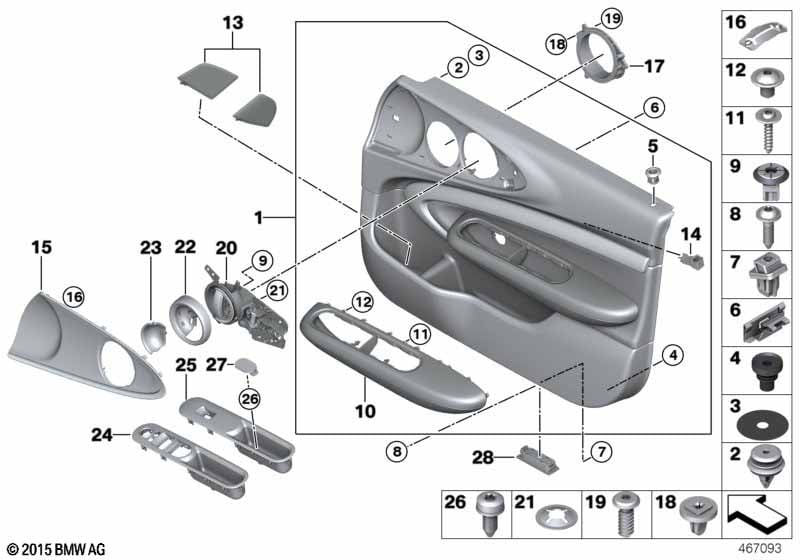

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Door trim panels always have an cutout for door entry light. The cutout must be covered with a blind cover, if necessary. |
|||||||||
| For vehicles with Interior surface Piano Black and Leather Cross Punch/pure burgundy Note Repair Manual |
S4BDA=Yes NEIY=Yes |
|||||||||
| 01 | Door trim panel, front left | PURE BURGUNDY | 1 | 51417463047 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | PURE BURGUNDY | 1 | 51417463048 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior surface in Hazy Grey and Leather Cross Punch/pure burgundy Note Repair Manual |
S4EPA=Yes NEIY=Yes |
|||||||||
| 01 | Door trim panel, front left | PURE BURGUNDY | 1 | 51417462821 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | PURE BURGUNDY | 1 | 51417462822 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours Interior Style Fibre All and Fabric/leatherette Bl.Pearl/carbon-black Note Repair Manual |
S4GXA=Yes KDE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463289 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463290 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours Interior Style Fibre All and Leather Chester/indigo blue Note Repair Manual |
S4GXA=Yes NYIB=Yes |
|||||||||
| 01 | Door trim panel, front left | INDIGO BLUE | 1 | 51417463305 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | INDIGO BLUE | 1 | 51417463306 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours Interior Style Fibre All and Cloth/leather Cord/carbon black Note Repair Manual |
S4GXA=Yes CXE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463281 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463282 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours Interior Style Fibre All and Leather Cross Punch/pure burgundy Note Repair Manual |
S4GXA=Yes NEIY=Yes |
|||||||||
| 01 | Door trim panel, front left | PURE BURGUNDY | 1 | 51417463273 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | PURE BURGUNDY | 1 | 51417463274 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface Piano Black and Fabric/leatherette Bl.Pearl/carbon-black Note Repair Manual |
S4BDA=Yes KDE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463063 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463064 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface Piano Black and Cloth/leather Cord/carbon black Note Repair Manual |
S4BDA=Yes CXE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463055 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463056 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface in Hazy Grey and Cloth/leather Cord/carbon black Note Repair Manual |
S4EPA=Yes CXE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417462829 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417462830 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface Piano Black and Leather Chester/indigo blue Note Repair Manual |
S4BDA=Yes NYIB=Yes |
|||||||||
| 01 | Door trim panel, front left | INDIGO BLUE | 1 | 51417463103 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | INDIGO BLUE | 1 | 51417463104 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface in Hazy Grey and Leather Chester/indigo blue Note Repair Manual |
S4EPA=Yes NYIB=Yes |
|||||||||
| 01 | Door trim panel, front left | INDIGO BLUE | 1 | 51417462885 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | INDIGO BLUE | 1 | 51417462886 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior surface in Hazy Grey and Fabric/leatherette Bl.Pearl/carbon-black Note Repair Manual |
S4EPA=Yes KDE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417462851 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417462852 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours Interior Style Piano Black and MINI Yours interior style burgundy and Cloth/leather Cord/carbon black Note Repair Manual |
S4GVA=Yes S4GWA=Yes CXE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463229 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463230 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours Interior Style Fibre All and Leather, chester/satellite gray or Leather 'Lounge/satellite-gray' Note Repair Manual |
S4GXA=Yes NYGK=Yes T9GK=Yes |
|||||||||
| 01 | Door trim panel, front left | SATELLITE GREY | 1 | 51417463297 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SATELLITE GREY | 1 | 51417463298 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior surface Piano Black and Leather, chester/satellite gray or Leather 'Lounge/satellite-gray' Note Repair Manual |
S4BDA=Yes NYGK=Yes T9GK=Yes |
|||||||||
| 01 | Door trim panel, front left | SATELLITE GREY | 1 | 51417463071 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SATELLITE GREY | 1 | 51417463072 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours Interior Style Piano Black and MINI Yours interior style burgundy and Leather Chester/indigo blue Note Repair Manual |
S4GVA=Yes S4GWA=Yes NYIB=Yes |
|||||||||
| 01 | Door trim panel, front left | INDIGO BLUE | 1 | 51417463253 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | INDIGO BLUE | 1 | 51417463254 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours Interior Style Piano Black and MINI Yours interior style burgundy and Fabric/leatherette Bl.Pearl/carbon-black Note Repair Manual |
S4GVA=Yes S4GWA=Yes KDE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463237 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463238 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours Interior Style Piano Black and MINI Yours interior style burgundy and Leather Cross Punch/pure burgundy Note Repair Manual |
S4GVA=Yes S4GWA=Yes NEIY=Yes |
|||||||||
| 01 | Door trim panel, front left | PURE BURGUNDY | 1 | 51417463219 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | PURE BURGUNDY | 1 | 51417463220 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface in Hazy Grey and Leather, chester/satellite gray or Leather 'Lounge/satellite-gray' Note Repair Manual |
S4EPA=Yes NYGK=Yes T9GK=Yes |
|||||||||
| 01 | Door trim panel, front left | SATELLITE GREY | 1 | 51417462869 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SATELLITE GREY | 1 | 51417462870 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior surface in Hazy Grey and Fabric Firework/Carbon Black or Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth Note Repair Manual |
S4EPA=Yes BGE1=Yes BZE1=Yes DAE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417462807 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417462808 | Shop at ECS Tuning | |||||
| For vehicles with Interior surface Piano Black and Fabric Firework/Carbon Black or Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth Note Repair Manual |
S4BDA=Yes BGE1=Yes BZE1=Yes DAE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463035 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463036 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours Interior Style Fibre All and Fabric Firework/Carbon Black or Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth Note Repair Manual |
S4GXA=Yes BGE1=Yes BZE1=Yes DAE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463261 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463262 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours Interior Style Piano Black and MINI Yours interior style burgundy and Leather, chester/satellite gray or Leather 'Lounge/satellite-gray' Note Repair Manual |
S4GVA=Yes S4GWA=Yes NYGK=Yes T9GK=Yes |
|||||||||
| 01 | Door trim panel, front left | SATELLITE GREY | 1 | 51417463245 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | SATELLITE GREY | 1 | 51417463246 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior surface in Hazy Grey and Dinamica/leather in Carbon Black or Imit. leather"Leatherette"/carbon-black or Leather, Cross punch / carbon black or MINI Yours leather Lounge/carbon-black Note Repair Manual |
S4EPA=Yes GSE1=Yes K9E1=Yes NEE1=Yes TYE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417462815 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417462816 | NoS | Shop at ECS Tuning | ||||
| For vehicles with MINI Yours Interior Style Fibre All and Dinamica/leather in Carbon Black or Imit. leather"Leatherette"/carbon-black or Leather, Cross punch / carbon black or MINI Yours leather Lounge/carbon-black Note Repair Manual |
S4GXA=Yes GSE1=Yes K9E1=Yes NEE1=Yes TYE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CABON BLACK | 1 | 51417463269 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463270 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours Interior Style Piano Black and MINI Yours interior style burgundy and Fabric Firework/Carbon Black or Fabric Double Stripe/Carbon Black or Dinamica/Carbon Black cloth Note Repair Manual |
S4GVA=Yes S4GWA=Yes BGE1=Yes BZE1=Yes DAE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463207 | NoS | Shop at ECS Tuning | ||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463208 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior surface Piano Black and Dinamica/leather in Carbon Black or Imit. leather"Leatherette"/carbon-black or Leather, Cross punch / carbon black or MINI Yours leather Lounge/carbon-black Note Repair Manual |
S4BDA=Yes GSE1=Yes K9E1=Yes NEE1=Yes TYE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463043 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463044 | Shop at ECS Tuning | |||||
| For vehicles with MINI Yours Interior Style Piano Black and MINI Yours interior style burgundy and Dinamica/leather in Carbon Black or Imit. leather"Leatherette"/carbon-black or Leather, Cross punch / carbon black or MINI Yours leather Lounge/carbon-black Note Repair Manual |
S4GVA=Yes S4GWA=Yes GSE1=Yes K9E1=Yes NEE1=Yes TYE1=Yes |
|||||||||
| 01 | Door trim panel, front left | CARBON BLACK | 1 | 51417463215 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, front right | CARBON BLACK | 1 | 51417463216 | Shop at ECS Tuning | |||||
| 02 | Clip with washer, natur | WEIß | 22 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 03 | Gasket | 6 | 51417274654 | Shop at ECS Tuning | ||||||
| 04 | Stop buffer | 8 | 51437217734 | $2.10 | Shop at ECS Tuning | |||||
| 05 | Cover, locking button | 2 | 51417463425 | Shop at ECS Tuning | ||||||
| 06 | Clamp | 0,8MM | 10 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 07 | Plug-in nut | 6 | 51252753575 | $2.89 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | 8 | 07147377159 | Shop at ECS Tuning | ||||||
| 09 | Expanding nut | 2 | 07147265039 | Shop at ECS Tuning | ||||||
| 10 | Armrest, door, front left | SCHWARZ | 1 | 51417413457 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 10 | Armrest, door, front right | SCHWARZ | 1 | 51417413458 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fillister head screw | 6 | 07147118369 | $0.80 | Shop at ECS Tuning | |||||
| -- | Fillister head screw | TS4X10 ISA | 9 | 07147270744 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw | TS4X10 ISA | 18 | 07147270744 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | 12 | 07147118369 | $0.80 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 13 | Insert mat, door pocket, left | 1 | 51417400013 | Shop at ECS Tuning | ||||||
| 13 | Insert mat, door pocket, right | 1 | 51417400014 | Shop at ECS Tuning | ||||||
| 14 | Cover, LED module | 4 | 51417421238 | Shop at ECS Tuning | ||||||
| 15 | Cover, speaker, plastic, left | SCHWARZ | 1 | 51417413515 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 15 | Cover, speaker, plastic, right | SCHWARZ | 1 | 51417413516 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clamp | 8 | 51417464302 | Shop at ECS Tuning | ||||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 15 | Cover, speaker, metal, left | SCHWARZ | 1 | 51417414467 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 15 | Cover, speaker, metal, right | SCHWARZ | 1 | 51417414468 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clamp | 8 | 51417464302 | Shop at ECS Tuning | ||||||
| 16 | Clamp | 8 | 51417464302 | Shop at ECS Tuning | ||||||
| 17 | Spacer ring, speaker, front left | 1 | 51417363249 | Shop at ECS Tuning | ||||||
| 17 | Spacer ring, speaker, front right | 1 | 51417363250 | Shop at ECS Tuning | ||||||
| 18 | Expanding nut | 7X7 MM | 6 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Fillister head screw | 6 | 06/2020 | 07149186707 | Shop at ECS Tuning | |||||
| 20 | Door opener, inner, front right | 1 | 51417360834 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 20 | Door opener, inner, front left | 1 | 51417362993 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Axial securing clip | 4 | 51412756689 | $0.58 | Shop at ECS Tuning | |||||
| 21 | Axial securing clip | 8 | 51412756689 | $0.58 | Shop at ECS Tuning | |||||
| 22 | Trim ring, door opener, front left | 1 | 51417360837 | Shop at ECS Tuning | ||||||
| 22 | Trim ring, door opener, front right | 1 | 51417360838 | Shop at ECS Tuning | ||||||
| 23 | Cover for screw, door opener, front | SCHWARZ | 2 | 51417419626 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line Interieur |
S345A=Yes |
|||||||||
| 23 | Cover, screw, chrome, door opener, front | 2 | 51417419649 | Shop at ECS Tuning | ||||||
| 24 | Pull grip, front door | 1 | 51417389111 | Shop at ECS Tuning | ||||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip |
S313A=Yes S430A=Yes |
|||||||||
| 24 | Pull grip, front door | 1 | 51417363005 | Shop at ECS Tuning | ||||||
| 25 | Pull grip, front door | 1 | 51417389107 | Shop at ECS Tuning | ||||||
| 26 | Sheet metal screw | ST4,8X13 ZNS3 | 2 | 07119907353 | Shop at ECS Tuning | |||||
| 27 | Molding cover | 2 | 51417362999 | Shop at ECS Tuning | ||||||
| 28 | Cover plate | SCHWARZ | 1 | 51422451619 | Shop at ECS Tuning | |||||
| 28 | Cover plate | CANBERRABEIGE | 1 | 51422451620 | Shop at ECS Tuning | |||||
| 28 | Cover plate | VENETOBEIGE | 1 | 51422451621 | Shop at ECS Tuning | |||||
| 28 | Cover plate | A5 BEIGE | 1 | 51422451622 | ENDED | Shop at ECS Tuning | ||||
| 28 | Cover plate | GREIGE 87 | 1 | 51422451623 | Shop at ECS Tuning | |||||
| 28 | Cover plate | GRAU 60 | 1 | 51422451624 | Shop at ECS Tuning | |||||
| 28 | Cover plate | SAVANNABEIGE | 1 | 51422451625 | Shop at ECS Tuning | |||||
| 28 | Cover plate | OYSTER 71 | 1 | 51422451627 | Shop at ECS Tuning | |||||
| 28 | Cover plate | EVERESTGRAU F01 | 1 | 51422451628 | Shop at ECS Tuning | |||||
| 28 | Cover plate | CREAMBEIGE | 1 | 51422451629 | Shop at ECS Tuning | |||||
| For vehicles with MINI Excitement Package |
S4V9A=No |
|||||||||
| 28 | LED for interior lamp | KALTWEISS | 2 | 63319313574 | Shop at ECS Tuning | |||||
| The lamp is intended for use as a cover for the lower recess in the door panel. |
||||||||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 Cooper Door trim panel, front?
- This technical diagram illustrates the Door trim panel, front within the Vehicle trim group for the MINI Clubman F54 Cooper produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel, front left (Part #51417463047).
- Which models use the hardware listed in this Door trim panel, front?
- The hardware and components featured in the Door trim panel, front are specific to the MINI Clubman F54 Cooper produced during 2019. These technical specifications ensure that parts like the Door trim panel, front left (51417463047) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel, front assembly?
- Each item in the Door trim panel, front corresponds to the numbered list below the illustration. For the MINI Clubman F54 Cooper, you can identify the Door trim panel, front left by locating its position on the schematic, which then links to the official BMW part number 51417463047 for the Vehicle trim section.
