Trim panel A-column/Int.windshield panel for BMW MINI Cabrio F57 JCW (2018)

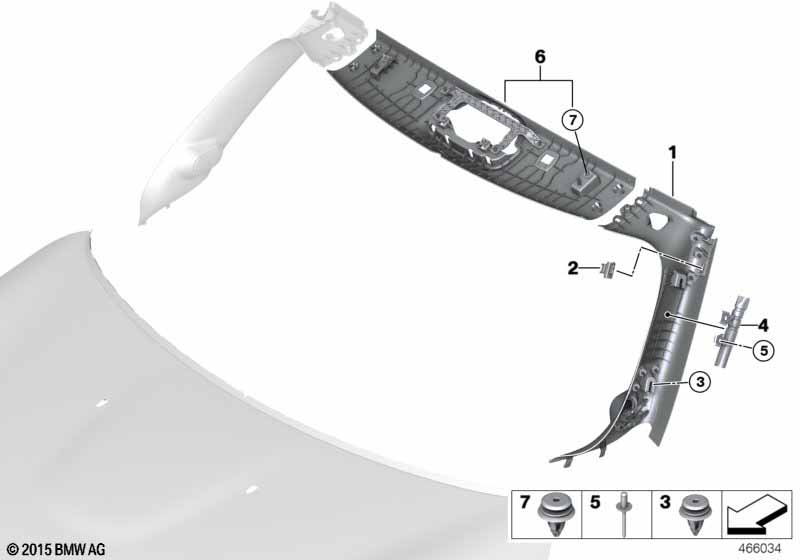

This Trim panel A-column/Int.windshield panel technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 01 | Trim, A-pillar, HiFi, left | ANTHRAZIT | 1 | 51437393011 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Trim panel, I-panel, outer left | 1 | 51459361669 | Shop at ECS Tuning | ||||||
| -- | Trim panel, I-panel, outer left | AIRBAG OFF | 1 | 51459361671 | Shop at ECS Tuning | |||||
| 01 | Trim, A-pillar, HiFi, right | ANTHRAZIT | 1 | 51437393012 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Trim panel, I-panel, outer right | 1 | 51459361670 | Shop at ECS Tuning | ||||||
| -- | Trim panel, I-panel, outer right | AIRBAG OFF | 1 | 51459361672 | Shop at ECS Tuning | |||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=No |
|||||||||
| 01 | Left column A cover | ANTHRAZIT | 1 | 51437393007 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Trim panel, I-panel, outer left | 1 | 51459361669 | Shop at ECS Tuning | ||||||
| -- | Trim panel, I-panel, outer left | AIRBAG OFF | 1 | 51459361671 | Shop at ECS Tuning | |||||
| 01 | Right column A cover | ANTHRAZIT | 1 | 51437393008 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Trim panel, I-panel, outer right | 1 | 51459361670 | Shop at ECS Tuning | ||||||
| -- | Trim panel, I-panel, outer right | AIRBAG OFF | 1 | 51459361672 | Shop at ECS Tuning | |||||
| For vehicles with Wired and Navigation system Professional and Intelligent emergency SOS call and Radio MINI Visual Boost and Hands-free system with Bluetooth and Extended mobile phone prep. w/Bluetooth and MINI navigation system |
P7L5A=No S609A=No S6ACA=No S6FPA=No S6NDA=No S6NEA=No S6UMA=No |
|||||||||
| 02 | Blanking plate | 2 | 51447416966 | Shop at ECS Tuning | ||||||
| 03 | Clip green | 4 | 07147129310 | $1.11 | Shop at ECS Tuning | |||||
| For vehicles with Isofix-System and Intelligent emergency SOS call and Teleservices and Statutory emergency request |
S470A=Yes S6ACA=Yes S6AEA=Yes S6AFA=Yes |
|||||||||
| 06 | Cover, windscreen panel, top | SCHWARZ | 1 | 51487419756 | Shop at ECS Tuning | |||||
| For vehicles with Isofix-System and Intelligent emergency SOS call and Teleservices and Statutory emergency request |
S470A=No S6ACA=No S6AEA=No S6AFA=No |
|||||||||
| 06 | Cover, windscreen panel, top | SCHWARZ | 1 | 51447393006 | Shop at ECS Tuning | |||||
| 07 | Clip | GRAU | 4 | 51437001492 | $0.42 | Shop at ECS Tuning | ||||
