Side window, fixed position for BMW 3 Series E46 325i (2003)

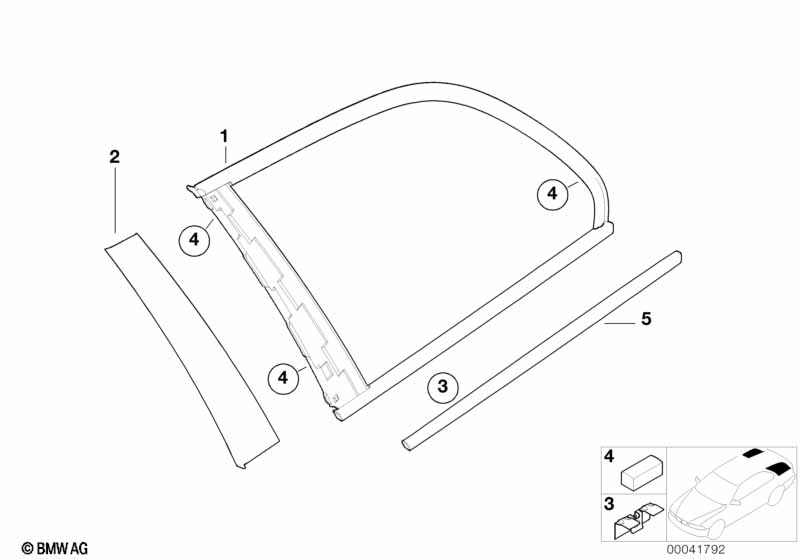

This Side window, fixed position technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Green side window with left gasket | SCHWARZ | 1 | 51368231851 | $175.30 | Shop at ECS Tuning | ||||
| 01 | Green side window with right gasket | SCHWARZ | 1 | 51368231852 | $175.30 | Shop at ECS Tuning | ||||
| 01 | Green side window with left gasket | CHROM | 1 | 51368231855 | $179.60 | Shop at ECS Tuning | ||||
| 01 | Green side window with right gasket | CHROM | 1 | 51368231856 | $179.60 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 01 | Green side window with left gasket | GLANZSCHWARZ | 1 | 51367891405 | $379.21 | Shop at ECS Tuning | ||||
| 01 | Green side window with right gasket | GLANZSCHWARZ | 1 | 51367891406 | $379.21 | Shop at ECS Tuning | ||||
| 02 | Cover, side window, column C, left | SCHWARZ MATT | 1 | 51368209003 | $28.53 | Shop at ECS Tuning | ||||
| 02 | Cover, side window, column C, right | SCHWARZ MATT | 1 | 51368209004 | $28.53 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 02 | Cover, side window, column C, left | GLANZSCHWARZ | 1 | 51367891409 | $74.80 | Shop at ECS Tuning | ||||
| 02 | Cover, side window, column C, right | GLANZSCHWARZ | 1 | 51367891410 | $74.80 | Shop at ECS Tuning | ||||
| 03 | Clamp | X | 51368263608 | $1.11 | Shop at ECS Tuning | |||||
| 04 | Hook&loop fastener | 25.4X15 | 6 | 51368194743 | $0.87 | Shop at ECS Tuning | ||||
| 05 | Finisher, side window, rear left | CHROM | 1 | 51368194745 | $77.13 | Shop at ECS Tuning | ||||
| 05 | Finisher, side window, rear right | CHROM | 1 | 51368194746 | $77.13 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 05 | Finisher, side window, rear left | GLANZSCHWARZ | 1 | 51367891407 | $85.04 | Shop at ECS Tuning | ||||
| 05 | Finisher, side window, rear right | GLANZSCHWARZ | 1 | 51367891408 | $85.04 | Shop at ECS Tuning | ||||
