Exterior mirror (S430A) for BMW 7 Series E38 740i (1996)

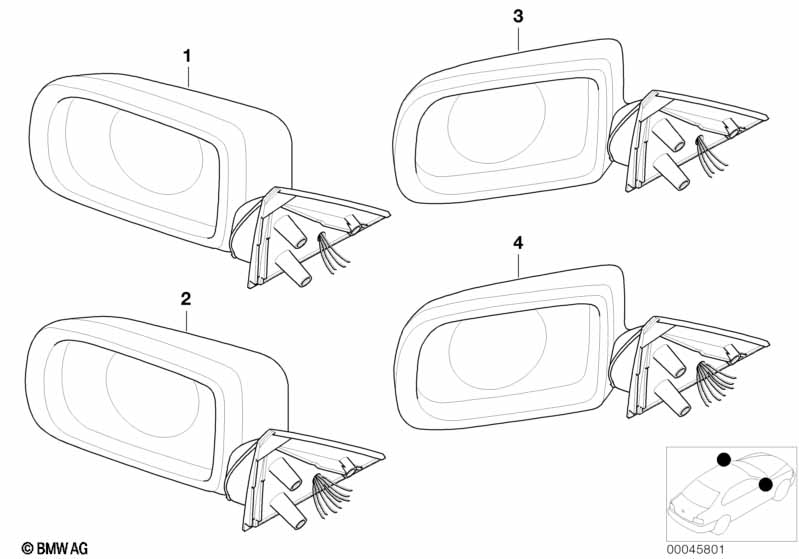

This Exterior mirror (S430A) technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Interior/outside mirror with auto dip |
S430A=Yes |
||||||||
| For vehicles with Comfort seat with memory and Contour seat, front, electr. with memory and Seat adjuster, electric, with memory Only apllies to power folding assembly |
S456A=No S457A=No S459A=No |
|||||||||
| 03 | Outside mirror w/out glass heated right | GLANZSCHWARZ | 1 | 51167892144 | Shop at ECS Tuning | |||||
| 03 | Exterior mirror, no lens, heated, left | GLANZSCHWARZ | 1 | 51167892145 | ENDED | Shop at ECS Tuning | ||||
| 03 | Outside mirror w/out glass heated right | 1 | 51168266436 | Shop at ECS Tuning | ||||||
| 03 | Exterior mirror, no lens, heated, left | 1 | 51168266437 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory or Contour seat, front, electr. with memory or Seat adjuster, electric, with memory Only apllies to power folding assembly |
S456A=Yes S457A=Yes S459A=Yes |
|||||||||
| 04 | Outside mirror w/out glass heated right | 1 | 51168266450 | Shop at ECS Tuning | ||||||
| 04 | Exterior mirror, no lens, heated, left | 1 | 51168266451 | Shop at ECS Tuning | ||||||
| 04 | Outside mirror w/out glass heated right | GLANZSCHWARZ | 1 | 51168266472 | Shop at ECS Tuning | |||||
| 04 | Exterior mirror, no lens, heated, left | GLANZSCHWARZ | 1 | 51168266473 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
