Trunk trim panel for BMW MINI Cabrio F57 JCW (2019)

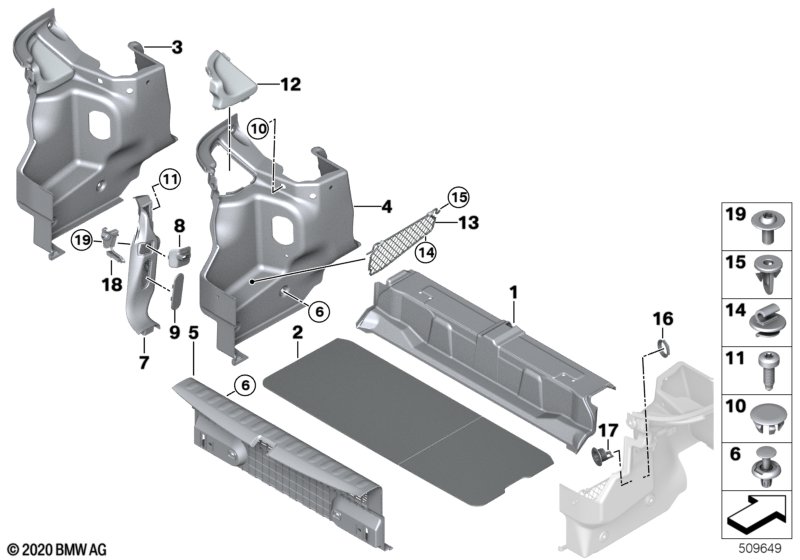

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel, cross member, trunk | 1 | 51477361768 | Shop at ECS Tuning | ||||||
| 02 | Trim panel, trunk floor | 1 | 51477298614 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=No |
|||||||||
| 03 | Left trunk trim | 1 | 51477361769 | Shop at ECS Tuning | ||||||
| 03 | Right TRUNK TRIM | 1 | 51477361770 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 04 | Left trunk trim | 1 | 51477381067 | Shop at ECS Tuning | ||||||
| 04 | Right TRUNK TRIM | 1 | 51477482706 | Shop at ECS Tuning | ||||||
| 05 | Loading sill cover | 1 | 51477361765 | Shop at ECS Tuning | ||||||
| 06 | Expanding rivet | 18 | 07147401727 | Shop at ECS Tuning | ||||||
| 07 | Support, rear window shelf left | 1 | 51467361773 | Shop at ECS Tuning | ||||||
| 07 | Support, rear window shelf right | 1 | 51467361774 | Shop at ECS Tuning | ||||||
| 08 | Cover, catch bracket left | 1 | 51477408493 | Shop at ECS Tuning | ||||||
| 08 | Cover, catch bracket right | 1 | 51477408494 | Shop at ECS Tuning | ||||||
| 09 | Lid support, rear window shelf | 2 | 51467361777 | Shop at ECS Tuning | ||||||
| 10 | Blind plug | D=18,20MM | 4 | 51477446710 | Shop at ECS Tuning | |||||
| 11 | Countersunk screw | M6X16 | 4 | 07119907139 | Shop at ECS Tuning | |||||
| 12 | Service lid, left | 1 | 51477434501 | Shop at ECS Tuning | ||||||
| 12 | Service lid, right | 1 | 51477434502 | Shop at ECS Tuning | ||||||
| 13 | Storage net left | 1 | 51477434521 | NoS | Shop at ECS Tuning | |||||
| 13 | Storage net right | 1 | 51477434522 | Shop at ECS Tuning | ||||||
| 14 | Clip storage net | 1 | 51477473751 | NoS | Shop at ECS Tuning | |||||
| 15 | Bush storage net | 1 | 51477473748 | Shop at ECS Tuning | ||||||
| 16 | Retaining ring for power socket, inner | 1 | 51477425215 | Shop at ECS Tuning | ||||||
| 17 | Retaining ring for power socket, outer | 1 | 51477425216 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
