Trim panel A- / B- / C- / D-Column for BMW 3 Series E46 325xi (2001)

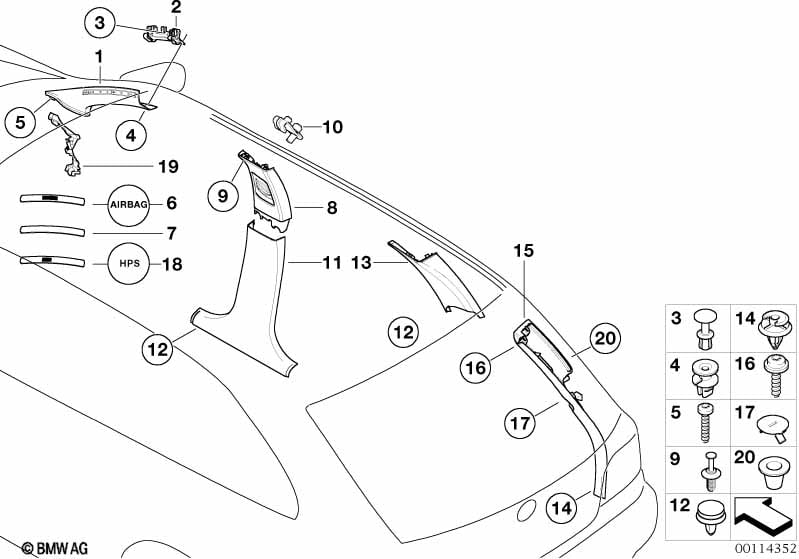

This Trim panel A- / B- / C- / D-Column technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

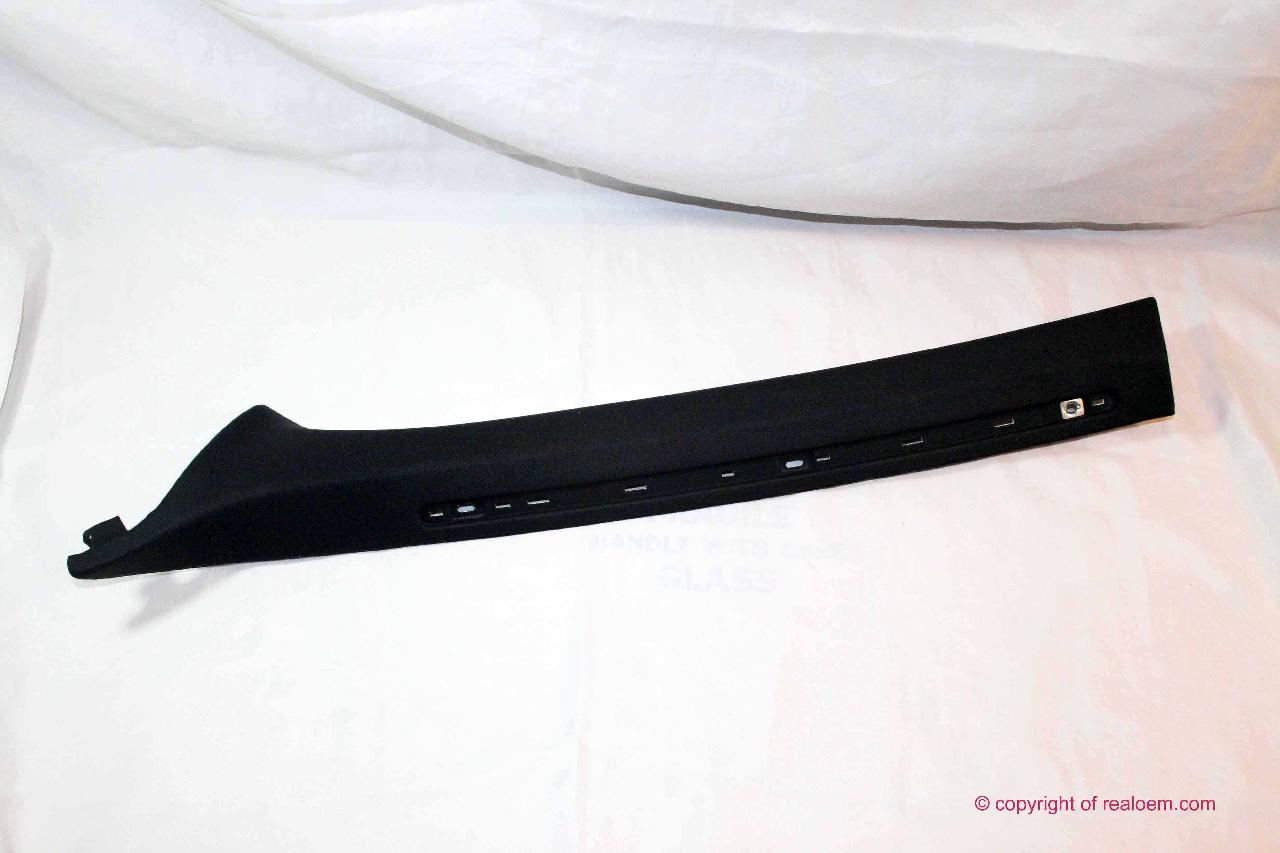

| 01 | Left column A cover | SCHWARZ | 1 | 51437902933 | $47.35 | Shop at ECS Tuning | ||||

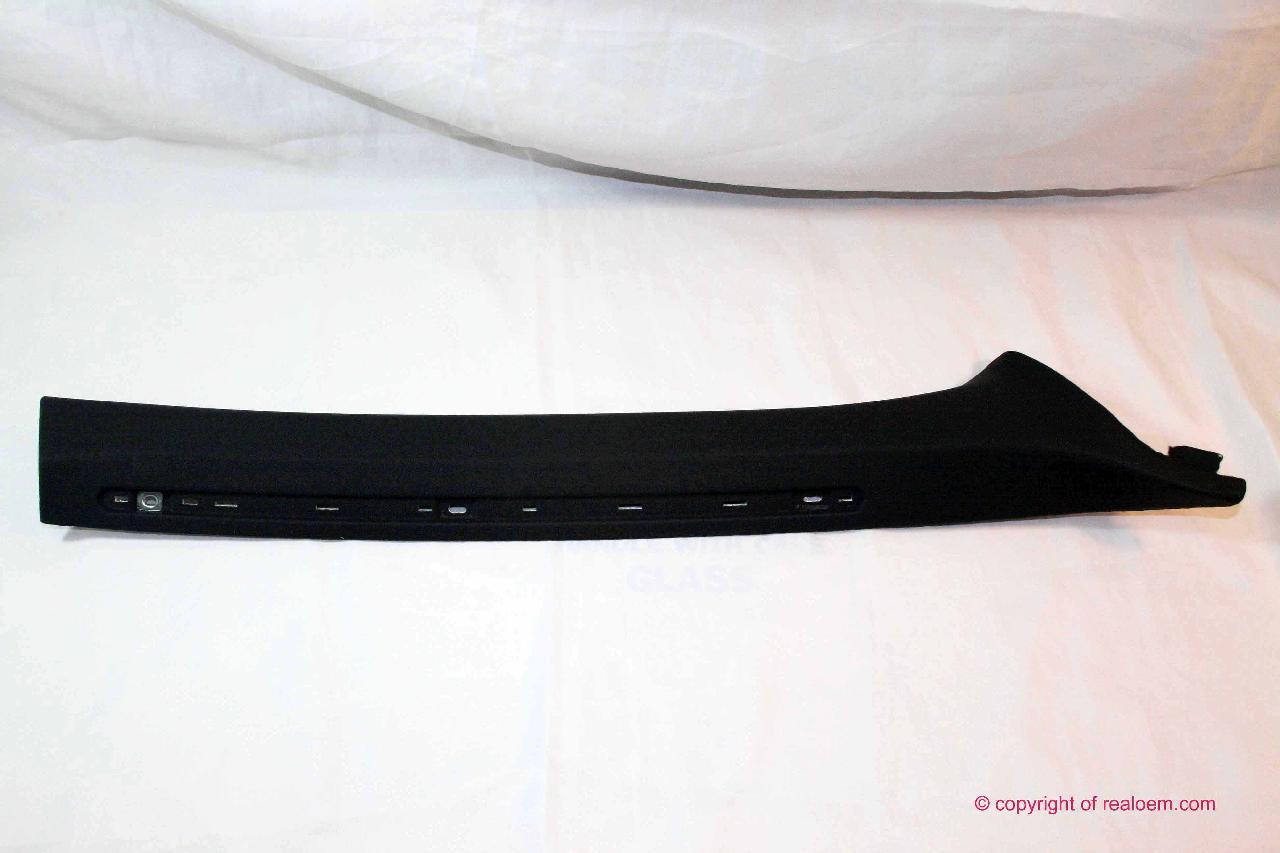

| 01 | Right column A cover | SCHWARZ | 1 | 51437902934 | $47.35 | Shop at ECS Tuning | ||||
| 01 | Left column A cover | HELLGRAU | 1 | 51438268195 | $47.35 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | HELLGRAU | 1 | 51438268196 | $47.35 | Shop at ECS Tuning | ||||

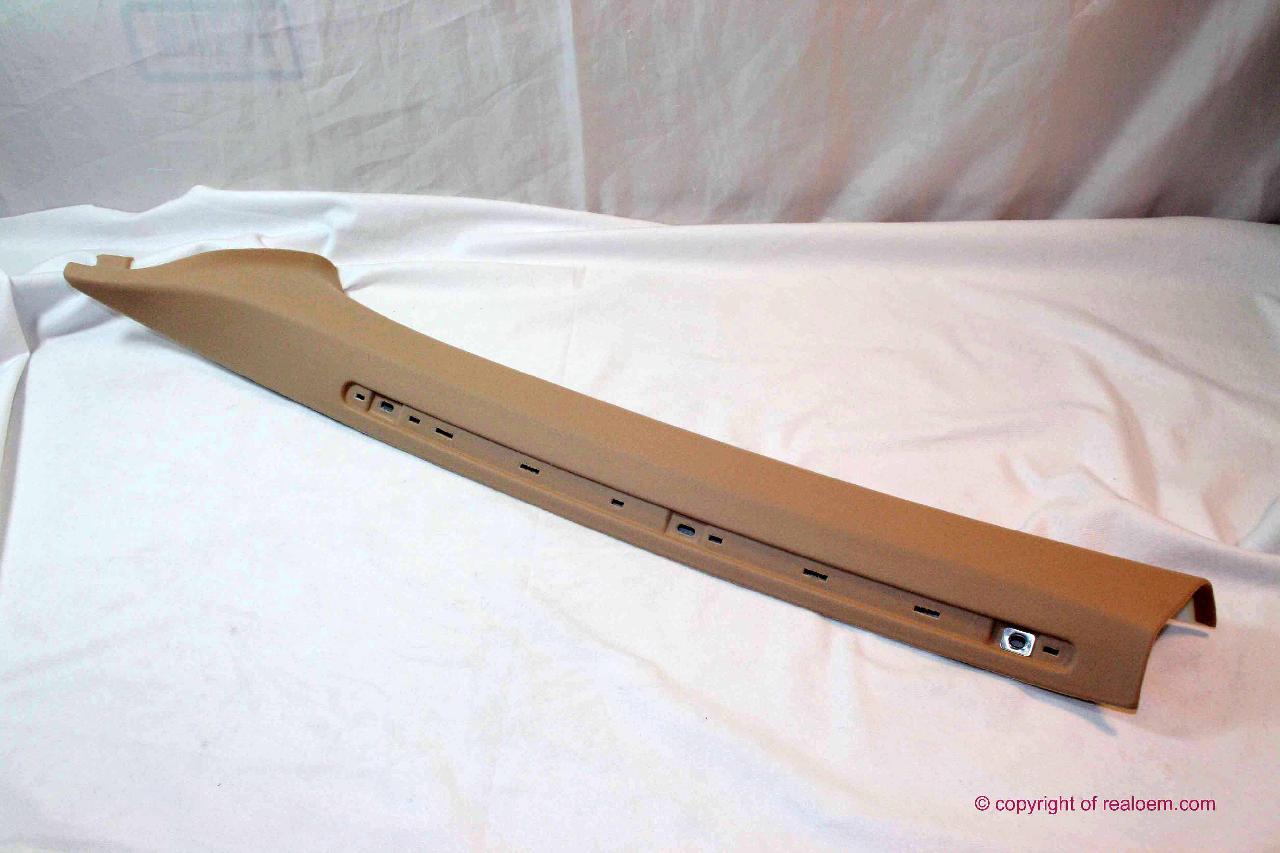

| 01 | Left column A cover | HELLBEIGE | 1 | 51438268197 | $47.35 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | HELLBEIGE | 1 | 51438268198 | $47.35 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | SCHWARZ | 2 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | 4 | 51438229754 | $0.56 | Shop at ECS Tuning | |||||
| 05 | Torx bolt | ST4,8X32 | 6 | 07149112637 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Cover, B-column upper left | SCHWARZ | 1 | 51437902935 | $111.37 | Shop at ECS Tuning | ||||
| 08 | Cover, B-column upper right | SCHWARZ | 1 | 51437902936 | $111.37 | Shop at ECS Tuning | ||||
| 08 | Cover, B-column upper left | HELLGRAU | 1 | 51438225571 | $111.37 | Shop at ECS Tuning | ||||
| 08 | Cover, B-column upper right | HELLGRAU | 1 | 51438225572 | $111.37 | Shop at ECS Tuning | ||||
| 08 | Cover, B-column upper left | HELLBEIGE | 1 | 51438226551 | $111.37 | Shop at ECS Tuning | ||||
| 08 | Cover, B-column upper right | HELLBEIGE | 1 | 51438226552 | $111.37 | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | D = 6MM | 4 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 11 | Cover, B-column bottom left | SCHWARZ | 1 | 51438226583 | $35.75 | Shop at ECS Tuning | ||||
| 11 | Cover, B-column bottom right | SCHWARZ | 1 | 51438226584 | $35.75 | Shop at ECS Tuning | ||||
| 11 | Cover, B-column bottom left | GRAU | 1 | 51438226585 | $35.75 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover, B-column bottom right | GRAU | 1 | 51438226586 | $35.75 | Shop at ECS Tuning | ||||
| 11 | Cover, B-column bottom left | HELLBEIGE | 1 | 51438226587 | $35.75 | Shop at ECS Tuning | ||||
| 11 | Cover, B-column bottom right | HELLBEIGE | 1 | 51438226588 | $35.75 | Shop at ECS Tuning | ||||
| 12 | Clip Natur | 4 | 51411973500 | $0.24 | Shop at ECS Tuning | |||||
| 12 | Clip | 4 | 51438225567 | $0.55 | Shop at ECS Tuning | |||||
| 12 | Clip, black | 4 | 52201964201 | $0.38 | Shop at ECS Tuning | |||||
| 13 | Covering column rear left | SCHWARZ | 1 | 51437902951 | $58.92 | Shop at ECS Tuning | ||||
| 13 | Covering column rear right | SCHWARZ | 1 | 51437902952 | $58.92 | Shop at ECS Tuning | ||||
| 13 | Covering column rear left | HELLGRAU | 1 | 51438269927 | $58.92 | Shop at ECS Tuning | ||||
| 13 | Covering column rear right | HELLGRAU | 1 | 51438269928 | $58.92 | Shop at ECS Tuning | ||||
| 13 | Covering column rear left | HELLBEIGE | 1 | 51438269929 | $58.92 | Shop at ECS Tuning | ||||
| 13 | Covering column rear right | HELLBEIGE | 1 | 51438269930 | $58.92 | ENDED | Shop at ECS Tuning | |||
| 14 | Clip Natur | 6 | 51411973500 | $0.24 | Shop at ECS Tuning | |||||
| 15 | Covering column rear left | GRAU | 1 | 51437018381 | $47.35 | +core | Shop at ECS Tuning | |||
| 15 | Covering column rear right | GRAU | 1 | 51437018382 | $47.35 | +core | Shop at ECS Tuning | |||
| 15 | Covering column rear left | SCHWARZ | 1 | 51437902231 | $47.35 | Shop at ECS Tuning | ||||
| 15 | Covering column rear right | SCHWARZ | 1 | 51437902232 | $47.35 | Shop at ECS Tuning | ||||
| 15 | Covering column rear left | HELLBEIGE 2 | 1 | 51438232015 | $47.35 | +core | Shop at ECS Tuning | |||
| 15 | Covering column rear right | HELLBEIGE 2 | 1 | 51438232016 | $47.35 | +core | Shop at ECS Tuning | |||
| 16 | Sheet metal screw | ST5,5X16 SW | 2 | 07119900634 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Covering cap | GRAU | 2 | 51437019047 | $3.30 | Shop at ECS Tuning | ||||
| 17 | Covering cap | SCHWARZ | 2 | 51437902428 | $3.30 | Shop at ECS Tuning | ||||
| 17 | Covering cap | HELLBEIGE | 2 | 51438268774 | $3.30 | Shop at ECS Tuning | ||||
| 18 | Covering f A column cover HPS | HELLGRAU | 2 | 51438248252 | $11.51 | Shop at ECS Tuning | ||||
| 18 | Covering f A column cover HPS | HELLBEIGE | 2 | 51438248257 | $11.51 | Shop at ECS Tuning | ||||
| 19 | Bracket left | 1 | 51458222707 | $2.17 | Shop at ECS Tuning | |||||
| 19 | Bracket right | 1 | 51458222708 | $2.17 | Shop at ECS Tuning | |||||
| 20 | Grommet | D=17,5MM | 2 | 54128211460 | $2.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325xi Trim panel A- / B- / C- / D-Column?
- This technical diagram illustrates the Trim panel A- / B- / C- / D-Column within the Vehicle trim group for the 3 Series E46 325xi produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Left column A cover (Part #51437902933).
- Which models use the hardware listed in this Trim panel A- / B- / C- / D-Column?
- The hardware and components featured in the Trim panel A- / B- / C- / D-Column are specific to the 3 Series E46 325xi produced during 2001. These technical specifications ensure that parts like the Left column A cover (51437902933) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel A- / B- / C- / D-Column assembly?
- Each item in the Trim panel A- / B- / C- / D-Column corresponds to the numbered list below the illustration. For the 3 Series E46 325xi, you can identify the Left column A cover by locating its position on the schematic, which then links to the official BMW part number 51437902933 for the Vehicle trim section.
