Carrier, rear for BMW 3 Series E46 323i (2000)

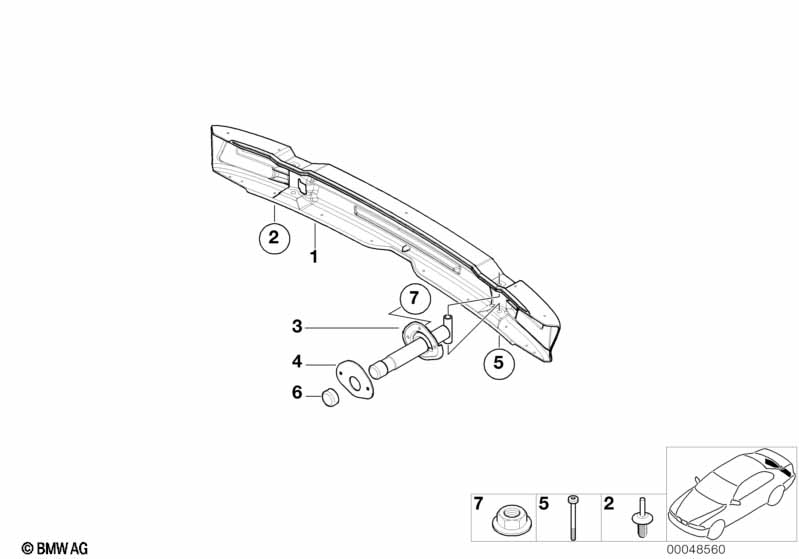

This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, bumper rear | 8 KM/H = 5 MPH | 1 | 51128195324 | $198.63 | ENDED | Shop at ECS Tuning | |||
| 02 | Expanding rivet, black | L=15MM | 1 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 02 | Expanding rivet | 1 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 03 | Shock absorber, rear left | 8 KM/H | 1 | 51128268913 | $96.12 | +core | Shop at ECS Tuning | |||
| 03 | Shock absorber, rear right | 8 KM/H | 1 | 51128268914 | $96.12 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Gasket | 2 | 51128254202 | $1.33 | Shop at ECS Tuning | |||||
| 05 | Fillister-head screw | 2 | 51117070198 | Shop at ECS Tuning | ||||||
| 06 | Cap | 2 | 51121938266 | $0.57 | Shop at ECS Tuning | |||||
| 07 | Hex nut with plate | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323i Carrier, rear?
- This technical diagram illustrates the Carrier, rear within the Vehicle trim group for the 3 Series E46 323i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Carrier, bumper rear (Part #51128195324).
- Which models use the hardware listed in this Carrier, rear?
- The hardware and components featured in the Carrier, rear are specific to the 3 Series E46 323i produced during 2000. These technical specifications ensure that parts like the Carrier, bumper rear (51128195324) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carrier, rear assembly?
- Each item in the Carrier, rear corresponds to the numbered list below the illustration. For the 3 Series E46 323i, you can identify the Carrier, bumper rear by locating its position on the schematic, which then links to the official BMW part number 51128195324 for the Vehicle trim section.
