Fine wood trim, Vavona high-polished for BMW 7 Series E38 735iL (2001)

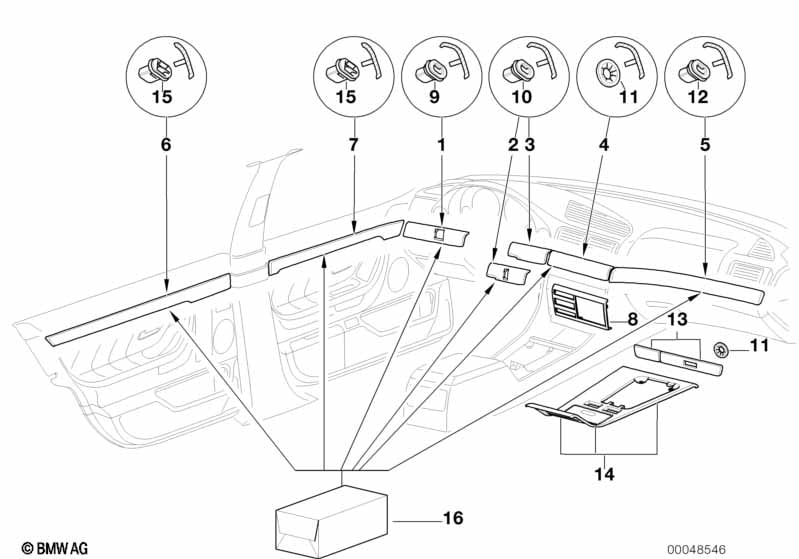

This Fine wood trim, Vavona high-polished technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 02 | Wooden strip,instrument panel cent. rght | VAVONA | 1 | 09/1998 | 51458247168 | ENDED | Shop at ECS Tuning | |||
| 03 | Wooden strip,instrument panel cent. rght | VAVONA | 1 | 09/1998 | 51458258414 | ENDED | Shop at ECS Tuning | |||
| 05 | Wooden strip,instrument panel left | VAVONA | 1 | 09/1998 | 51458247173 | ENDED | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear left | VAVONA | 1 | 09/1998 | 51428246973 | $192.42 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Wooden strip, door rear right | VAVONA | 1 | 09/1998 | 51428246974 | $192.42 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Wooden strip, door front left | VAVONA | 1 | 09/1998 | 51418246961 | $179.97 | ENDED | Shop at ECS Tuning | ||
| 07 | Wooden strip, door front right | VAVONA | 1 | 09/1998 | 51418246962 | $179.97 | ENDED | Shop at ECS Tuning | ||
| 08 | On bord monitor wood strips | VAVONA | 1 | 09/1998 | 51168381230 | $277.88 | ENDED | Shop at ECS Tuning | ||
| 09 | Insert | 2 | 09/1998 | 51458161557 | $1.23 | Shop at ECS Tuning | ||||
| 10 | Insert | 2 | 09/1998 | 51458170519 | $1.23 | Shop at ECS Tuning | ||||
| 11 | Spring nut | X | 09/1998 | 64111364257 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Plug-in retainer | 4 | 09/1998 | 51459141448 | $1.03 | Shop at ECS Tuning | ||||
| 14 | Base of center console | VAVONA | 1 | 09/1998 | 51168158988 | ENDED | Shop at ECS Tuning | |||
| ONLY APPL.TO REAR CENTRE CONSOLE/SA 533 | ||||||||||
| 14 | Base of center console | VAVONA | 1 | 09/1998 | 51168158996 | ENDED | Shop at ECS Tuning | |||
| 15 | Insert | X | 09/1998 | 51417001629 | $1.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
