Handle for BMW 3 Series E46 323i (2000)

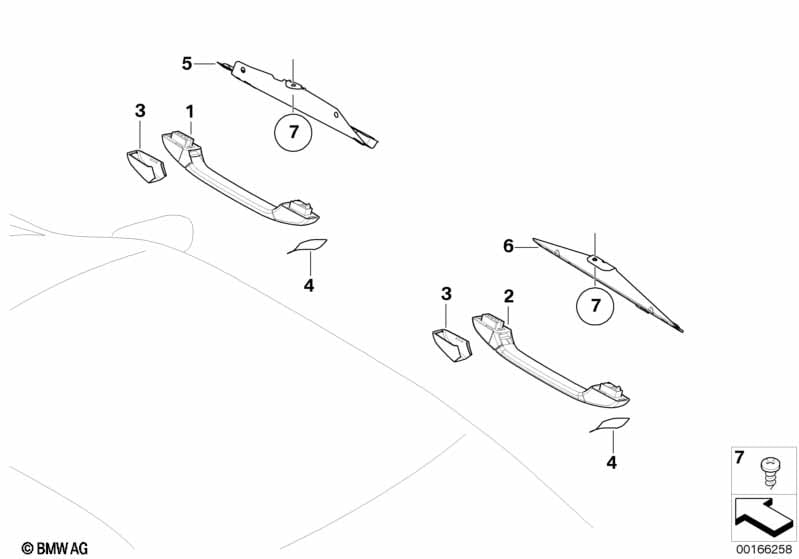

This Handle technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Handle front - ITS | SCHWARZ | 2 | 51162699050 | $34.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Handle front - ITS | HELLGRAU | 2 | 51168231322 | $34.50 | Shop at ECS Tuning | ||||
| 01 | Handle front - ITS | HELLBEIGE | 2 | 51168231329 | $34.50 | +core | Shop at ECS Tuning | |||
| 02 | Handle rear left | SCHWARZ | 1 | 51162699095 | $34.50 | Shop at ECS Tuning | ||||
| 02 | Handle rear right | SCHWARZ | 1 | 51162699096 | $34.50 | Shop at ECS Tuning | ||||
| 02 | Handle rear left - ITS | HELLGRAU | 1 | 51168231325 | $34.50 | +core | Shop at ECS Tuning | |||
| 02 | Handle, rear right - ITS | HELLGRAU | 1 | 51168231326 | $34.50 | +core | Shop at ECS Tuning | |||
| 02 | Handle rear left - ITS | HELLBEIGE | 1 | 51168231327 | $34.50 | +core | Shop at ECS Tuning | |||
| 02 | Handle, rear right - ITS | HELLBEIGE | 1 | 51168231328 | $34.50 | +core | Shop at ECS Tuning | |||
| 03 | Cap | SCHWARZ | 6 | 51162699051 | $0.92 | ENDED | Shop at ECS Tuning | |||
| 03 | Cap | HELLGRAU | 6 | 51168244447 | $1.08 | Shop at ECS Tuning | ||||
| 03 | Cap | HELLBEIGE | 6 | 51168244448 | $1.08 | Shop at ECS Tuning | ||||
| 04 | Cap left | SCHWARZ | 1 | 51162699097 | $1.08 | Shop at ECS Tuning | ||||
| 04 | Cap right | SCHWARZ | 1 | 51162699098 | $1.08 | Shop at ECS Tuning | ||||
| 04 | Cap left | HELLGRAU | 1 | 51168244449 | $1.08 | Shop at ECS Tuning | ||||
| 04 | Cap right | HELLGRAU | 1 | 51168244450 | $1.08 | Shop at ECS Tuning | ||||
| 04 | Cap left | HELLBEIGE | 1 | 51168244451 | $1.08 | Shop at ECS Tuning | ||||
| 04 | Cap right | HELLBEIGE | 1 | 51168244452 | $1.08 | Shop at ECS Tuning | ||||
| 05 | Bracket f left front handle ITS | 1 | 51168219059 | $1.33 | Shop at ECS Tuning | |||||
| 05 | Bracket f right front handle ITS | 1 | 51168219060 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket f left rear handle ITS | 1 | 51168219061 | $1.40 | Shop at ECS Tuning | |||||
| 06 | Bracket f right rear handle ITS | 1 | 51168219062 | $1.33 | Shop at ECS Tuning | |||||
| 07 | Sheet metal screw | ST5, 5X13 | 12 | 07119904184 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST4,8X13-C-U1-Z | 12 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,8X13 | 12 | 07119907786 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
