Lateral trunk floor trim panel for BMW 3 Series E46 330d (2001)

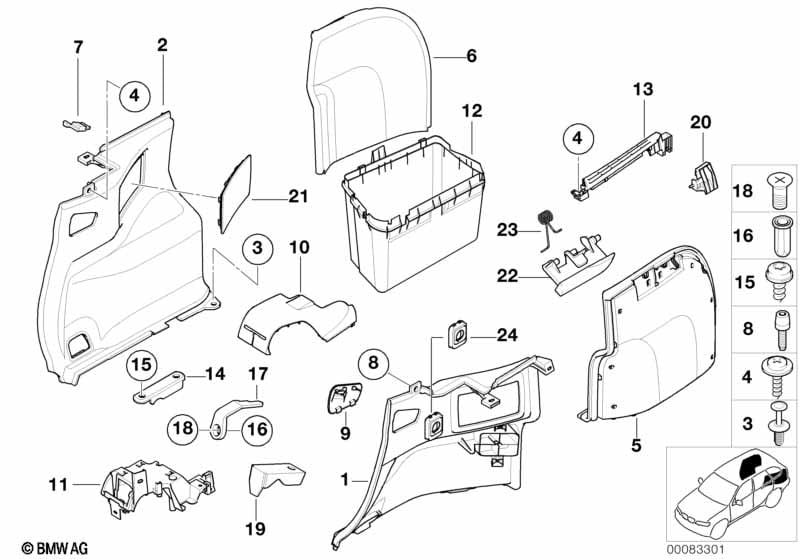

This Lateral trunk floor trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel left | ANTHRAZIT | 1 | 51478233657 | $88.00 | Shop at ECS Tuning | ||||
| 01 | Trim panel left | GRAU | 1 | 51478256545 | $91.59 | Shop at ECS Tuning | ||||
| 01 | Trim panel left | HELLBEIGE | 1 | 51478256547 | $88.00 | Shop at ECS Tuning | ||||
| 02 | Trim panel right | ANTHRAZIT | 1 | 51478233658 | $88.00 | Shop at ECS Tuning | ||||
| 02 | Trim panel right | GRAU | 1 | 51478256546 | $91.59 | Shop at ECS Tuning | ||||
| 02 | Trim panel right | HELLBEIGE | 1 | 51478256548 | $88.00 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | ST4,8X19 | 4 | 07119904714 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Trim panel left | ANTHRAZIT | 1 | 51478235629 | $84.54 | Shop at ECS Tuning | ||||
| 05 | Trim panel left | GRAU | 1 | 51478256553 | $77.84 | Shop at ECS Tuning | ||||
| 05 | Trim panel left | HELLBEIGE | 1 | 51478256555 | $84.54 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Navigation system, radio or Navigation system Professional or CD changer for 6 CDs |
S606A=Yes S609A=Yes S672A=Yes |
|||||||||
| 05 | Trim panel left | ANTHRAZIT | 1 | 51478235631 | $84.54 | Shop at ECS Tuning | ||||
| 05 | Trim panel left | GRAU | 1 | 51478256557 | $88.00 | Shop at ECS Tuning | ||||
| 05 | Trim panel left | HELLBEIGE | 1 | 51478256559 | $88.00 | ENDED | Shop at ECS Tuning | |||
| 06 | Trim panel right | ANTHRAZIT | 1 | 51478233656 | $88.00 | ENDED | Shop at ECS Tuning | |||
| 06 | Trim panel right | GRAU | 1 | 51478256554 | $88.00 | Shop at ECS Tuning | ||||
| 06 | Trim panel right | HELLBEIGE | 1 | 51478256556 | $88.00 | Shop at ECS Tuning | ||||
| 07 | Left support f roll.blind sight protect. | 1 | 51477026709 | $34.30 | Shop at ECS Tuning | |||||
| 07 | Right support f roll.blind sight protect | 1 | 51477026710 | $34.30 | ENDED | Shop at ECS Tuning | ||||
| 08 | Torx bolt | M5X19 | 4 | 07143450893 | $0.86 | Shop at ECS Tuning | ||||
| 09 | Covering left | SCHWARZ | 1 | 51478262249 | $2.94 | Shop at ECS Tuning | ||||
| 09 | Covering right | SCHWARZ | 1 | 51478262250 | $2.94 | Shop at ECS Tuning | ||||
| 10 | Covering left | SCHWARZ | 1 | 51478235649 | $18.27 | Shop at ECS Tuning | ||||
| 10 | Covering right | SCHWARZ | 1 | 51478235650 | $18.27 | Shop at ECS Tuning | ||||
| 10 | Covering left | GRAU | 1 | 51478256903 | $18.27 | Shop at ECS Tuning | ||||
| 10 | Covering right | GRAU | 1 | 51478256904 | $18.27 | Shop at ECS Tuning | ||||
| 10 | Covering left | HELLBEIGE 2 | 1 | 51478256917 | $18.27 | Shop at ECS Tuning | ||||
| 10 | Covering right | HELLBEIGE 2 | 1 | 51478256918 | $18.27 | Shop at ECS Tuning | ||||
| 11 | Base support system | 1 | 51478237133 | $23.15 | Shop at ECS Tuning | |||||
| 11 | Base support system | 1 | 51478237134 | $23.15 | Shop at ECS Tuning | |||||
| 12 | Trunk tray right | 1 | 51478259475 | $18.39 | Shop at ECS Tuning | |||||
| 13 | Left vent louver | SCHWARZ | 1 | 51478235651 | $28.75 | Shop at ECS Tuning | ||||
| 13 | Right vent louver | SCHWARZ | 1 | 51478235652 | $28.75 | Shop at ECS Tuning | ||||
| 13 | Left vent louver | GRAU | 1 | 51478256941 | $28.75 | Shop at ECS Tuning | ||||
| 13 | Right vent louver | GRAU | 1 | 51478256942 | $28.75 | Shop at ECS Tuning | ||||
| 13 | Left vent louver | HELLBEIGE 2 | 1 | 51478256943 | $28.75 | Shop at ECS Tuning | ||||
| 13 | Right vent louver | HELLBEIGE 2 | 1 | 51478256944 | $28.36 | Shop at ECS Tuning | ||||
| 14 | Catch bracket | 1 | 51718244931 | $4.62 | Shop at ECS Tuning | |||||
| 15 | Torx-bolt with washer | 2 | 52207000957 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 16 | Blind rivet nut, flat headed | M6 | 2 | 51248226003 | $2.13 | Shop at ECS Tuning | ||||
| 17 | Locking bar left | 1 | 51717038095 | $13.48 | ENDED | Shop at ECS Tuning | ||||
| 17 | Locking bar right | 1 | 51717038096 | $13.48 | Shop at ECS Tuning | |||||
| 18 | Countersunk head screw | M6X16 | 2 | 07119901708 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Locking bow | 1 | 51718215277 | $8.97 | Shop at ECS Tuning | |||||
| 21 | Cover f left loudspeaker | SCHWARZ | 1 | 51478256549 | $17.78 | Shop at ECS Tuning | ||||
| 21 | Cover f right loudspeaker | SCHWARZ | 1 | 51478256550 | $17.78 | ENDED | Shop at ECS Tuning | |||
| 21 | Cover f left loudspeaker | HELLBEIGE | 1 | 51478257091 | $17.78 | Shop at ECS Tuning | ||||
| 21 | Cover f right loudspeaker | HELLBEIGE | 1 | 51478257092 | $17.78 | Shop at ECS Tuning | ||||
| Parts are no longer produced by Antolin, therefore the switch to the black variant 8256549. |
||||||||||
| 21 | Cover f left loudspeaker | GRAU | 1 | 51478257089 | $17.78 | ENDED | Shop at ECS Tuning | |||
| Parts are no longer produced by Antolin, therefore the switch to the black variant 8256550. |
||||||||||
| 21 | Cover f right loudspeaker | GRAU | 1 | 51478257090 | $17.78 | ENDED | Shop at ECS Tuning | |||
| 22 | Unlocking unit, left | 1 | 51478261925 | $5.68 | ENDED | Shop at ECS Tuning | ||||
| 22 | Unlocking unit, right | 1 | 51478261926 | $5.68 | Shop at ECS Tuning | |||||
| 23 | Retainer spring left | 1 | 51478261927 | $6.57 | ENDED | Shop at ECS Tuning | ||||
| 23 | Retainer spring right | 1 | 51478261928 | $6.57 | Shop at ECS Tuning | |||||
| 24 | Socket mount | ANTHRAZIT | 1 | 51477044490 | $9.75 | Shop at ECS Tuning | ||||
| 24 | Socket mount | GRAU | 1 | 51477044491 | $9.53 | Shop at ECS Tuning | ||||
| 24 | Socket mount | HELLBEIGE | 1 | 51477044492 | $9.75 | Shop at ECS Tuning | ||||
