Extending cargo cover/partition net for BMW 3 Series E46 330d (2005)

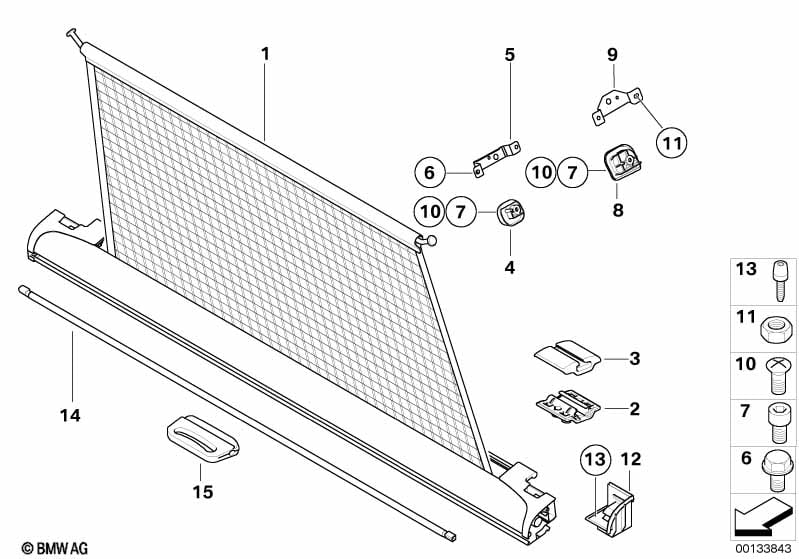

This Extending cargo cover/partition net technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Net/Roller blind f luggage compartment | SCHWARZ | 1 | 51477160582 | $776.56 | Shop at ECS Tuning | ||||
| 01 | Net/Roller blind f luggage compartment | BEIGE | 1 | 51477160583 | $776.56 | Shop at ECS Tuning | ||||
| 01 | Net/Roller blind f luggage compartment | GRAU | 1 | 51477160584 | $776.56 | Shop at ECS Tuning | ||||
| 02 | Support f roller blind, backrest | 2 | 51479149454 | $35.36 | Shop at ECS Tuning | |||||
| 03 | Cover f roller cover support | SCHWARZ | 2 | 51478235624 | $2.30 | Shop at ECS Tuning | ||||
| 04 | Support left | SCHWARZ | 1 | 51478235647 | $16.85 | Shop at ECS Tuning | ||||
| 04 | Support right | SCHWARZ | 1 | 51478235648 | $16.85 | Shop at ECS Tuning | ||||
| 04 | Support left | GRAU | 1 | 51478256883 | $17.14 | ENDED | Shop at ECS Tuning | |||
| 04 | Support right | GRAU | 1 | 51478256884 | $17.14 | ENDED | Shop at ECS Tuning | |||
| 04 | Support left | HELLBEIGE | 1 | 51478256885 | $16.85 | ENDED | Shop at ECS Tuning | |||
| 04 | Support right | HELLBEIGE | 1 | 51478256886 | $16.85 | ENDED | Shop at ECS Tuning | |||
| 05 | Bracket left | 1 | 51478254315 | $1.51 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bracket right | 1 | 51478254316 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Countersunk screw | M6X12-8.8-SW | 2 | 07119901041 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M6X16-8.8-KL-ZN | 4 | 07119903335 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Fillister head screw with collar | ISA | 2 | 07147157676 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Support left | SCHWARZ | 1 | 51478233661 | $17.14 | Shop at ECS Tuning | ||||
| 08 | Support right | SCHWARZ | 1 | 51478233662 | $17.14 | ENDED | Shop at ECS Tuning | |||
| 08 | Support left | GRAU | 1 | 51478256893 | $17.14 | ENDED | Shop at ECS Tuning | |||
| 08 | Support right | GRAU | 1 | 51478256894 | $17.14 | ENDED | Shop at ECS Tuning | |||
| 08 | Support left | HELLBEIGE 2 | 1 | 51478256895 | $16.85 | Shop at ECS Tuning | ||||
| 08 | Support right | HELLBEIGE 2 | 1 | 51478256896 | $16.85 | Shop at ECS Tuning | ||||
| 09 | Bracket left | 1 | 51478254317 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bracket right | 1 | 51478254318 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 10 | Oval-head screw black | M6X12-8.8-H-ZN | 4 | 07119907575 | $0.82 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Hex nut with plate | M6 ZNT | 4 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Left support f roll.blind sight protect. | 1 | 11/2004 | 51479129061 | $34.30 | Shop at ECS Tuning | ||||
| 12 | Right support f roll.blind sight protect | 1 | 11/2004 | 51479129062 | Shop at ECS Tuning | |||||
| 13 | Torx bolt | M5X19 | 4 | 07143450893 | $0.86 | Shop at ECS Tuning | ||||
| 14 | Roller blind pull-out bar | 1 | 51477009968 | $17.14 | Shop at ECS Tuning | |||||
| 15 | Handle | 1 | 51477046771 | $22.20 | Shop at ECS Tuning |
