Exterior trim / grill for BMW 3 Series E46 325xi (2001)

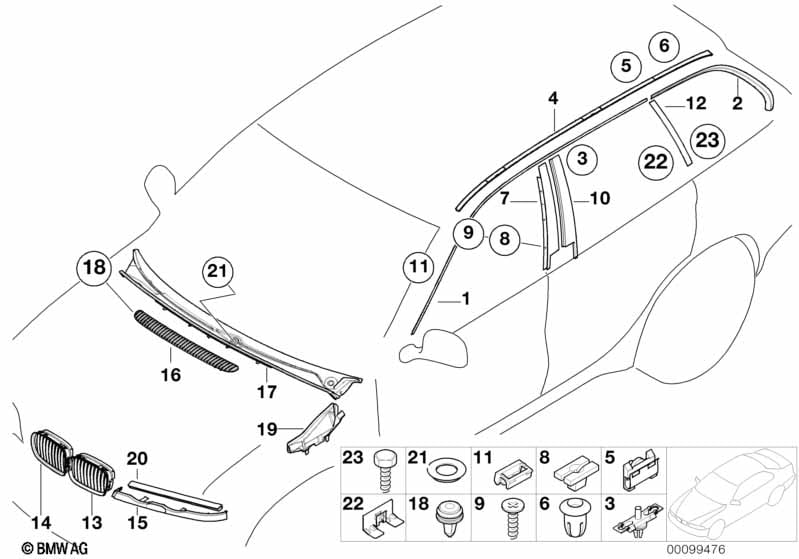

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Molding, roof drainage, left front | CHROM | 1 | 51137000513 | $188.52 | ENDED | Shop at ECS Tuning | |||
| 01 | Molding, roof drainage, right front | CHROM | 1 | 51137000514 | $188.52 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 01 | Molding, roof drainage, left front | GLANZSCHWARZ | 1 | 51137890665 | $246.18 | Shop at ECS Tuning | ||||
| 01 | Molding, roof drainage, right front | GLANZSCHWARZ | 1 | 51137890666 | $246.18 | Shop at ECS Tuning | ||||
| 02 | Molding, roof drainage, left rear | CHROM | 1 | 51137000517 | $188.52 | Shop at ECS Tuning | ||||
| 02 | Molding, roof drainage, right rear | CHROM | 1 | 51137000518 | $188.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 02 | Molding, roof drainage, left rear | GLANZSCHWARZ | 1 | 51137890667 | $246.18 | Shop at ECS Tuning | ||||
| 02 | Molding, roof drainage, right rear | GLANZSCHWARZ | 1 | 51137890668 | $246.18 | Shop at ECS Tuning | ||||
| 03 | Clamp | 26 | 51138204858 | $1.66 | Shop at ECS Tuning | |||||
| 04 | Roof molding prime-coated left | 1 | 51138208775 | $116.40 | Shop at ECS Tuning | |||||
| 04 | Roof molding prime-coated right | 1 | 51138208776 | $116.40 | ENDED | Shop at ECS Tuning | ||||
| 04 | Roof molding painted left | CODE - UNI/MET. | 1 | 51130007783 | ENDED, +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 04 | Roof molding painted right | CODE - UNI/MET. | 1 | 51130007786 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 05 | Moulding clamp | 10 | 51138262422 | $1.37 | Shop at ECS Tuning | |||||
| 06 | Grommet | 10 | 51137032221 | $0.79 | Shop at ECS Tuning | |||||
| 07 | Window frame cover, front left door | 1 | 51338160969 | $39.00 | Shop at ECS Tuning | |||||
| 07 | Window frame cover, front right door | 1 | 51338160970 | $39.00 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 07 | Window frame cover, front left door | GLANZSCHWARZ | 1 | 51332695283 | $160.66 | Shop at ECS Tuning | ||||
| 07 | Window frame cover, front right door | GLANZSCHWARZ | 1 | 51332695284 | $160.66 | Shop at ECS Tuning | ||||
| 08 | Expanding nut | TS 4 | 6 | 51321960663 | $0.32 | Shop at ECS Tuning | ||||
| 08 | Expanding nut | SCHWARZ | 6 | 51337044756 | $0.39 | Shop at ECS Tuning | ||||
| 09 | Countersunk head screw | 6 | 51337068211 | $0.19 | Shop at ECS Tuning | |||||
| 10 | Window frame cover, rear left door | 1 | 51348160971 | $39.00 | Shop at ECS Tuning | |||||
| 10 | Cover, window frame, right rear door | 1 | 51348160972 | $39.00 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 10 | Window frame cover, rear left door | GLANZSCHWARZ | 1 | 51342695289 | $160.66 | Shop at ECS Tuning | ||||
| 10 | Cover, window frame, right rear door | GLANZSCHWARZ | 1 | 51342695290 | $160.66 | Shop at ECS Tuning | ||||
| 11 | Moulding clamp | 2 | 51138253271 | $1.00 | Shop at ECS Tuning | |||||
| 12 | Cover,wndw frame,C-column,door rear lft | 1 | 51348208993 | $39.00 | Shop at ECS Tuning | |||||
| 12 | Cover,wndw frame,C-column,door rear rght | 1 | 51348208994 | $39.00 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 12 | Cover,wndw frame,C-column,door rear lft | GLANZSCHWARZ | 1 | 51347891401 | $117.11 | Shop at ECS Tuning | ||||
| 12 | Cover,wndw frame,C-column,door rear rght | GLANZSCHWARZ | 1 | 51347891402 | $117.11 | Shop at ECS Tuning | ||||
| 13 | Grille left | SCHWARZ | 1 | 09/2001 | 51138208487 | $43.38 | Shop at ECS Tuning | |||
| 13 | Grille left | CHROM | 1 | 09/2001 | 51138208489 | $64.00 | Shop at ECS Tuning | |||
| 13 | Grille left | CHROM | 1 | 09/2001 | 51138208489 | $64.00 | Shop at ECS Tuning | |||
| CAN BE RETROFITTED | ||||||||||
| 14 | Grille right | SCHWARZ | 1 | 09/2001 | 51138208488 | $43.38 | Shop at ECS Tuning | |||
| 14 | Grille right | CHROM | 1 | 09/2001 | 51138208490 | $64.00 | Shop at ECS Tuning | |||
| 14 | Grille right | CHROM | 1 | 09/2001 | 51138208490 | $64.00 | Shop at ECS Tuning | |||
| CAN BE RETROFITTED | ||||||||||
| 15 | Cover, primed, left | 1 | 09/2001 | 51138208485 | $37.17 | Shop at ECS Tuning | ||||
| 15 | Cover, primed, right | 1 | 09/2001 | 51138208486 | $37.17 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 15 | Cover, primed, left | 1 | 09/2001 | 51138227641 | $37.17 | Shop at ECS Tuning | ||||
| 15 | Cover, primed, right | 1 | 09/2001 | 51138227642 | $37.17 | Shop at ECS Tuning | ||||
| 16 | Finisher | SCHWARZ | 1 | 01/2002 | 51138204860 | $22.02 | Shop at ECS Tuning | |||
| 16 | Finisher primed | 1 | 01/2002 | 51138230237 | $39.02 | Shop at ECS Tuning | ||||
| 17 | Cover, windshield | 1 | 51718208483 | $57.86 | Shop at ECS Tuning | |||||
| 18 | Clip | 7 | 51718234698 | $0.92 | Shop at ECS Tuning | |||||
| 19 | Covering left | 1 | 51718208479 | $6.00 | Shop at ECS Tuning | |||||
| 19 | Covering right | 1 | 51718208480 | $6.00 | Shop at ECS Tuning | |||||
| 20 | Synthetic strip | 2 | 51138228985 | $2.83 | Shop at ECS Tuning | |||||
| 21 | Gasket | 2 | 51718233437 | $1.72 | Shop at ECS Tuning | |||||
| 22 | Clamp | 1 | 07147209203 | $0.79 | Shop at ECS Tuning | |||||
| 22 | Clamp | 2 | 51348244736 | $0.79 | Shop at ECS Tuning | |||||
| 23 | Sheet metal screw | 3 | 07119902536 | Shop at ECS Tuning | ||||||
