Carrier instrument panel for BMW MINI Countryman F60 One (2020)

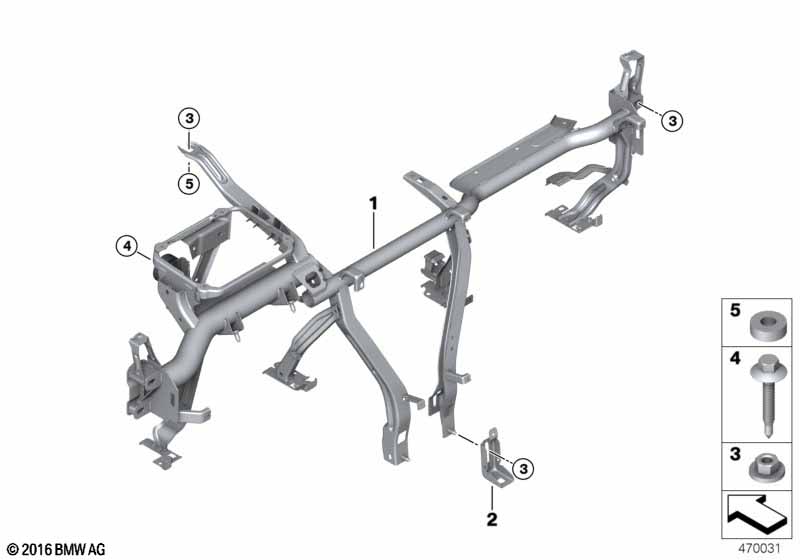

This Carrier instrument panel technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting tube, instrument panel | 1 | 51459374206 | NoS | Shop at ECS Tuning | |||||
| 02 | Bracket, tunnel brace, I-panel carrier | 2 | 51457946449 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M8 | 9 | 07149200945 | Shop at ECS Tuning | |||||
| 04 | Hexagon screw with flange | 1 | 07147135316 | $1.64 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | 1 | 51459312760 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 One Carrier instrument panel?
- This technical diagram illustrates the Carrier instrument panel within the Vehicle trim group for the MINI Countryman F60 One produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Supporting tube, instrument panel (Part #51459374206).
- Which models use the hardware listed in this Carrier instrument panel?
- The hardware and components featured in the Carrier instrument panel are specific to the MINI Countryman F60 One produced during 2020. These technical specifications ensure that parts like the Supporting tube, instrument panel (51459374206) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carrier instrument panel assembly?
- Each item in the Carrier instrument panel corresponds to the numbered list below the illustration. For the MINI Countryman F60 One, you can identify the Supporting tube, instrument panel by locating its position on the schematic, which then links to the official BMW part number 51459374206 for the Vehicle trim section.
