Glazing for BMW 3 Series E46 330Ci (2003)

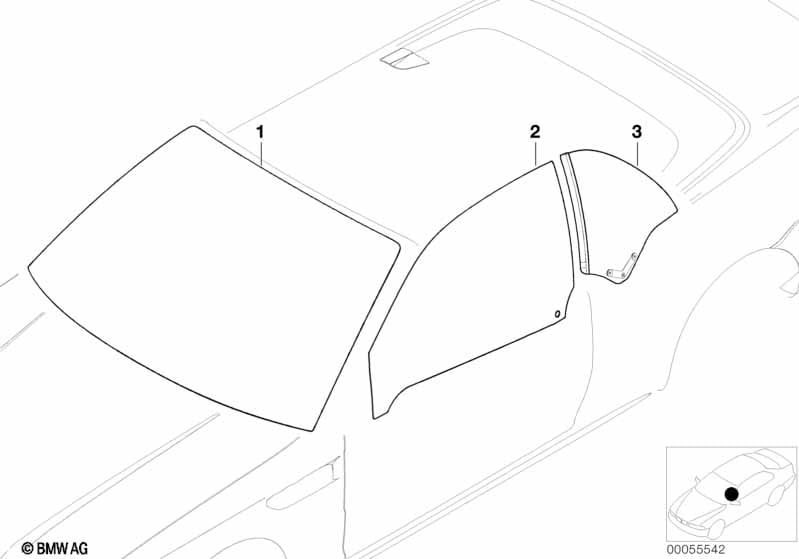

This Glazing technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A modified silkscreen print is applied adjacent to the sun visor in place of the colored wedge. A modified silkscreen print is applied adjacent to the sun visor in place of the colored wedge. |
|||||||||
| For vehicles with National version China and Rain sensor |
L8AAA=Yes S521A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | 1 | 09/2001 | 51317059701 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2001 | 83192180001 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 09/2001 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Covering Upper | 1 | 09/2001 | 51318208468 | $32.57 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Rain sensor |
L8AAA=No S521A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | 1 | 09/2001 | 51317059701 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2001 | 83192289285 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 09/2001 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Covering Upper | 1 | 09/2001 | 51318208468 | $32.57 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Climate comfort windscreen and Rain sensor |
L8AAA=No S358A=Yes S521A=Yes |
|||||||||
| 01 | Windshield, infrared | 1 | 09/2001 | 51317059703 | $615.08 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2001 | 83192289285 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 09/2001 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Covering Upper | 1 | 09/2001 | 51318208468 | $32.57 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Green windscreen, green shade band and Rain sensor |
L8AAA=No S354A=No S521A=No |
|||||||||
| 01 | Green windshield | 1 | 51318236302 | $361.57 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318208468 | $32.57 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Rain sensor |
L8AAA=Yes S354A=No S521A=No |
|||||||||
| 01 | Green windshield | 1 | 51318236302 | $361.57 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318208468 | $32.57 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Rain sensor |
L8AAA=No S354A=Yes S521A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | 1 | 09/2001 | 51317059702 | $435.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2001 | 83192289285 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 09/2001 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Covering Upper | 1 | 09/2001 | 51318208468 | $32.57 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Green windscreen, green shade band and Rain sensor |
L8AAA=Yes S354A=Yes S521A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | 1 | 09/2001 | 51317059702 | $435.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2001 | 83192180001 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 09/2001 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Covering Upper | 1 | 09/2001 | 51318208468 | $32.57 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Climate comfort windscreen and Rain sensor |
L8AAA=Yes S358A=Yes S521A=Yes |
|||||||||
| 01 | Windshield, infrared | 1 | 09/2001 | 51317059703 | $615.08 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2001 | 83192180001 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 09/2001 | 83192211217 | Shop at ECS Tuning | ||||
| -- | Covering Upper | 1 | 09/2001 | 51318208468 | $32.57 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Rain sensor |
L8AAA=Yes S354A=No S358A=Yes S521A=No |
|||||||||
| 01 | Windshield, infrared | 1 | 51317019544 | $576.84 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318208468 | $32.57 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Rain sensor |
L8AAA=Yes S354A=Yes S358A=No S521A=No |
|||||||||
| 01 | Green windshield | 1 | 51318236301 | $396.47 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318208468 | $32.57 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Rain sensor |
L8AAA=No S354A=No S358A=Yes S521A=No |
|||||||||
| 01 | Windshield, infrared | 1 | 51317019544 | $576.84 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318208468 | $32.57 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Green windscreen, green shade band and Climate comfort windscreen and Rain sensor |
L8AAA=No S354A=Yes S358A=No S521A=No |
|||||||||
| 01 | Green windshield | 1 | 51318236301 | $396.47 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Covering Upper | 1 | 51318208468 | $32.57 | Shop at ECS Tuning | |||||
| 02 | Side window, door, green, left | 1 | 51327049327 | $121.20 | Shop at ECS Tuning | |||||
| 02 | Side window, door, green, right | 1 | 51327049328 | $121.20 | Shop at ECS Tuning | |||||
| 03 | Side window, green, left | 1 | 51368209423 | $152.64 | Shop at ECS Tuning | |||||
| 03 | Side window green right | 1 | 51368209424 | $152.64 | Shop at ECS Tuning | |||||
