Trunk lid gasket for BMW 3 Series E46 316i (2005)

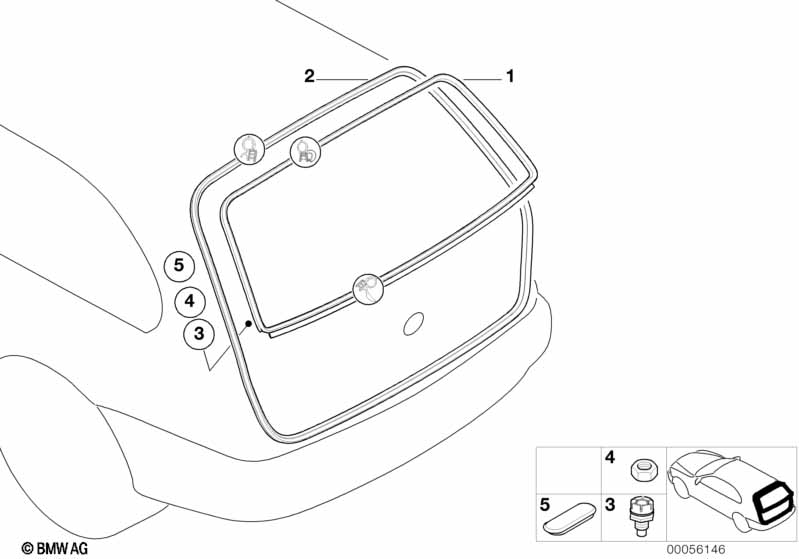

This Trunk lid gasket technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | sealing | 1 | 51718233431 | $109.90 | Shop at ECS Tuning | |||||
| 02 | Trunk lid sealing | 1 | 51717019955 | $90.18 | Shop at ECS Tuning | |||||
| 03 | Stop buffer | 2 | 51243427678 | $11.15 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M12X1,5 | 2 | 07119904311 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Plug | 50X20 | 1 | 61138367921 | $2.00 | ENDED | Shop at ECS Tuning |
