Sun visors for BMW 3 Series E46 323Ci (2000)

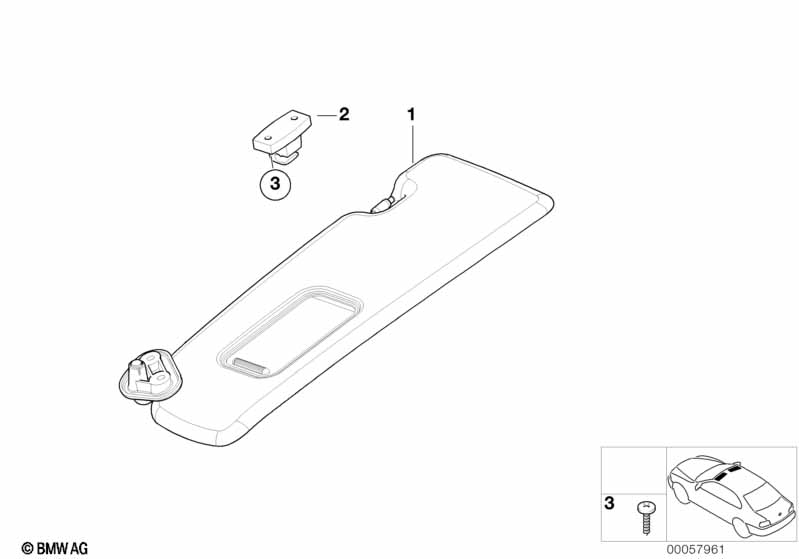

This Sun visors technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sun visor with mirror-covering left | SCHWARZ | 1 | 51168204267 | $57.17 | Shop at ECS Tuning | ||||
| 01 | Sun visor with mirror-covering right | SCHWARZ | 1 | 51168204268 | $57.17 | Shop at ECS Tuning | ||||
| 02 | Sun visor bracket | HELLGRAU | 2 | 51168243574 | $1.68 | Shop at ECS Tuning | ||||
| 02 | Sun visor bracket | HELLBEIGE | 2 | 51168243575 | $1.68 | Shop at ECS Tuning | ||||
| 02 | Sun visor bracket | SCHWARZ | 2 | 51168243576 | $1.68 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | ST4,8X19 SW | 2 | 07119904255 | $0.20 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323Ci Sun visors?
- This technical diagram illustrates the Sun visors within the Vehicle trim group for the 3 Series E46 323Ci produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Sun visor with mirror-covering left (Part #51168204267).
- Which models use the hardware listed in this Sun visors?
- The hardware and components featured in the Sun visors are specific to the 3 Series E46 323Ci produced during 2000. These technical specifications ensure that parts like the Sun visor with mirror-covering left (51168204267) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sun visors assembly?
- Each item in the Sun visors corresponds to the numbered list below the illustration. For the 3 Series E46 323Ci, you can identify the Sun visor with mirror-covering left by locating its position on the schematic, which then links to the official BMW part number 51168204267 for the Vehicle trim section.
