Door window lifting mechanism rear for BMW 3 Series E46 320Ci

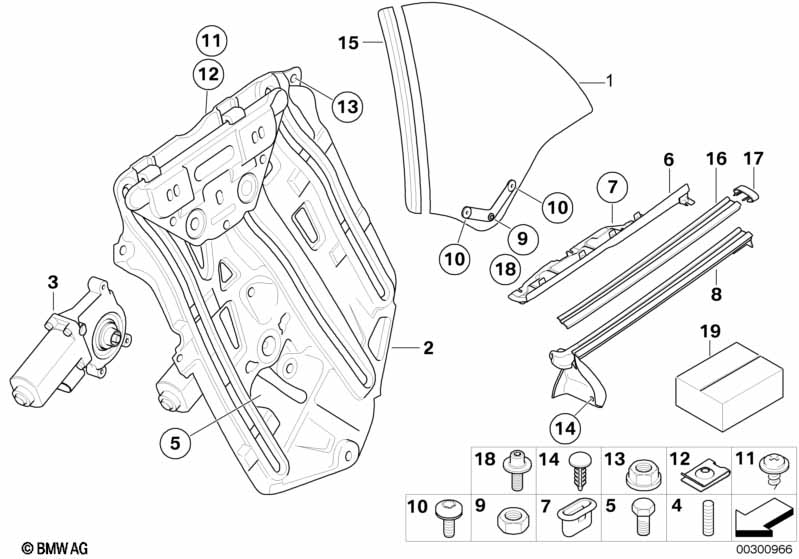

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side window, green, left | 1 | 51368209423 | $152.64 | Shop at ECS Tuning | |||||
| 01 | Side window green right | 1 | 51368209424 | $152.64 | Shop at ECS Tuning | |||||
| 02 | Window lifter, electric, rear left | 1 | 51378229593 | $280.61 | Shop at ECS Tuning | |||||
| 02 | Window lifter, electric, rear right | 1 | 51378229594 | $280.61 | Shop at ECS Tuning | |||||
| only applies to window lifter right | ||||||||||
| 03 | Drive for window lifter, back | BOSCH | 1 | 67628362066 | $147.05 | Shop at ECS Tuning | ||||
| only applies to window lifter left | ||||||||||
| 03 | Drive for window lifter, back | 2-POLIG | 1 | 67628362065 | $147.05 | Shop at ECS Tuning | ||||
| 04 | Threaded bolt | 8 | 51377010363 | $2.62 | Shop at ECS Tuning | |||||
| 05 | Screw | 8 | 51377010364 | $2.83 | Shop at ECS Tuning | |||||
| 06 | Connection angle, left | 1 | 51378229479 | $11.06 | Shop at ECS Tuning | |||||
| 06 | Connection angle, right | 1 | 51378229480 | $11.06 | Shop at ECS Tuning | |||||
| 07 | Insert | 2 | 07417203297 | $0.94 | Shop at ECS Tuning | |||||
| 08 | Outer weatherstrip, left | CHROM | 1 | 51367026387 | $132.28 | Shop at ECS Tuning | ||||
| 08 | Outer weatherstrip, right | CHROM | 1 | 51367026388 | $132.28 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 08 | Outer weatherstrip, left | GLANZSCHWARZ | 1 | 51377894363 | $132.28 | Shop at ECS Tuning | ||||
| 08 | Outer weatherstrip, right | GLANZSCHWARZ | 1 | 51377894364 | $132.28 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 10 | Torx-bolt with washer | M6X12 | 4 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST4,2-1-ZNS3 | 6 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Hex nut with plate | M8 | 4 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 14 | Plug | D=4,00 MM | 6 | 51718195651 | $0.26 | Shop at ECS Tuning | ||||
| 15 | Window gasket, left rear | 1 | 51368209421 | $75.31 | Shop at ECS Tuning | |||||
| 15 | Window gasket, right rear | 1 | 51368209422 | $75.31 | Shop at ECS Tuning | |||||
| 16 | Inner left window channel cover | 1 | 51367026389 | $105.03 | Shop at ECS Tuning | |||||
| 16 | Inner right window channel cover | 1 | 51367026390 | $105.03 | Shop at ECS Tuning | |||||
| 17 | Inner left window channel cover | 1 | 51367026389 | $105.03 | Shop at ECS Tuning | |||||
| 18 | Adjusting screw | 1 | 07146956595 | $0.89 | Shop at ECS Tuning | |||||
| 19 | Set, mounted parts, power window, rear | VALUE PARTS | 2 | 51102311936 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
