Various body parts for BMW 3 Series E36 325i (1995)

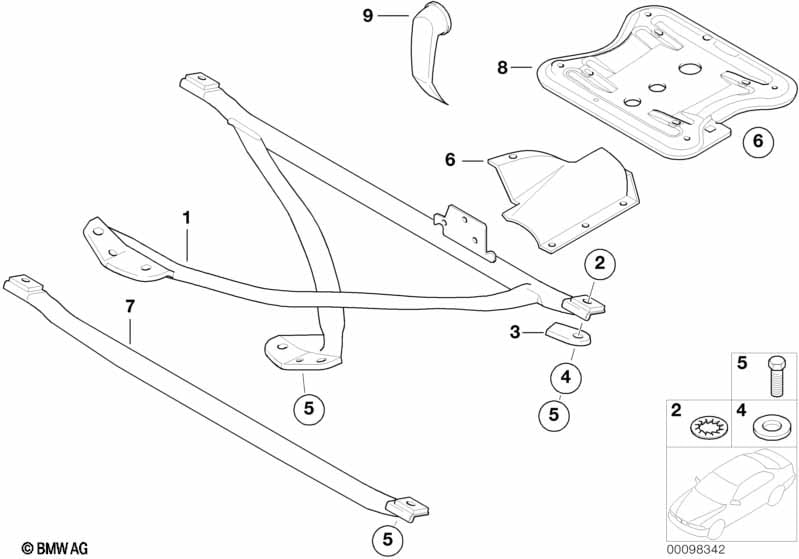

This Various body parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cross reinforcement | 1 | 51718410212 | $213.30 | Shop at ECS Tuning | |||||
| 02 | Tooth washer | 2 | 51714199830 | ENDED | Shop at ECS Tuning | |||||
| 03 | Reinforcement left | 1 | 51718176117 | $4.85 | ENDED | Shop at ECS Tuning | ||||
| 03 | Reinforcement right | 1 | 51718176118 | $4.85 | ENDED | Shop at ECS Tuning | ||||
| 04 | Washer | A10,5 | 2 | 07119931096 | $0.22 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X25-8.8-ZNS | 2 | 07119901164 | $1.30 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X30-ZNNIV SI | 4 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X20-ZNS3 | 4 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M10X35-Z1-10.9 | 2 | 33306760652 | $0.88 | Shop at ECS Tuning | ||||
| 06 | Covering Lower | 1 | 51718179954 | $37.32 | ENDED | Shop at ECS Tuning | ||||
| 08 | Connecting support | 1 | 51712693023 | $51.43 | +core | Shop at ECS Tuning | ||||
| 09 | Water hose | D=30 | 2 | 09/1995 | 51738144152 | $3.86 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
