Front panel for BMW 3 Series E46 330Ci (2003)

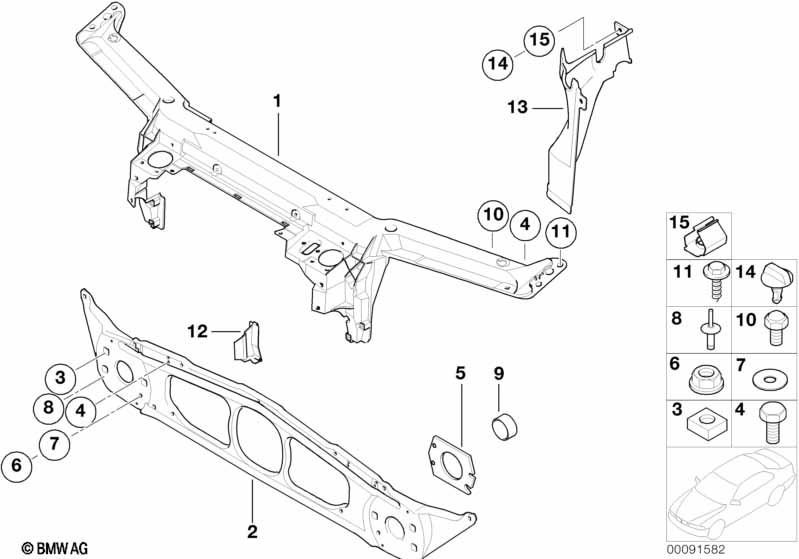

This Front panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front panel, upper part | 1 | 10/2002 | 51717114123 | $251.51 | Shop at ECS Tuning | ||||
| 02 | Crosslink | 1 | 51717111694 | $166.62 | Shop at ECS Tuning | |||||
| 03 | Square nut | M6 | 6 | 07119904050 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X20-U2-8.8 | 4 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X22-8.8-ZNS3 | 2 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X25-U2 | 8 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 05 | Spacer plate | 1.0MM | 2 | 51718245775 | $3.27 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M6-8-ZNNIV SI | 16 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 07 | Washer | A8,4X25 | 6 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Rivet | 4,8-4A | 4 | 07129948781 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Cap, shock absorber | 2 | 51118162553 | $2.54 | Shop at ECS Tuning | |||||
| 10 | Hood stopper | 2 | 10/2002 | 51717079672 | $1.13 | Shop at ECS Tuning | ||||
| 11 | Sheet metal screw | 6,3 X 22 | 4 | 07119901587 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 11 | Sheet metal screw | ST6,3X22 | 4 | 07119904268 | $0.38 | Shop at ECS Tuning | ||||
| 12 | cover, module carrier left | 1 | 51718201161 | $1.83 | Shop at ECS Tuning | |||||
| 13 | bulkhead engine compartment top left | 1 | 51718202799 | $38.82 | Shop at ECS Tuning | |||||
| 14 | Lock | 2 | 51718204904 | $0.65 | Shop at ECS Tuning | |||||
| 14 | Lock | 2 | 51718215962 | $0.69 | Shop at ECS Tuning | |||||
| 15 | Clamp | 1 | 51718204921 | $0.58 | Shop at ECS Tuning |
