Vibration damper for BMW 3 Series E46 320Ci (2003)

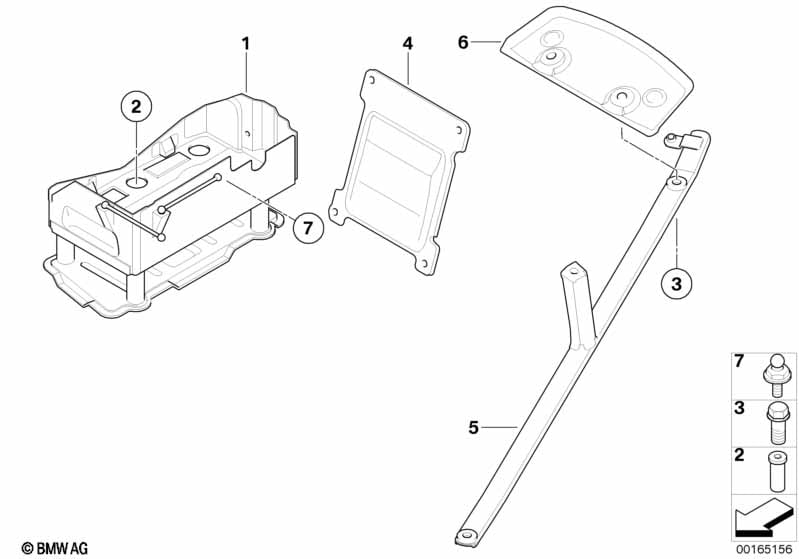

This Vibration damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration absorber | 1 | 51718236253 | $338.60 | Shop at ECS Tuning | |||||
| 02 | Tension nut | 5 | 51718265098 | $10.32 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M10X20-10.9-MK | 2 | 07119904152 | $1.16 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X16 | 8 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M10X35-Z1-10.9 | 4 | 33306760652 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Cover | 2 | 51718264147 | $62.98 | Shop at ECS Tuning | |||||
| 05 | Pull rod left | 1 | 51717002725 | $64.07 | Shop at ECS Tuning | |||||
| 05 | Pull rod right | 1 | 51717002726 | $64.07 | Shop at ECS Tuning | |||||
| 06 | Covering Lower | 2 | 51717020587 | $69.45 | Shop at ECS Tuning | |||||
| 07 | Ball pin | M8X13,5MM | 1 | 51247010221 | $2.03 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320Ci Vibration damper?
- This technical diagram illustrates the Vibration damper within the Vehicle trim group for the 3 Series E46 320Ci produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Vibration absorber (Part #51718236253).
- Which models use the hardware listed in this Vibration damper?
- The hardware and components featured in the Vibration damper are specific to the 3 Series E46 320Ci produced during 2003. These technical specifications ensure that parts like the Vibration absorber (51718236253) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vibration damper assembly?
- Each item in the Vibration damper corresponds to the numbered list below the illustration. For the 3 Series E46 320Ci, you can identify the Vibration absorber by locating its position on the schematic, which then links to the official BMW part number 51718236253 for the Vehicle trim section.
