Emblems / letterings for BMW 3 Series E46 325Ci (2006)

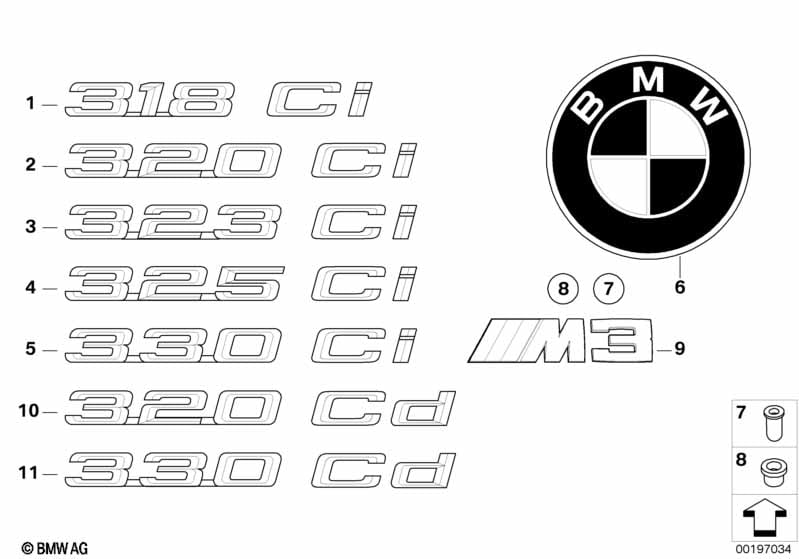

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Emblem adhered rear | - 325CI - | 1 | 51147025254 | $32.02 | Shop at ECS Tuning | ||||
| only applies to hood | ||||||||||
| 06 | Badge | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| only applies to trunk lid | ||||||||||
| 06 | Badge | D=61 | 1 | 51137019946 | $21.51 | Shop at ECS Tuning | ||||
| only applies to hood | ||||||||||
| 08 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
