Center console panel, front for BMW Z8 E52 Z8

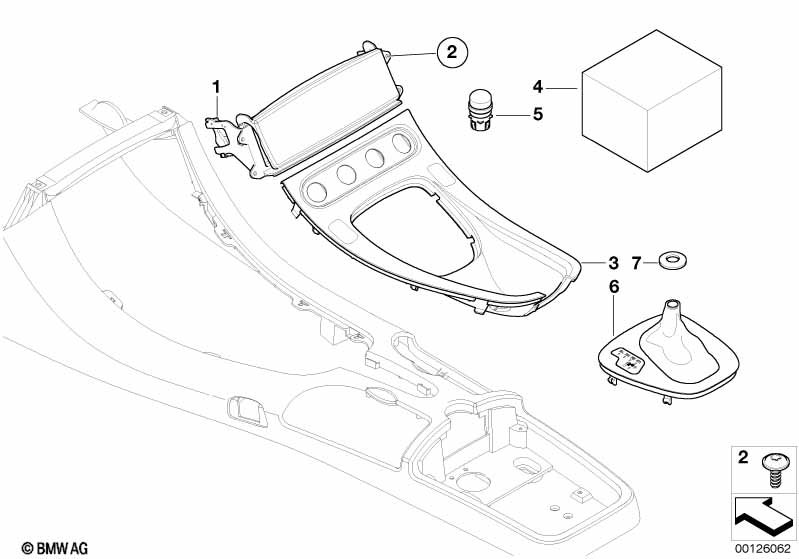

This Center console panel, front technical drawing provides a detailed breakdown of the assembly for the Z8 E52 Z8. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with topas-blau |
M364=Yes |
|||||||||
| 01 | Module carrier, center console | TOPASBLAU MET. | 1 | 51168267843 | $492.81 | Shop at ECS Tuning | ||||
| For vehicles with titan-silber |
M354=Yes |
|||||||||
| 01 | Module carrier, center console | TITANSILBER DKL | 1 | 51167004040 | $492.81 | ENDED | Shop at ECS Tuning | |||
| For vehicles with stratus metallic |
M440=Yes |
|||||||||
| 01 | Module carrier, center console | STRATUS MET | 1 | 51168267845 | $492.81 | Shop at ECS Tuning | ||||
| For vehicles with Light red or black 2 |
U314=Yes U668=Yes |
|||||||||
| 01 | Module carrier, center console | SCHWARZ II UNI | 1 | 51168234555 | $492.81 | Shop at ECS Tuning | ||||
| For vehicles with Interior surface aluminium and titan-silber |
S434A=Yes M354=Yes |
|||||||||
| 01 | Module carrier, center console | SCHWARZ II UNI | 1 | 51168234555 | $492.81 | Shop at ECS Tuning | ||||
| 02 | Sheet metal screw | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with topas-blau |
M364=Yes |
|||||||||
| 03 | Cover center console | TOPASBLAU MET | 1 | 51167025963 | $231.65 | +core | Shop at ECS Tuning | |||
| For vehicles with titan-silber |
M354=Yes |
|||||||||
| 03 | Cover center console | TITANSILBER DKL | 1 | 51167025962 | $231.65 | +core | Shop at ECS Tuning | |||
| For vehicles with stratus metallic |
M440=Yes |
|||||||||
| 03 | Cover center console | STRATUS MET | 1 | 51167025965 | $231.65 | +core | Shop at ECS Tuning | |||
| For vehicles with Light red or black 2 |
U314=Yes U668=Yes |
|||||||||
| 03 | Cover center console | SCHWARZ II UNI | 1 | 51167025961 | $231.65 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Interior surface aluminium and titan-silber |
S434A=Yes M354=Yes |
|||||||||
| 03 | Cover center console | SCHWARZ II UNI | 1 | 51167025961 | $231.65 | ENDED | Shop at ECS Tuning | |||
| 04 | Set of mounts, switches, center console | 1 | 51160152952 | $15.40 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
