Carrier instrument panel for BMW 5 Series G30 LCI 523dX (2023)

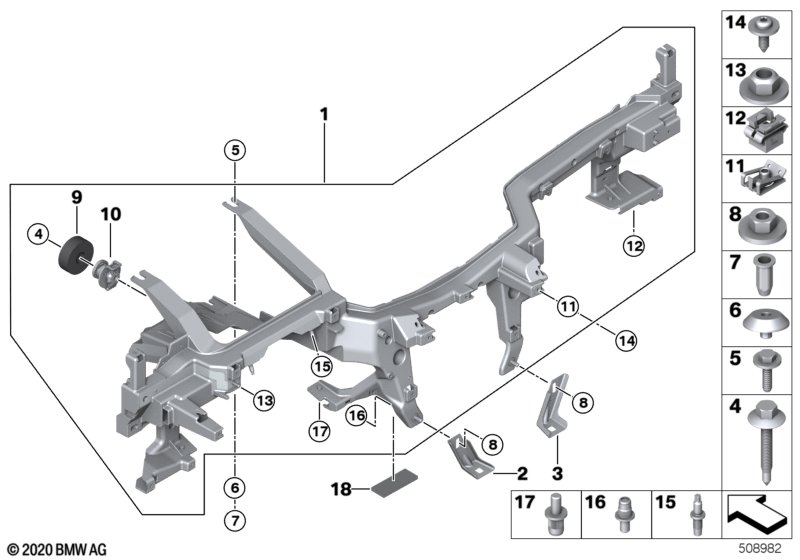

This Carrier instrument panel technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 523dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier instrument panel | 1 | 51459297646 | Shop at ECS Tuning | ||||||
| 02 | Holder for tunnel support left | 1 | 51459297649 | Shop at ECS Tuning | ||||||
| 03 | Holder for tunnel support right | 1 | 51459297650 | Shop at ECS Tuning | ||||||
| 04 | Hexagon screw with flange | M8X86 | 1 | 06846839060 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X60-8.8-ZNS3 | 2 | 22316779982 | $1.87 | Shop at ECS Tuning | ||||
| 06 | Spacer bush | 2 | 07149366930 | Shop at ECS Tuning | ||||||
| 07 | Blind rivet nut, flat headed | M12X1,5 LH | 2 | 07147135246 | $4.60 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | M8 | 8 | 07149200945 | Shop at ECS Tuning | |||||
| 09 | Alignment element | 1 | 07149321593 | Shop at ECS Tuning | ||||||
| 10 | Alignment element | 1 | 07149391156 | Shop at ECS Tuning | ||||||
| 11 | C-clip sheet metal nut | 18 | 07149319414 | Shop at ECS Tuning | ||||||
| 12 | Clip for screw cap | 4 | 07149321590 | Shop at ECS Tuning | ||||||
| 13 | Locknut | M6 ZNT | 1 | 07146982788 | $0.20 | Shop at ECS Tuning | ||||
| 14 | Combi. fillister head self-tapping screw | 18 | 07149323312 | NoS | Shop at ECS Tuning | |||||
| 15 | Threaded stud Torx Plus self-tapping | 4 | 07149314239 | Shop at ECS Tuning | ||||||
| 16 | Rivet pin | M8X14,1 | 2 | 13328506195 | $5.37 | Shop at ECS Tuning | ||||
| 17 | Rivet pin | M6X13,5 | 5 | 07147209624 | $0.91 | Shop at ECS Tuning | ||||
| 18 | Felt strip, self-adhesive | 130X40X3 MM | 1 | 54347248700 | $1.38 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
