Outside mirror for BMW 7 Series E38 740i (1995)

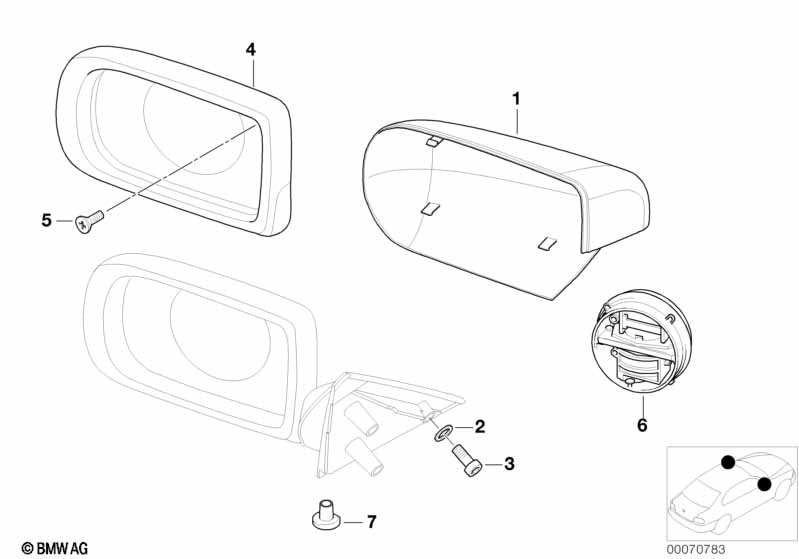

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover cap, primed, left | 1 | 51168165115 | $65.98 | Shop at ECS Tuning | |||||
| 01 | Cover cap, primed, right | 1 | 51168165116 | $65.98 | Shop at ECS Tuning | |||||
| 01 | Cover cap, painted, left | CODE - UNI/MET. | 1 | 51169067424 | $188.16 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | Cover cap, painted, right | CODE - UNI/MET. | 1 | 51169067425 | $188.16 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 02 | Washer | A6,4-ZNNIV SI | 6 | 07119904202 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M6X12 | 6 | 07119920069 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Frame left | 1 | 51168213225 | $13.87 | Shop at ECS Tuning | |||||
| 04 | Frame right | 1 | 51168213226 | $13.87 | Shop at ECS Tuning | |||||
| 05 | Countersunk head screw | M3X8 | X | 51160024588 | $0.17 | Shop at ECS Tuning | ||||
| 06 | Left drive repair kit | 1 | 67138375459 | $105.38 | Shop at ECS Tuning | |||||
| 06 | Right drive repair kit | 1 | 67138375460 | $105.38 | Shop at ECS Tuning | |||||
| For vehicles with Memory |
=Yes |
|||||||||
| 06 | Left memory drive repair kit | 1 | 67138375457 | $188.25 | Shop at ECS Tuning | |||||
| 06 | Right memory drive repair kit | 1 | 67138375458 | $188.25 | Shop at ECS Tuning | |||||
| 07 | Cover cap bottem left | 1 | 51167001037 | $1.82 | Shop at ECS Tuning | |||||
| 07 | Cover cap bottem right | 1 | 51167001038 | $1.82 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
