Underfloor coating for BMW MINI Countryman F60 Cooper

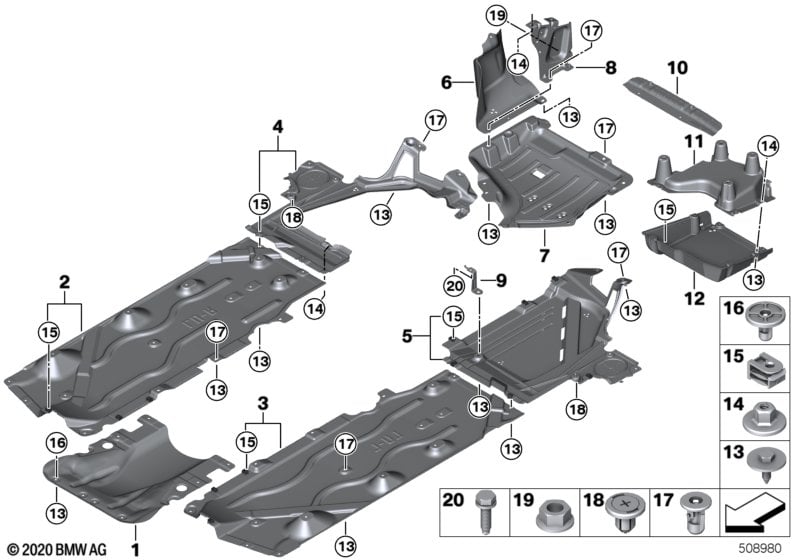

This Underfloor coating technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Underbody panelling, side on right | 1 | 51757290804 | NoS | Shop at ECS Tuning | |||||
| 03 | Underbody panelling, side on left | 1 | 51757290803 | NoS | Shop at ECS Tuning | |||||
| 04 | Undershield for tank, right | 1 | 51757386952 | Shop at ECS Tuning | ||||||
| 05 | Undershield for tank, left | 1 | 51757386951 | Shop at ECS Tuning | ||||||
| 09 | Holder, underbody paneling, tank | 1 | 51757400890 | Shop at ECS Tuning | ||||||
| 13 | Hex bolt | TS5X17 SW8 D=22 | 44 | 07149126886 | Shop at ECS Tuning | |||||
| 14 | Plastic capnut with washer | D=22MM | 11 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 15 | C-clip for plastic nut | TS5 | 17 | 07147311312 | Shop at ECS Tuning | |||||
| 16 | Expanding nut | L= 19.9MM | 2 | 07147306224 | Shop at ECS Tuning | |||||
| 17 | Expanding nut | L=18.4, DMAX=18 | 17 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Expanding rivet | 2 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 20 | Hex bolt with washer | M6X20-Z1 | 1 | 07119906246 | $0.62 | Shop at ECS Tuning |
