M Outside mirror for BMW 3 Series E46 M3 (2002)

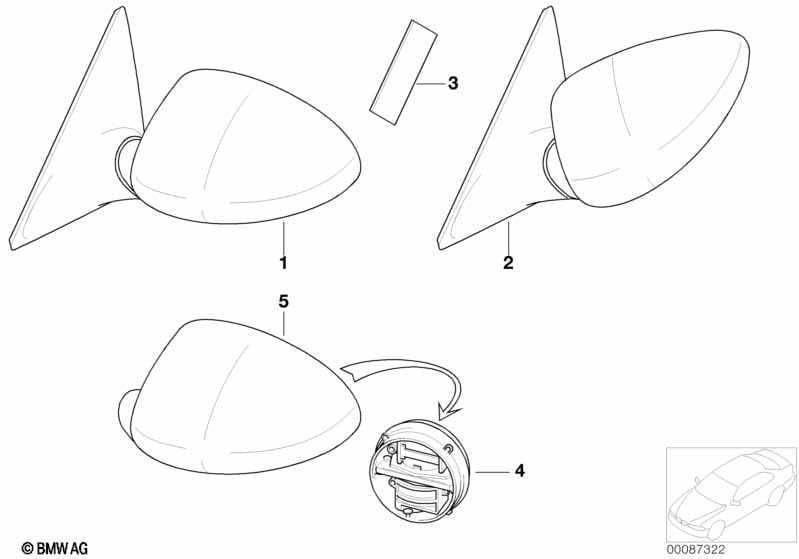

This M Outside mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left primed el.exterior heatable mirror | M | 1 | 51167901765 | $255.78 | Shop at ECS Tuning | ||||
| 01 | Right primed el.exter.heatable mirror | M | 1 | 51167901766 | $255.78 | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror and Seat adjuster, electric, with memory |
S313A=No S459A=Yes |
|||||||||
| 01 | Right primed el.exter.heatable mirror | M | 1 | 51167893468 | $276.02 | Shop at ECS Tuning | ||||
| 01 | Left primed el.exterior heatable mirror | M | 1 | 51167893597 | $276.02 | Shop at ECS Tuning | ||||
| For vehicles with Fold-in outside mirror and Seat adjuster, electric, with memory |
S313A=Yes S459A=Yes |
|||||||||
| 02 | Left primed el.exterior heatable mirror | M | 1 | 51167893567 | $422.53 | ENDED | Shop at ECS Tuning | |||
| 02 | Right primed el.exter.heatable mirror | M | 1 | 51167893568 | $422.53 | ENDED | Shop at ECS Tuning | |||
| 03 | Adhesive tape | 3000MM | 1 | 51711976999 | $28.02 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=Yes |
|||||||||
| 04 | Actuator left | 1 | 51167895275 | $195.38 | Shop at ECS Tuning | |||||
| 04 | Actuator right | 1 | 51167895276 | $195.38 | Shop at ECS Tuning | |||||
| For vehicles with Seat adjuster, electric, with memory |
S459A=No |
|||||||||
| 04 | Actuator left | 1 | 51167895273 | $195.38 | +core | Shop at ECS Tuning | ||||
| 04 | Actuator right | 1 | 51167895274 | $195.38 | +core | Shop at ECS Tuning | ||||

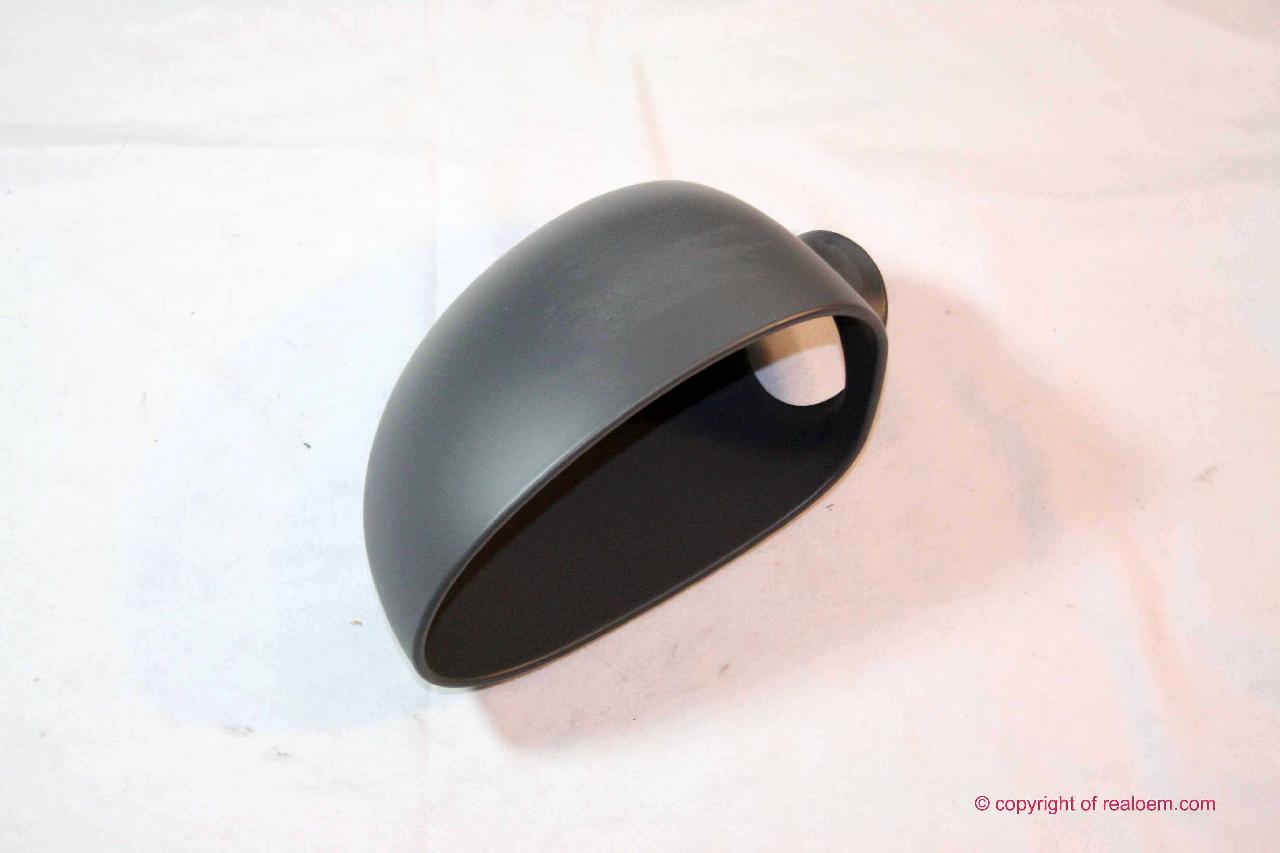

| 05 | Covering primend left | 1 | 51167895219 | $126.63 | +core | Shop at ECS Tuning | ||||
| 05 | Covering primend right | 1 | 51167895220 | $126.63 | +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
