Reinforcement, body for BMW MINI Countryman F60 Cooper (2020)

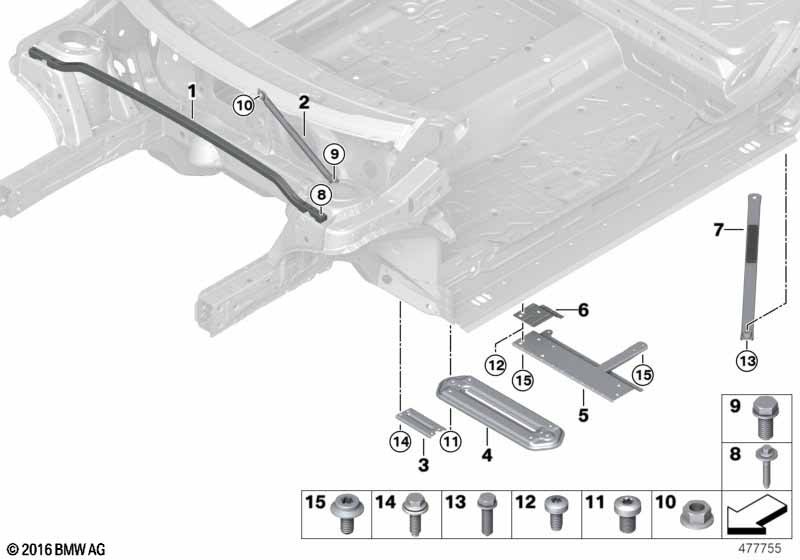

This Reinforcement, body technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Strut brace | 1 | 51617414178 | Shop at ECS Tuning | ||||||
| 02 | Strut tower brace, left | 1 | 51617327753 | Shop at ECS Tuning | ||||||
| 02 | Strut tower brace, right | 1 | 51617327754 | Shop at ECS Tuning | ||||||
| 04 | Cross-brace, tunnel, front | 1 | 51617336753 | Shop at ECS Tuning | ||||||
| 05 | Connecting member, rear tunnel | 1 | 51717497302 | Shop at ECS Tuning | ||||||
| 06 | Protective plate for fuel tank | 1 | 51717468799 | Shop at ECS Tuning | ||||||
| 07 | Torsion strut rear | 1 | 51617407055 | Shop at ECS Tuning | ||||||
| 07 | Torsion link, rear right | 1 | 51617407056 | Shop at ECS Tuning | ||||||
| 08 | Hex head screw with washer | M8X45 | 4 | 61258635668 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M10X25-10.9ZNS3 | 2 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Flange nut | M10-10-ZNS3 | 2 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Countersunk screw | M10X18-10.9-ZNS | 6 | 07119908082 | Shop at ECS Tuning | |||||
| 12 | Countersunk screw | M8X16 | 2 | 07119907270 | Shop at ECS Tuning | |||||
| 13 | Screw | M12X1,5X48 | 2 | 07119908596 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M8X20-PC-ZNS3 | 4 | 51649907859 | Shop at ECS Tuning | |||||
| 15 | Torx screw | M8X18-10.9 ZNS3 | 6 | 33326764505 | $0.80 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 Cooper Reinforcement, body?
- This technical diagram illustrates the Reinforcement, body within the Vehicle trim group for the MINI Countryman F60 Cooper produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Strut brace (Part #51617414178).
- Which models use the hardware listed in this Reinforcement, body?
- The hardware and components featured in the Reinforcement, body are specific to the MINI Countryman F60 Cooper produced during 2020. These technical specifications ensure that parts like the Strut brace (51617414178) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reinforcement, body assembly?
- Each item in the Reinforcement, body corresponds to the numbered list below the illustration. For the MINI Countryman F60 Cooper, you can identify the Strut brace by locating its position on the schematic, which then links to the official BMW part number 51617414178 for the Vehicle trim section.
