Front panel for BMW MINI Countryman F60 One (2020)

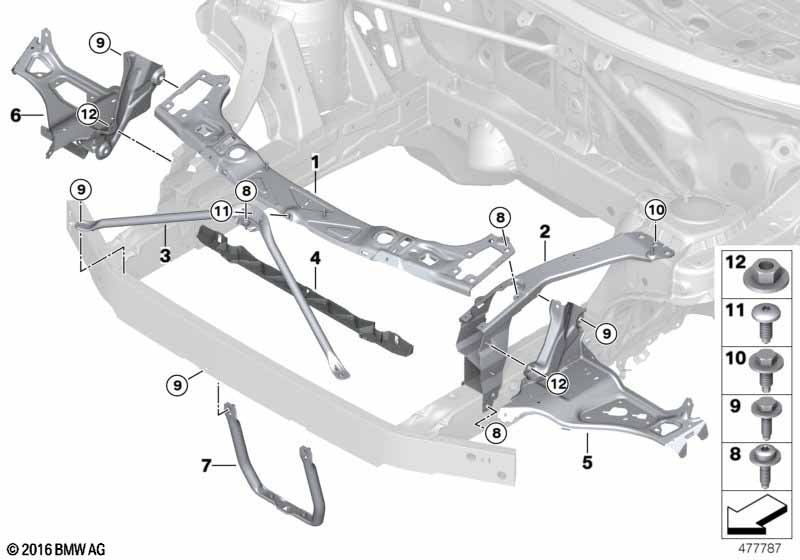

This Front panel technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crosslink, front | 1 | 51647434544 | Shop at ECS Tuning | ||||||
| 02 | Support left | 1 | 51647426633 | Shop at ECS Tuning | ||||||
| 02 | Support right | 1 | 51647426634 | Shop at ECS Tuning | ||||||
| 03 | V-brace for front panel | US | 1 | 51647434550 | Shop at ECS Tuning | |||||
| 04 | Seal, radiator, upper | 1 | 51647347596 | Shop at ECS Tuning | ||||||
| 05 | Mount for headlight, left | 1 | 51647378745 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Clip | 1 | 51117490268 | Shop at ECS Tuning | ||||||
| 06 | Mount for headlight, right | 1 | 51647378746 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Clip | 1 | 51117490268 | Shop at ECS Tuning | ||||||
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 07 | U-brace | 1 | 51647411976 | Shop at ECS Tuning | ||||||
| 08 | Countersunk screw | M6X20-PCU2-10.9 | 12 | 07119908698 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M6X20 | 4 | 07119908004 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X20-8.8 | 2 | 07119907898 | Shop at ECS Tuning | |||||
| 11 | Combi oval-head machine screw | ISA M8X20 | 1 | 07147234925 | Shop at ECS Tuning | |||||
| 12 | Hex nut | BM6-8-ZNNIV SI | 2 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
