Trim panel dashboard II for BMW Z8 E52 Z8 (2003)

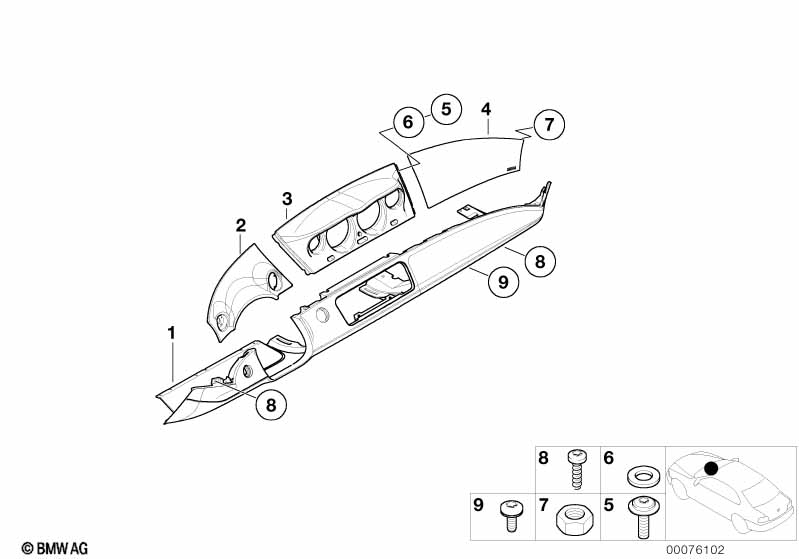

This Trim panel dashboard II technical drawing provides a detailed breakdown of the assembly for the Z8 E52 Z8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Black |
SW=Yes |
|||||||||
| 01 | I-panel, bottom, leather | P1SW SCHWARZ | 1 | 51458242292 | $1411.74 | +core | Shop at ECS Tuning | |||
| For vehicles with sport-rot |
SP=Yes |
|||||||||
| 01 | I-panel, bottom, leather | P1SP SPORTROT | 1 | 51458263577 | $1411.74 | +core | Shop at ECS Tuning | |||
| For vehicles with crema/schwarz or crema |
CS=Yes CT=Yes |
|||||||||
| 01 | I-panel, bottom, leather | P1CS/P1CT CREMA | 1 | 51458267970 | $1386.41 | Shop at ECS Tuning | ||||
| For vehicles with stratus metallic |
M440=Yes |
|||||||||
| 02 | Cover, dashboard, left | STRATUS MET | 1 | 51457026262 | $186.37 | +core | Shop at ECS Tuning | |||
| For vehicles with titan-silber |
M354=Yes |
|||||||||
| 02 | Cover, dashboard, left | TITANSILBER DKL | 1 | 51457026259 | $161.86 | Shop at ECS Tuning | ||||
| For vehicles with topas-blau |
M364=Yes |
|||||||||
| 02 | Cover, dashboard, left | TOPASBLAU MET | 1 | 51457026261 | $159.59 | +core | Shop at ECS Tuning | |||
| For vehicles with Interior surface aluminium and titan-silber |
S434A=Yes M354=Yes |
|||||||||
| 02 | Cover, dashboard, left | SCHWARZ II UNI | 1 | 51457026258 | $161.86 | Shop at ECS Tuning | ||||
| For vehicles with Light red or black 2 |
U314=Yes U668=Yes |
|||||||||
| 02 | Cover, dashboard, left | SCHWARZ II UNI | 1 | 51457026258 | $161.86 | Shop at ECS Tuning | ||||
| For vehicles with stratus metallic |
M440=Yes |
|||||||||
| 03 | Instruments combination covering | STRATUS MET | 1 | 51458267990 | $361.58 | +core | Shop at ECS Tuning | |||
| For vehicles with titan-silber |
M354=Yes |
|||||||||
| 03 | Instruments combination covering | TITANSILBER DKL | 1 | 51457004052 | $358.20 | Shop at ECS Tuning | ||||
| For vehicles with topas-blau |
M364=Yes |
|||||||||
| 03 | Instruments combination covering | TOPASBLAU MET. | 1 | 51458267986 | $361.58 | +core | Shop at ECS Tuning | |||
| For vehicles with Interior surface aluminium and titan-silber |
S434A=Yes M354=Yes |
|||||||||
| 03 | Instruments combination covering | SCHWARZ II UNI | 1 | 51458242318 | $358.20 | Shop at ECS Tuning | ||||
| For vehicles with Light red or black 2 |
U314=Yes U668=Yes |
|||||||||
| 03 | Instruments combination covering | SCHWARZ II UNI | 1 | 51458242318 | $358.20 | Shop at ECS Tuning | ||||
| For vehicles with stratus metallic |
M440=Yes |
|||||||||
| 04 | Airbag dashboard lid | STRATUS MET | 1 | 51457000593 | $214.97 | +core | Shop at ECS Tuning | |||
| For vehicles with titan-silber |
M354=Yes |
|||||||||
| 04 | Airbag dashboard lid | TITANSILBER DKL | 1 | 51457004379 | $194.73 | Shop at ECS Tuning | ||||
| For vehicles with topas-blau |
M364=Yes |
|||||||||
| 04 | Airbag dashboard lid | TOPASBLAU MET. | 1 | 51457000591 | $214.97 | Shop at ECS Tuning | ||||
| For vehicles with Interior surface aluminium and titan-silber |
S434A=Yes M354=Yes |
|||||||||
| 04 | Airbag dashboard lid | SCHWARZ II UNI | 1 | 51458242317 | $194.73 | Shop at ECS Tuning | ||||
| For vehicles with Light red or black 2 |
U314=Yes U668=Yes |
|||||||||
| 04 | Airbag dashboard lid | SCHWARZ II UNI | 1 | 51458242317 | $194.73 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ISA ST4.2X13 | 4 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Washer | 4 | 62117000681 | $0.42 | Shop at ECS Tuning | |||||
| 07 | Hex nut with plate | M8-ZNS3 | 2 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 08 | Sheet metal screw | ST4,2X19-U2-C-H | X | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt with washer | M6X12 | 1 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
